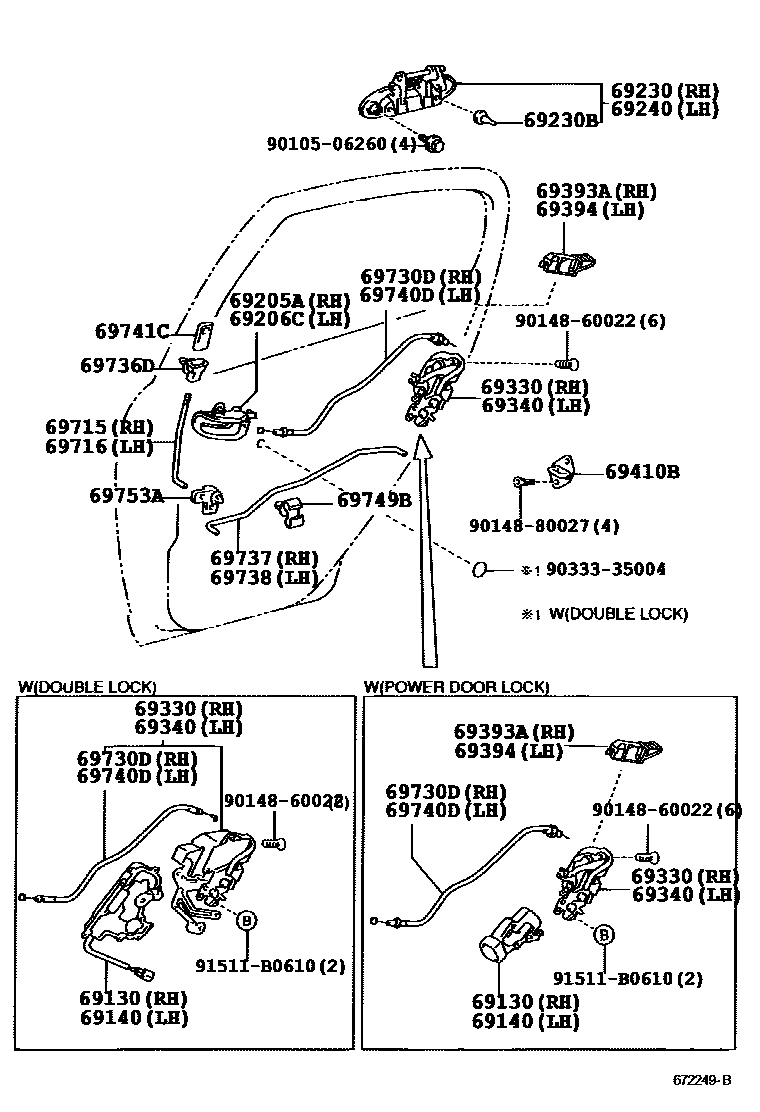

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SILVER PAINTED,SILVER,TRIM10,11
SILVER PAINTED,SILVER,TRIM10,11,17
UNPAINTED,DK.GRAY,TRIM10,11,17,18
main69205-0D060-B1iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302
DK.GRAY,TRIM10,11,17,18,19
main69205-0D060-B1iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302-200401
UNPAINTED,DK.GRAY,TRIM10,11,17
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SILVER PAINTED,SILVER,TRIM10,11
SILVER PAINTED,SILVER,TRIM10,11,17
UNPAINTED,DK.GRAY,TRIM10,11,17
main69206-0D060-B1iSCP1#..FRP..5D..TRSTD..5F;NLP10..FRP..LHD..5D..TRSTD;SCP10..FRP..LHD..5D..TRSTD..5FS200302
DK.GRAY,TRIM10,11,17,18,19
UNPAINTED,DK.GRAY,TRIM10,11,17,18
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
WHITE,068
SILVER ME.,199
BLACK MC.,209
SUPER RED 5,3P0
RED M.M.,3P1
YELLOW M.M.,580
LT.GREEN MC.,6Q2
DARK GREEN MC.,6R4
STRONG BLUE M.,8B6
DK.BLUE MC.,8P4
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69715LINK, REAR DOOR LOCKING CONTROL, NO.2 RH
69716LINK, REAR DOOR LOCKING CONTROL, NO.2 LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
W(POWER DOOR LOCK)
69736DGUIDE, REAR DOOR LOCKING LINK
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
W(POWER DOOR LOCK)
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69753ABELLCRANK, DOOR LOCK CONTROL
9010506260
main90105-06260
9014860022
main90148-60022
9014880027
main90148-80027
9033335004
main90333-35004
91511B0610
main91511-B0610
27 parts on this diagram · 1 diagram in section
