EPC Data

SIDE MEMBER

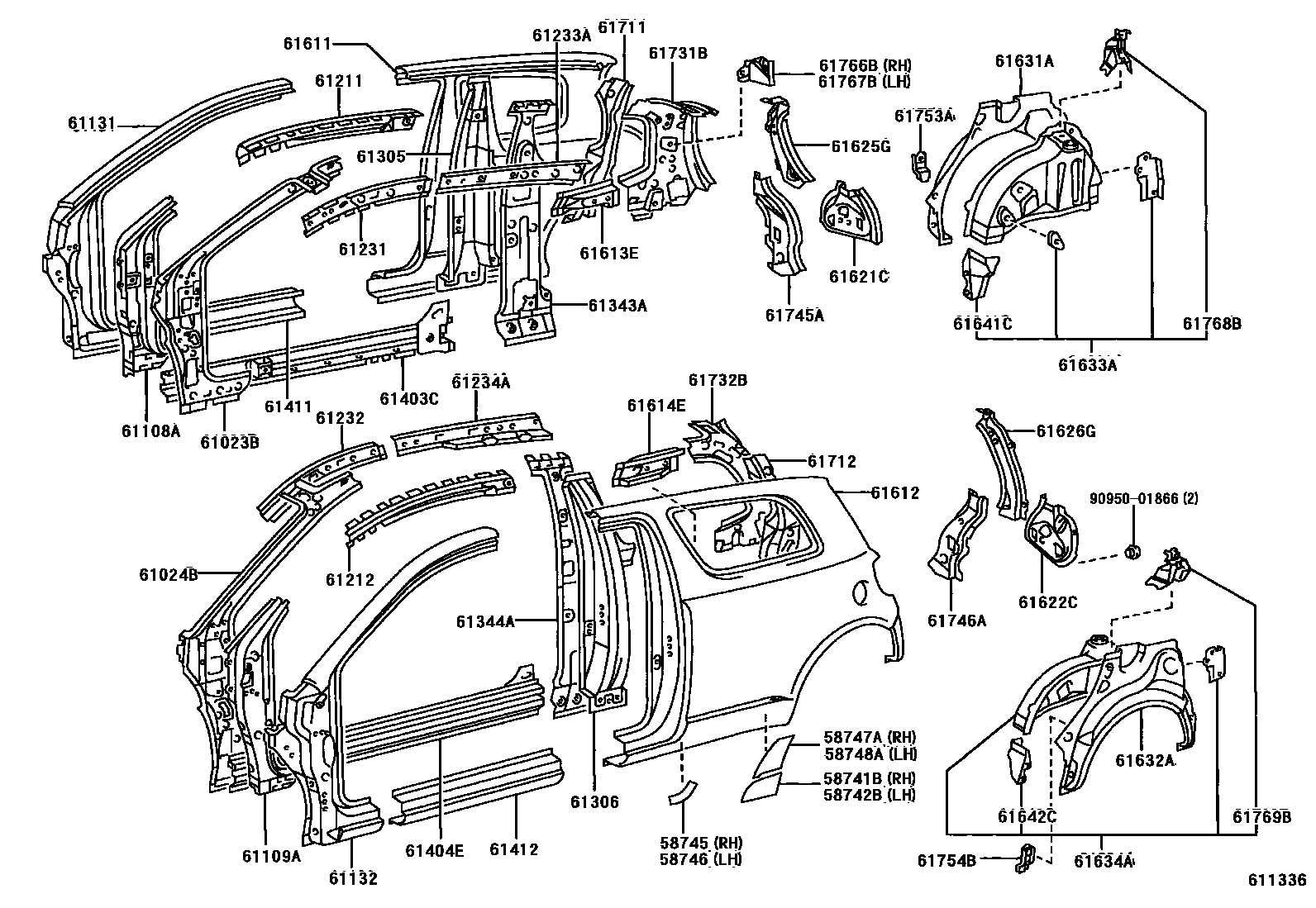

Parts diagram
58741BPROTECTOR, QUARTER PANEL, RH
main58741-0D010i200112-200302
main58741-0D020i200112-200302
main58741-52012i200101-200112
main58741-52022i200101-200112
58742BPROTECTOR, QUARTER PANEL, LH
main58742-0D010i200112-200302
main58742-0D020i200112-200302
main58742-52012i200101-200112
main58742-52022i200101-200112
58745PROTECTOR, QUARTER PANEL, FRONT RH
main58745-0D010i200112-200302
main58745-52010i200101-200112
58746PROTECTOR, QUARTER PANEL, FRONT LH
main58746-0D010i200112-200302
main58746-52010i200101-200112
58747APROTECTOR, QUARTER PANEL, REAR RH
main58747-0D010i200112-200302
main58747-0D020i200112-200302
main58747-52012i200101-200112
main58747-52022i200101-200112
58748APROTECTOR, QUARTER PANEL, REAR LH
main58748-0D010i200112-200302
main58748-0D020i200112-200302
main58748-52012i200101-200112
main58748-52022i200101-200112
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
main61023-0D010i200101-200302
sub61023-0D051
main61023-0D051i200302
sub61023-52011
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
main61024-0D010i200101-200302
sub61024-0D051
main61024-0D051i200302
sub61024-52011
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-0D010i200101-200302
sub61108-52011
main61108-52100i200302
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-0D010i200101-200302
sub61109-52011
main61109-52120i200302
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-0D010i200101-200302
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-0D010i200101-200302
61211RAIL, ROOF SIDE, OUTER RH
main61201-52050i200302
main61201-52060i200302
main61211-0D010i200101-200302
main61211-0D020i200101-200302
61212RAIL, ROOF SIDE, OUTER LH
main61202-52050i200302
main61202-52060i200302
main61212-0D010i200101-200302
main61212-0D020i200101-200302
61231RAIL, ROOF SIDE, INNER RH
main61231-0D020i200101-200302
main61231-0D040i200101-200302
main61301-0D010i200302
sub61231-52250
sub61233-52140
main61301-0D020i200302
W(MOON ROOF)
sub61231-52250
sub61233-52180
main61301-0D030i200302
sub61231-52250
sub61233-52120
main61301-0D040i200302
W(MOON ROOF)
sub61231-52250
sub61233-52200
61232RAIL, ROOF SIDE, INNER LH
main61232-0D020i200101-200302
main61232-0D040i200101-200302
main61302-0D010i200302
sub61232-52260
sub61234-52140
main61302-0D020i200302
W(MOON ROOF)
sub61232-52260
sub61234-52180
main61302-0D030i200302
sub61232-52260
sub61234-52120
main61302-0D040i200302
W(MOON ROOF)
sub61232-52260
sub61234-52200
61233ARAIL, ROOF SIDE, INNER NO.2 RH
main61233-0D020i200101-200302
61234ARAIL, ROOF SIDE, INNER NO.2 LH
main61234-0D020i200101-200302
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
main61305-0D061i200302
main61305-0D071i200302
W(SRS SIDE AIR BAG)
main61305-0D081i200302
main61305-0D091i200302
W(SRS SIDE AIR BAG)
main61305-52011i200101-200302
sub61305-52911
main61305-52021i200101-200302
main61305-52030i200101-200302
W(SRS SIDE AIR BAG)
sub61305-52912
main61305-52040i200101-200302
W(SRS SIDE AIR BAG)
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
main61306-0D061i200302
main61306-0D071i200302
W(SRS SIDE AIR BAG)
main61306-0D081i200302
main61306-0D091i200302
W(SRS SIDE AIR BAG)
main61306-52011i200101-200302
sub61306-52912
main61306-52021i200101-200302
main61306-52030i200101-200302
W(SRS SIDE AIR BAG)
sub61306-52913
main61306-52040i200101-200302
W(SRS SIDE AIR BAG)
61343APILLAR, CENTER BODY, INNER RH
main61343-0D900i200101-200302
sub61343-52901
main61343-0D901i200101-200302
sub61343-52900
61344APILLAR, CENTER BODY, INNER LH
main61344-0D900i200101-200302
sub61344-52901
main61344-0D901i200101-200302
sub61344-52900
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
main61403-0D010i200101-200302
main61403-0D020i200101-200302
sub61403-52010
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
main61404-0D010i200101-200302
main61404-0D020i200101-200302
sub61404-52010
61411PANEL, ROCKER, OUTER RH
main61411-0D010i200101-200302
main61411-0D020i200101-200302
61412PANEL, ROCKER, OUTER LH
main61412-0D010i200101-200302
main61412-0D020i200101-200302
61611PANEL, QUARTER, RH
main61601-0D010i200101-200302
main61611-0D010i200101-200302
61612PANEL, QUARTER, LH
main61602-0D010i200101-200302
main61602-0D020i200101-200302
61613EPANEL, QUARTER, INNER RH
main61613-0D010i200302
main61613-52010i200101-200302
61614EPANEL, QUARTER, INNER LH
main61614-0D010i200302
main61614-52010i200101-200302
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-0D010i200101-200302
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-0D010i200101-200302
61625GEXTENSION, QUARTER PANEL, REAR RH
main61625-0D010i200101-200404
sub61625-52010
main61625-0D010i200404
(L)
sub61625-52010
main61625-52010i200404
(J)
61626GEXTENSION, QUARTER PANEL, REAR LH
main61626-0D010i200101-200404
sub61626-52010
main61626-0D010i200404
(L)
sub61626-52010
main61626-52010i200404
(J)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-0D010i200101-200302
sub61631-52010
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-0D010i200101-200302
sub61632-52010
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-0D900i200101-200302
sub61607-0D901
main61607-0D901i200302
sub61607-52914
sub90333-25003
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-0D900i200101-200302
sub61608-52912
main61608-0D901i200302
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-0D010i200101-200302
sub61641-52010
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-0D010i200101-200302
sub61642-52010
61711PANEL, ROOF SIDE, OUTER RH
main61711-0D040i200302
main61711-0D050i200302
main61711-52010i200101-200212
sub61711-52011
main61711-52011i200212-200302
main61711-52020i200101-200302
61712PANEL, ROOF SIDE, OUTER LH
main61712-0D080i200302
main61712-52010i200101-200301
sub61712-52011
main61712-52011i200301-200302
main61712-52020i200101-200302
61731BPANEL, ROOF SIDE, INNER RH
main61731-0D030i200302
sub61731-52021
main61731-0D040i200302
sub61731-52011
main61731-52010i200101-200208
sub61731-52011
main61731-52011i200208-200302
main61731-52020i200101-200208
sub61731-52021
main61731-52021i200208-200302
61732BPANEL, ROOF SIDE, INNER LH
main61732-0D030i200302
sub61732-52180
main61732-0D040i200302
sub61732-52150
main61732-52010i200101-200208
sub61732-52011
main61732-52011i200208-200302
main61732-52020i200101-200208
sub61732-52021
main61732-52021i200208-200302
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
main61745-0D010i200101-200302
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
main61746-0D010i200101-200302
61753ARETAINER, QUARTER TRIM, LOWER
main61753-10050i200101-200302
61754BRETAINER, QUARTER TRIM, LOWER LH
main61754-10040i200101-200302
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
main61766-52010i200101-200302
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
main61704-0D010i200302
main61704-0D020i200302
main61767-52010i200101-200302
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
main61768-52100i200101-200302
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
main61769-52100i200101-200302
9095001866
main90950-01866

53 parts on this diagram · 6 diagrams in section
