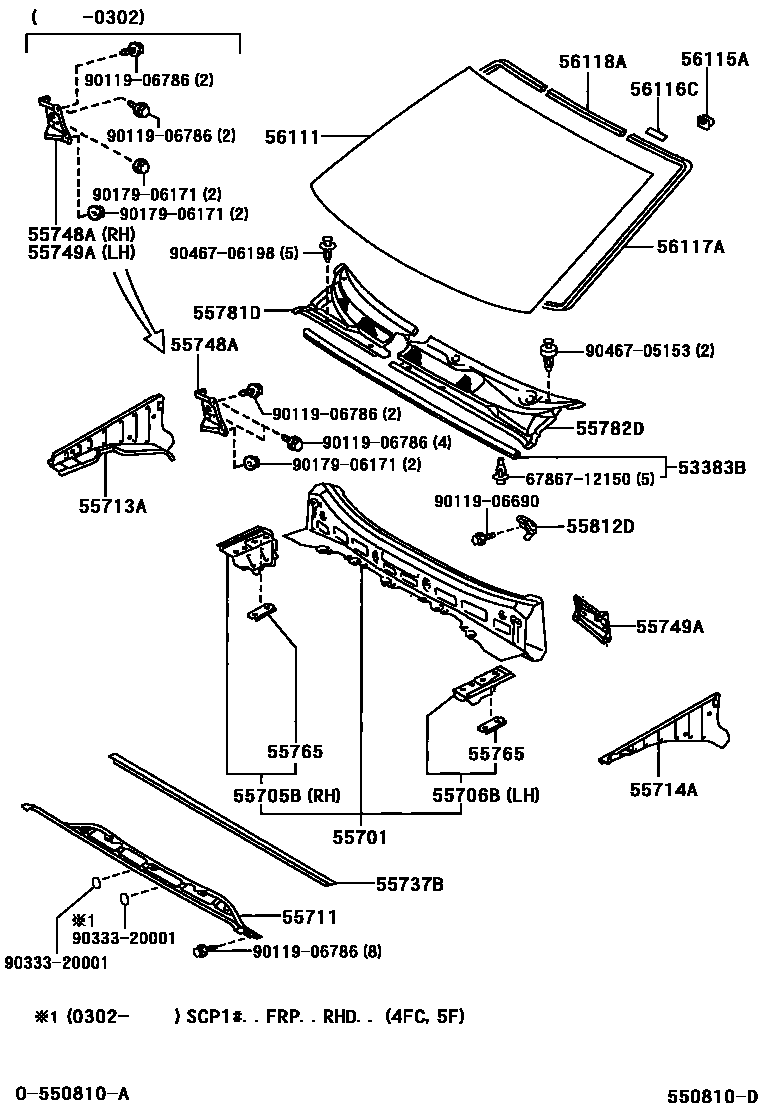

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
COLD SPEC
55782DLOUVER, COWL TOP VENTILATOR, LH
COLD SPEC
55812DBRACKET, COWL VENTILATOR
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=3210
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
sub56117-74010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906690
main90119-06690
9011906786
main90119-06786
9017906171
main90179-06171
9033320001
main90333-20001
9046705153
main90467-05153
9046706198
main90467-06198
26 parts on this diagram · 1 diagram in section
