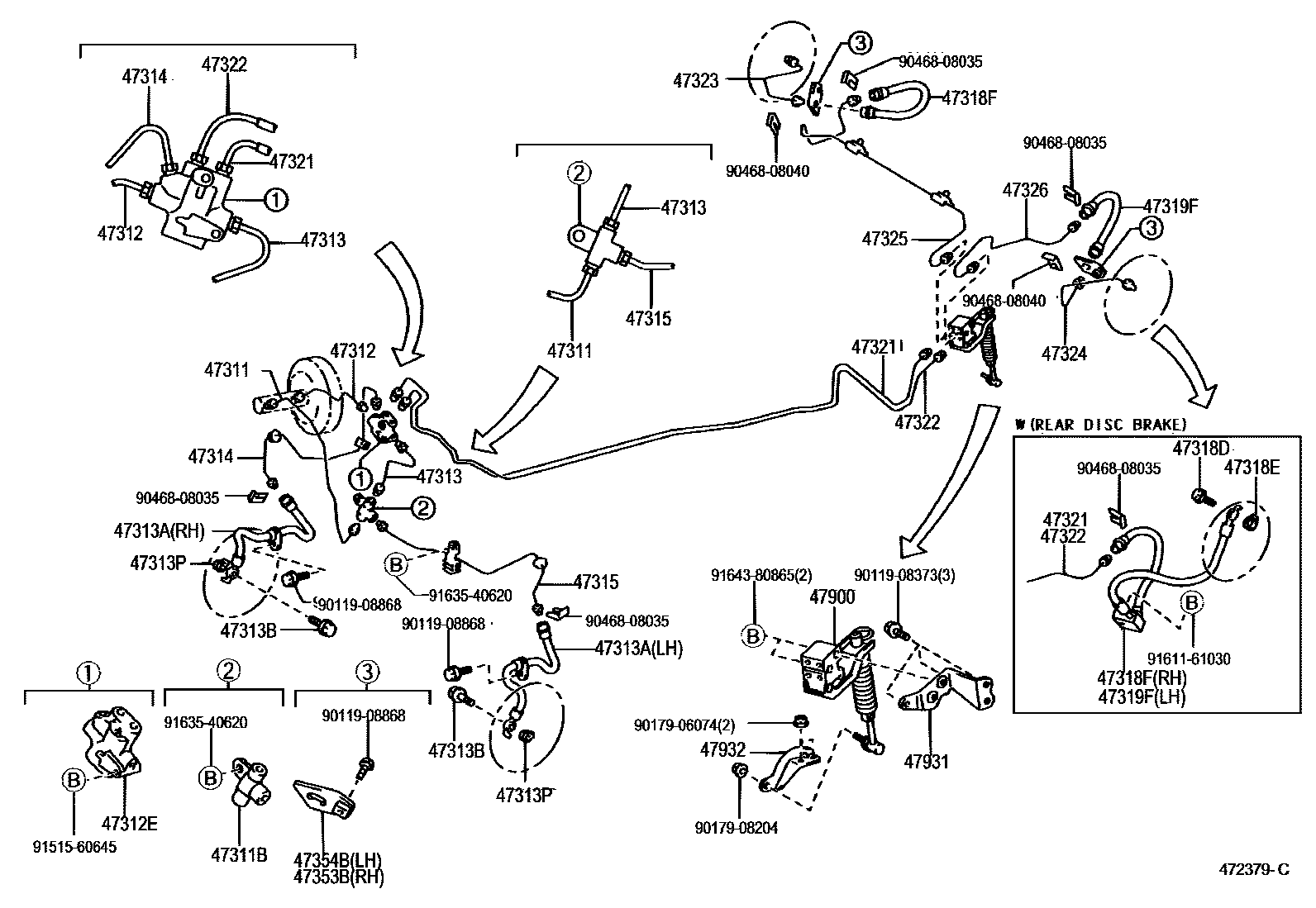

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-0D010iSCP1#..RHD200101-200302

W(ABS)

main47311-0D021iSCP10..RHD200101-200205

sub47311-0D110

main47311-0D030iSCP1#..LHD200101-200302

W(ABS)

main47311-0D041iSCP1#..LHD200101-200302

main47311-0D110iSCP1#..RHD200205-200302

main47311-0D120iNLP10,SCP1#..FRP..RHD200302

main47311-0D140iNLP10,SCP1#..FRP..LHD200302

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10713iNLP10..RHD;SCP10..RHD..5FS;SCP12..RHD..TRSTD200101-200302

W(ABS)

main90413-10786iSCP1#..RHD200101-200302

47312TUBE, FRONT BRAKE, NO.2

main47312-0D010iNLP10..RHD;SCP10..RHD..5FS;SCP12..RHD..TRSTD200101-200302

W(ABS)

main47312-0D020iSCP1#..LHD200101-200302

W(ABS)

main47312-0D031iSCP1#..LHD200101-200302

main47312-0D110iNLP10,SCP1#..FRP..LHD200302

main47312-52111iSCP1#..RHD200101-200302

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10294iSCP1#200101-200302

main90904-12082iSCP1#200101-200302

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-0D011iSCP1#..RHD200101-200302

W(ABS)

main47313-0D050iNLP10,SCP1#..FRP..RHD200302

main47313-52051iSCP1#..RHD200101-200302

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94203iNLP10,SCP1#..FRP200302

LH

sub90947-02A46

main90080-94204iNLP10,SCP1#..FRP200302

RH

sub90947-02A45

main90947-02A45iSCP1#200101-200302

RH

main90947-02A46iSCP1#200101-200302

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iSCP1#200101-200302

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iSCP1#200101-200302

47314TUBE, FRONT BRAKE, NO.4

main47314-0D011iSCP1#..RHD200101-200302

main47314-0D020iSCP1#..LHD200101-200210

W(ABS)

sub47314-0D120

main47314-0D031iSCP1#..LHD200101-200302

main47314-0D100iNLP10,SCP1#..FRP..RHD200302

main47314-0D120iNLP10..LHD;SCP10..TSGS;SCP10..LHD..5FS;SCP12..LHD..TRSTD200210-200302

W(ABS)

main47314-52051iSCP1#..RHD200101-200302

W(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-0D010iSCP1#200101-200302

W(ABS)

main47315-0D021iSCP1#..RHD200101-200302

main47315-0D031iSCP1#..LHD200101-200302

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iSCP1#200101-200302

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94205iNLP10,SCP1#..FRP200302

sub90947-02A47

main90947-02A47iSCP1#200101-200302

main90947-02C81iSCP1#200101-200302

W(REAR DISC BRAKE)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94205iNLP10,SCP1#..FRP200302

sub90947-02A47

main90947-02A47iSCP1#200101-200302

main90947-02C82iSCP1#200101-200302

W(REAR DISC BRAKE)

47321TUBE, REAR BRAKE, NO.1

main47321-0D012iSCP12..FRP..SOL;SCP10..FRP..(SOL,TRSTD)..5F200101-200302

W(ABS)

main47321-0D021iSCP1#200101-200302

main47321-0D110iNLP10..FRP200302

47322TUBE, REAR BRAKE, NO.2

main47322-0D012iSCP1#200101-200302

W(ABS)

main47322-0D021iSCP1#200101-200302

main47322-0D030iNLP10..FRP200302

47323TUBE, REAR BRAKE, NO.3

main47323-0D060iNLP10,SCP1#..FRP200207-200302

main47323-52042iSCP10200101-200202

sub47323-52050

main47323-52050iSCP1#200202-200207

sub47323-0D060

47324TUBE, REAR BRAKE, NO.4

main47324-0D050iNLP10,SCP1#..FRP200207-200302

main47324-52042iSCP10200101-200202

sub47324-52050

main47324-52050iSCP1#200202-200207

sub47324-0D050

47325TUBE, REAR BRAKE, NO.5

main47325-0D012iSCP1#200101-200302

47326TUBE, REAR BRAKE, NO.6

main47326-0D012iSCP1#200101-200302

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-52010iSCP1#200101-200302

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-52010iSCP1#200101-200302

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-0D010iSCP10200101-200102

sub47900-0D020

main47900-0D020iSCP1#200102-200302

47931BRACKET, LOAD SENSING VALVE

main47931-52020iSCP1#200101-200302

47932BRACKET, LOAD SENSING VALVE, NO.2

main47932-52020iSCP1#200101-200302

9011908373

main90119-08373

9011908868

main90119-08868

9017906074

main90179-06074

9017908204

main90179-08204

9046808035

main90468-08035

9046808040

main90468-08040

9151560645

main91515-60645

9161161030

main91611-61030

9163540620

main91635-40620

9164380865

main91643-80865
