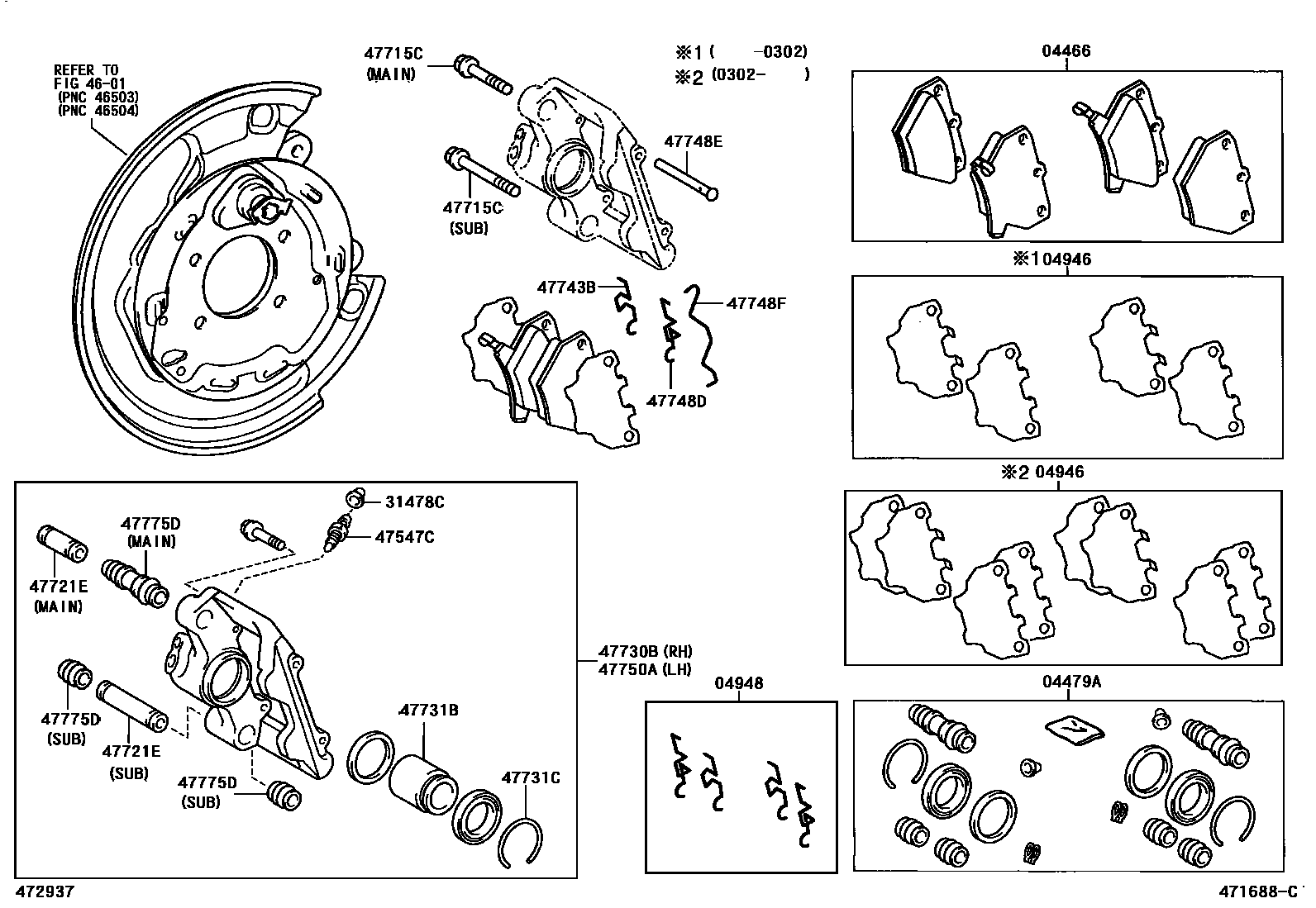

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52030iSCP10200101-200106

MARK AK PA511H

main04466-52040iSCP1#200106-200302

MARK AK PA511H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iSCP1#200101-200302

main04946-52010iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iSCP1#200101-200302

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSCP1#200101-200302

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

MAIN

main47715-20040iSCP1#200101-200302

SUB

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053iSCP1#200101-200302

SUB

main90389-10054iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

MAIN

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-52040iSCP1#200101-200302

main47730-52041iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

47731BPISTON, REAR DISC BRAKE

main47731-52020iSCP1#200101-200302

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-37001iSCP1#200101-200302

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030iSCP1#200101-200302

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040iSCP1#200101-200302

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021iSCP1#200101-200302

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025iSCP1#200101-200302

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-52040iSCP1#200101-200302

main47750-52041iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020iSCP1#200101-200302

MAIN

main47775-42010iNLP10,SCP1#..FRP..(SOL,TRSTD)200101-200302

SUB

18 parts on this diagram · 1 diagram in section
