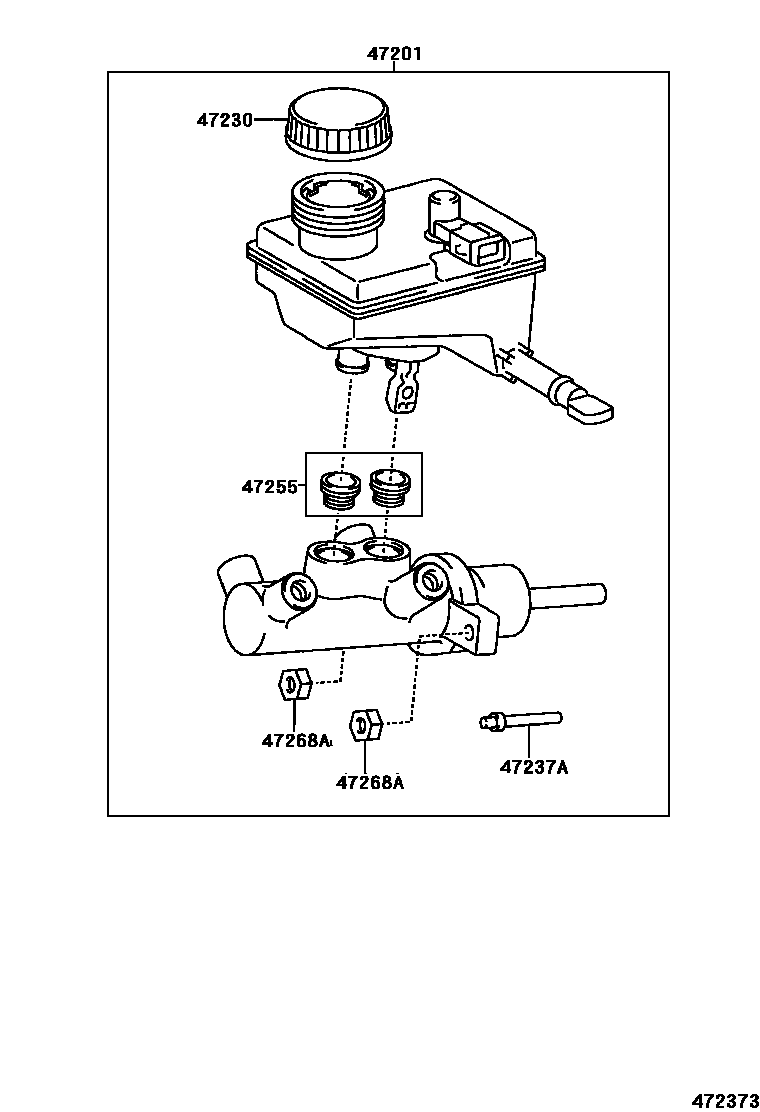

BRAKE MASTER CYLINDER

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09010iSCP1#..LHD200101-200302

sub47201-09340

main47201-09020iSCP1#..LHD200101-200302

W(ABS)

sub47201-09350

main47201-09030iSCP1#..RHD200101-200302

sub47201-09360

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iSCP1#200101-200302

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-0D010iSCP1#200101-200302

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09010iSCP1#200101-200302

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iSCP1#200101-200302

5 parts on this diagram · 1 diagram in section
