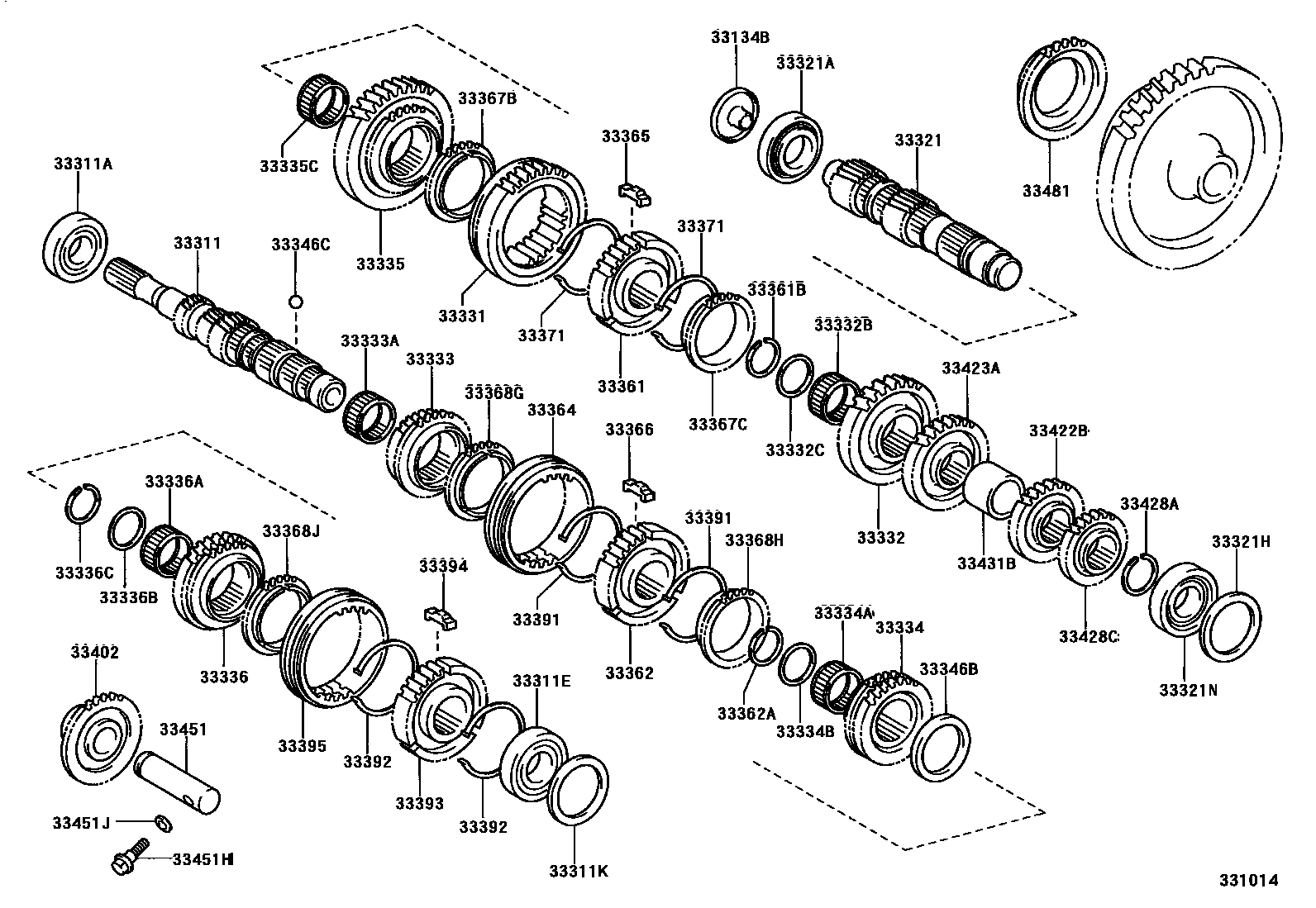

TRANSMISSION GEAR (MTM)
33134BCOVER, OUTPUT SHAFT(MTM)
33311SHAFT, INPUT
(L)
33311ABEARING (FOR INPUT SHAFT FRONT)
C153
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
C153
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
T=2.30,MARK R
T=2.35,MARK S
T=2.40,MARK T
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
(J)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.55,MARK A
T=1.60,MARK B
T=1.65,MARK C
T=1.70,MARK D
T=1.75,MARK E
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
33321NBEARING (FOR OUTPUT SHAFT FRONT)
C153
33331GEAR, REVERSE
(L)
(J)
33332GEAR, 2ND
(L)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
(J)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
(J)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
C153
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
(J)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
33346CBALL (FOR 5TH GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
(J)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
(J)
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
(J)
33366KEY, SYNCHROMESH SHIFTING, NO.2
(J)
33367RING, SYNCHRONIZER, NO.1
(J),1ST GEAR SIDE
(J),2ND GEAR SIDE
33367BRING, SYNCHRONIZER (FOR 1ST GEAR)
33367CRING, SYNCHRONIZER (FOR 2ND GEAR)
33368RING, SYNCHRONIZER, NO.2
(J),3RD GEAR SIDE
(J),4TH GEAR SIDE
(J)
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
(J)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
(J)
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
(J)
33393HUB, TRANSMISSION CLUTCH, NO.3
(J)
33394KEY, SYNCHROMESH SHIFTING, NO.3
(J)
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
(J)
33423AGEAR, 3RD DRIVEN
(J)
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.22,MARK A
T=2.28,MARK B
T=2.34,MARK C
T=2.40,MARK D
T=2.46,MARK E
T=2.52,MARK F
T=2.58,MARK G
T=2.64,MARK H
T=2.70,MARK J
33428CGEAR, 5TH DRIVEN
33431BSPACER, OUTPUT SHAFT
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32
N=34
56 parts on this diagram · 2 diagrams in section
