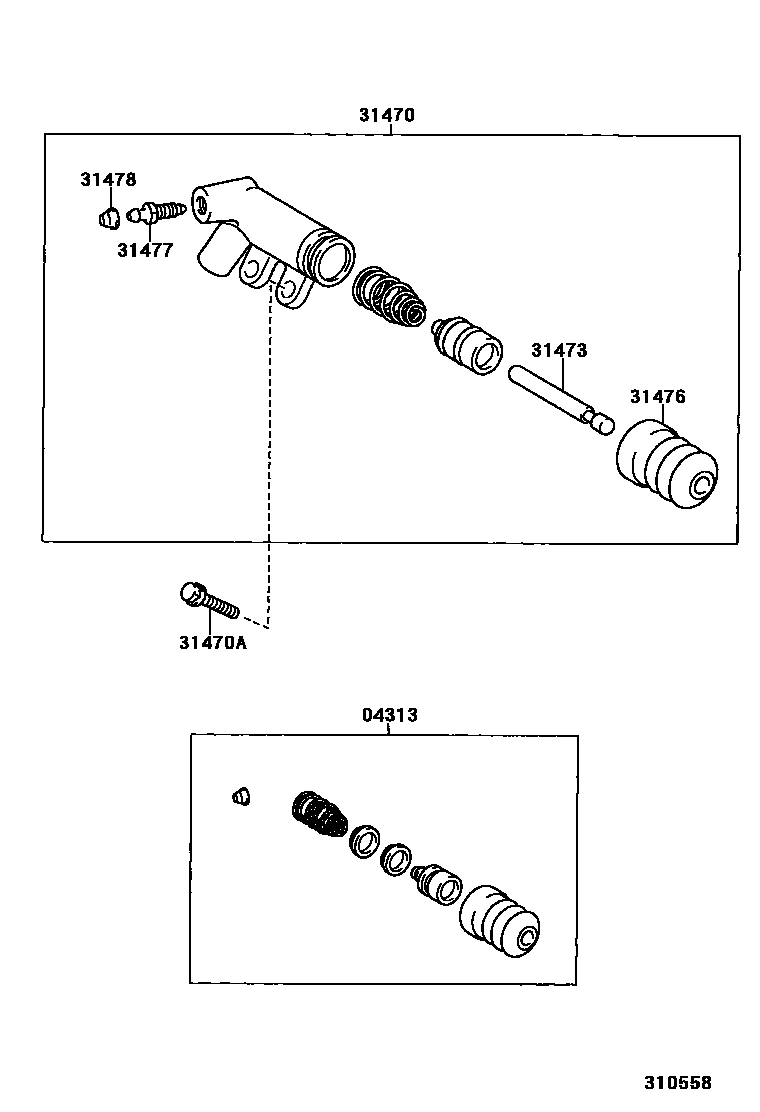

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0004 1 0005 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iSCP1#..5F200101-200302

main04313-22030iSCP10..FRP..TSGS200306-200310

main04313-52020iNLP10,SCP1#..FRP..(SOL,TRSTD)..5F200302-200405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52020iSCP10200101-200302

main31470-52050iSCP10..FRP..TSGS200306

main31470-52070iSCP12..5F200205-200302

main31470-52090iNLP10..FRP200302

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iSCP1#..5F200101-200302

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iSCP10200101-200302

main31473-22030iNLP10..FRP200205-200208

main31473-30070iSCP1#..FRP..(SOL,TRSTD)..5F200208-200302

main31473-52020iSCP10..FRP..TSGS200306

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iSCP1#..5F200101-200302

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iSCP1#..5F200101-200302

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iSCP1#..5F200101-200302

7 parts on this diagram · 4 diagrams in section
