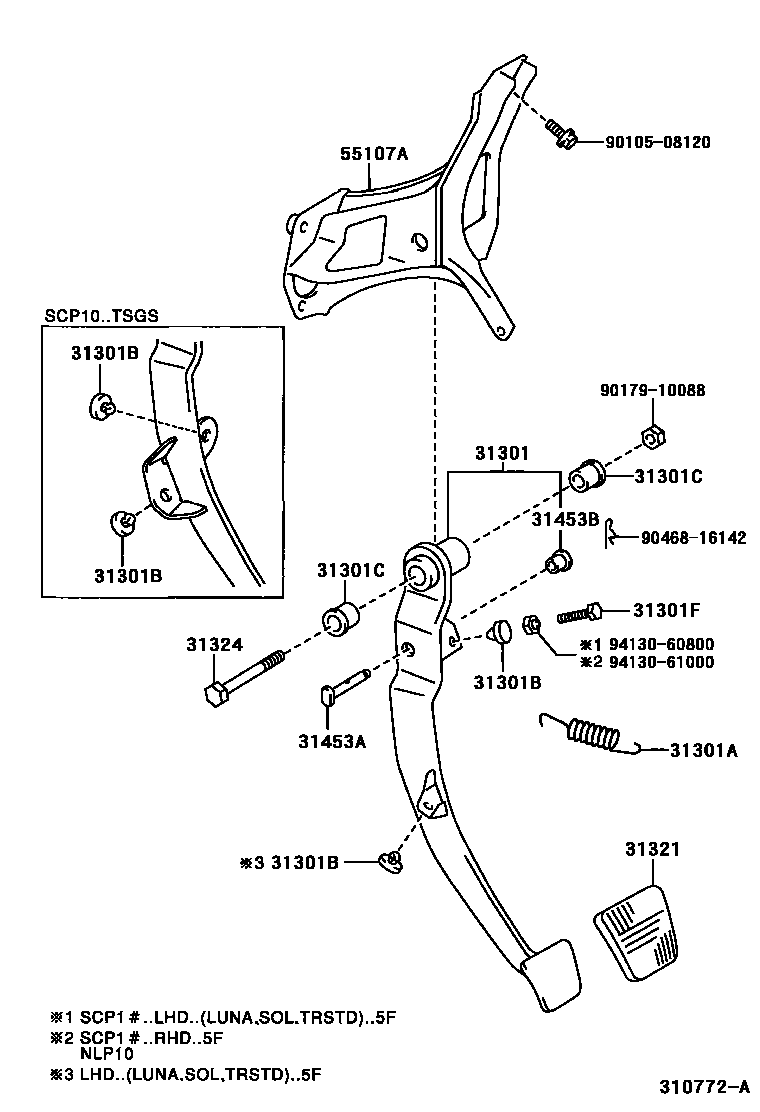

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D010iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200101-200302

sub31301-52020

main31301-52010iSCP1#..RHD..5F200101-200302

sub31301-52030

main31301-52040iSCP10..FRP..TSGS200306

main31301-52060iNLP10..FRP..RHD200302

sub31301-52090

main31301-52070iNLP10..FRP..LHD200302

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iSCP1#..5F200101-200302

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iSCP10..FRP..TSGS200101-200302

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSCP1#..5F200101-200302

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200101-200511

main90101-10369iNLP10,SCP1#..FRP..RHD..5F200101-200511

main91112-61025iNLP10..FRP..LHD200302-200511

31321PAD, CLUTCH PEDAL

main31321-52010iSCP1#..5F200101-200302

31324SHAFT, CLUTCH PEDAL

main90109-10167iNLP10,SCP1#..FRP..5F200101-200302

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iNLP10,SCP1#..FRP..RHD..5F200101-200302

L=30

main90249-08294iSCP1#..LHD..5F200101-200302

L=48.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNLP10,SCP1#..FRP..5F200101-200302

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D010iSCP1#..FRP..LHD..(SOL,TRSTD)..5F200101-200302

main55107-52011iSCP1#..FRP..RHD..5F200101-200302

sub55107-52050

main55107-52040iSCP10..FRP..TSGS200306

main55107-52070iNLP10..FRP..RHD200302

main55107-52080iNLP10..FRP..LHD200302

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413060800

main94130-60800

9413061000

main94130-61000

15 parts on this diagram · 10 diagrams in section
