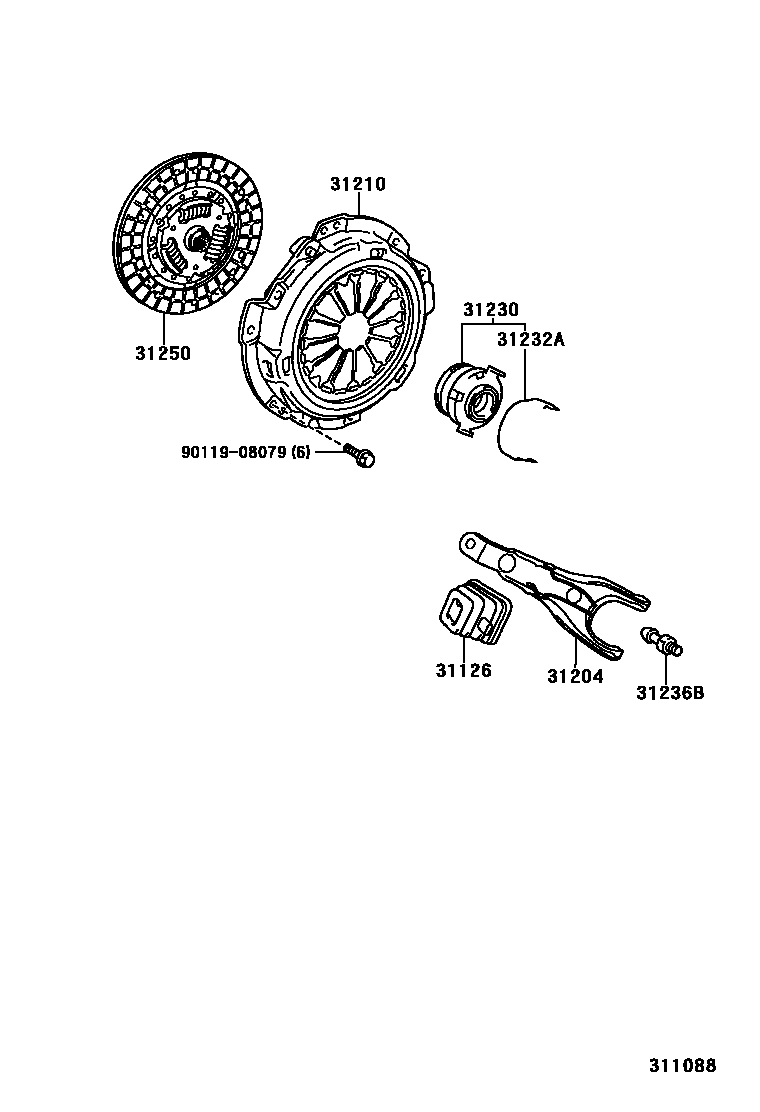

CLUTCH & RELEASE FORK

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0D010i200302
(L)
sub31126-12051
main31126-0D010i200205-200302
sub31126-12051
main31126-12051i200101-200302
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-12050i200101-200302
main31204-52010i200302
main31204-52020i200306
31210COVER ASSY, CLUTCH
main31210-0D010i200101-200302
main31210-0D030i200205-200302
main31210-0D040i200302
main31210-52030i200302
sub31210-70010
31230BEARING ASSY, CLUTCH RELEASE
main31230-12180i200302
sub31230-12181
main31230-52010i200101-200505
sub31230-52011
main31230-52011i200505
main31230-52031i200302-200505
sub31230-52032
main31230-52032i200505
31232ACLIP, RELEASE BEARING HUB
main31232-12080i200302
main31232-52010i200101-200302
main31232-52031i200302
31236BSUPPORT, RELEASE FORK
main31236-12011i200205-200302
main31236-12020i200302
main31236-52010i200101-200302
31250DISC ASSY, CLUTCH
main31250-0D010i200101-200210
sub31250-0D050
main31250-0D030i200205-200210
sub31250-0D060
main31250-0D040i200302
sub31250-0D041
main31250-0D050i200210-200308
sub31250-0D051
main31250-0D051i200308
main31250-0D060i200210-200302
9011908079
main90119-08079

8 parts on this diagram · 2 diagrams in section
