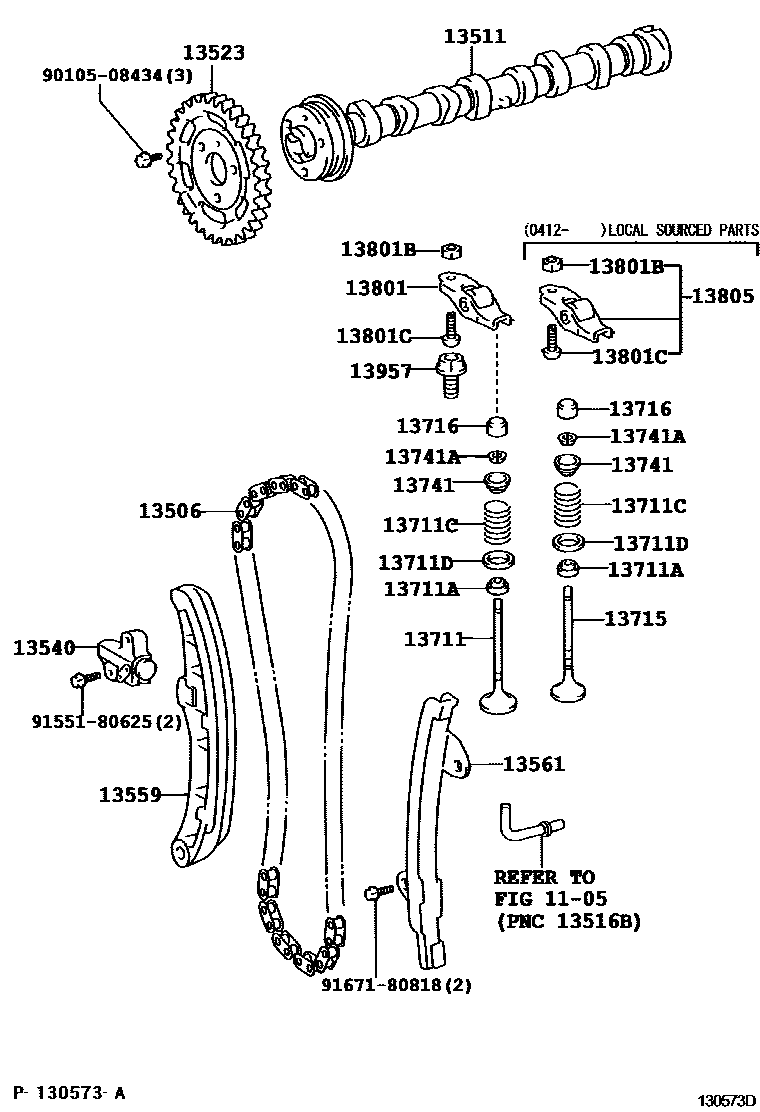

CAMSHAFT & VALVE
1105
13506CHAIN SUB-ASSY
13511CAMSHAFT
(L)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(J)
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE,(L)
EXHAUST SIDE,(L)
13711CSPRING, COMPRESSION(FOR OUTER)
(J)
(L)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(J)
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
sub13788-33011
13805ARM SET, VALVE ROCKER
13957PIVOT, VALVE ROCKER ARM
9010508434
main90105-08434
9155180625
main91551-80625
9167180818
main91671-80818
23 parts on this diagram · 3 diagrams in section
