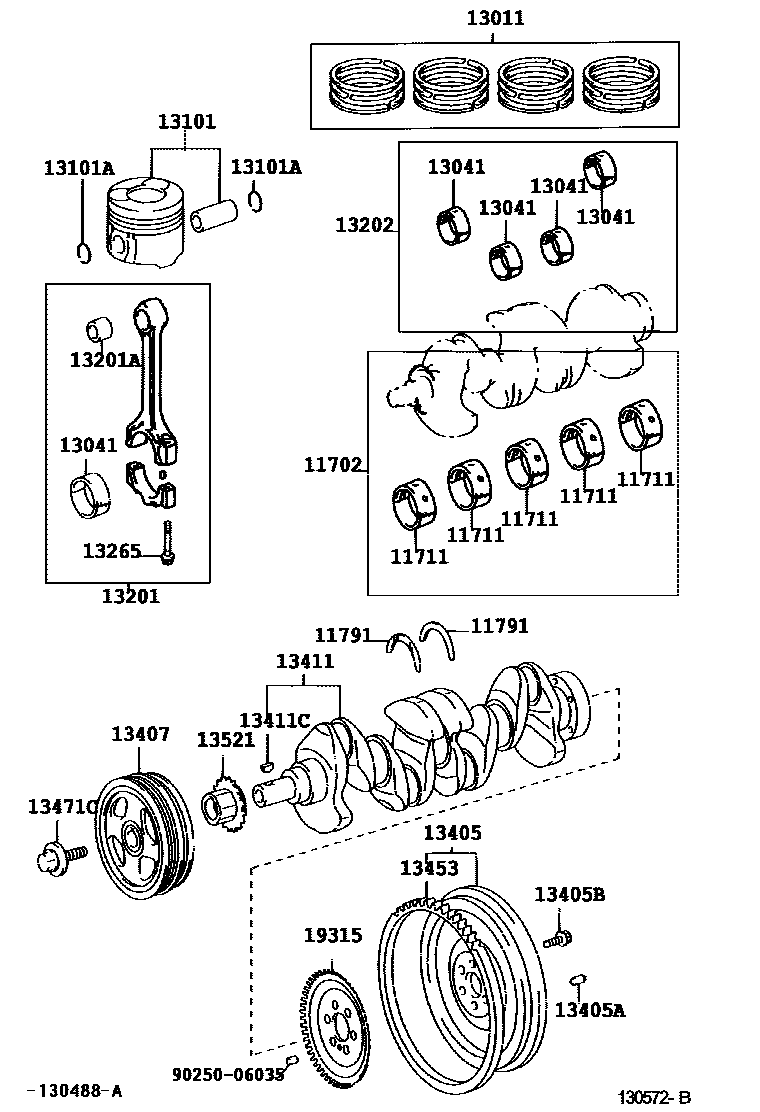

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARK 1:REFER TO REPAIR MANUAL,MARK 1,(J)
MARK 2:REFER TO REPAIR MANUAL,MARK 2,(J)
MARK 3:REFER TO REPAIR MANUAL,MARK 3,(J)
MARK 4:REFER TO REPAIR MANUAL,MARK 4,(J)
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,(J):REFER R/M
(J):REFER R/M
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 1:REFER TO REPAIR MANUAL,MARK1
MARK 2:REFER TO REPAIR MANUAL,MARK2
MARK 3:REFER TO REPAIR MANUAL,MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
O/S 0.50
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
(J)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
9025006035
