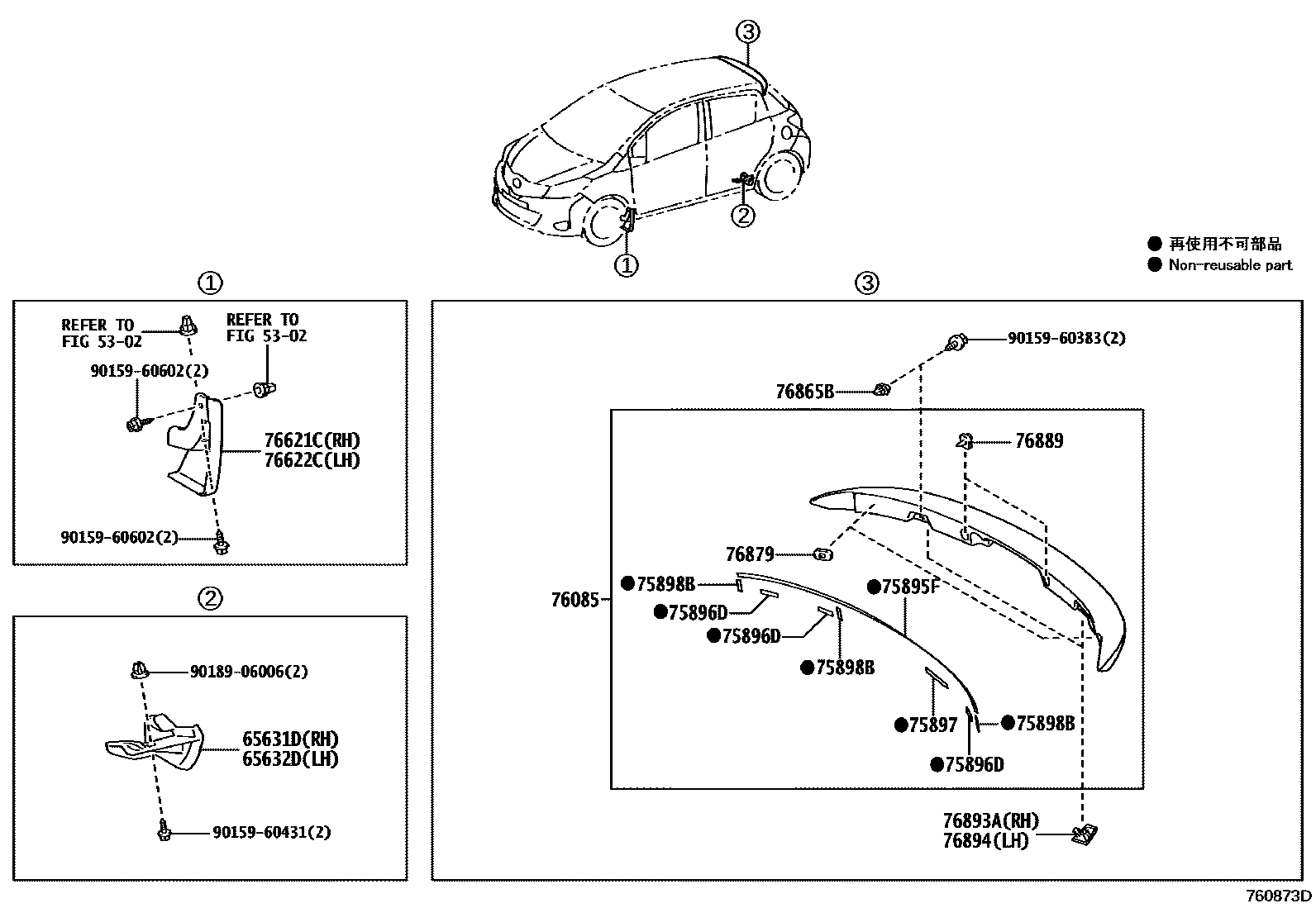

MUDGUARD & SPOILER
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75895FTAPE, MOULDING, NO.1
REAR SPOILER-WITH
75896DTAPE, MOULDING, NO.2
REAR SPOILER-WITH
75897TAPE, MOULDING, NO.3
REAR SPOILER-WITH
75898BTAPE, MOULDING, NO.4
REAR SPOILER-WITH
76085SPOILER SUB-ASSY, REAR
REAR SPOILER-WITH
PAINT REQ.
PAINT REQ.,REAR SPOILER-WITH
76621CMUDGUAD, FRONT FENDER, RH
MUD GUARD-WITH(FRONT ONLY)
MUD GUARD-WITH(DOP,FRONT ONLY)
76622CMUDGUARD, FRONT FENDER, LH
MUD GUARD-WITH(FRONT ONLY)
MUD GUARD-WITH(DOP,FRONT ONLY)
76865BRETAINER, REAR SPOILER
REAR SPOILER-WITH
76879CLIP, REAR SPOILER, NO.1
REAR SPOILER-WITH
76889CLIP, REAR SPOILER, NO.2
REAR SPOILER-WITH
76893ACOVER, REAR SPOILER, RH
REAR SPOILER-WITH
76894COVER, REAR SPOILER, LH
REAR SPOILER-WITH
9015960383
main90159-60383
9015960431
main90159-60431
9015960602
main90159-60602
9018906006
main90189-06006
19 parts on this diagram · 1 diagram in section
