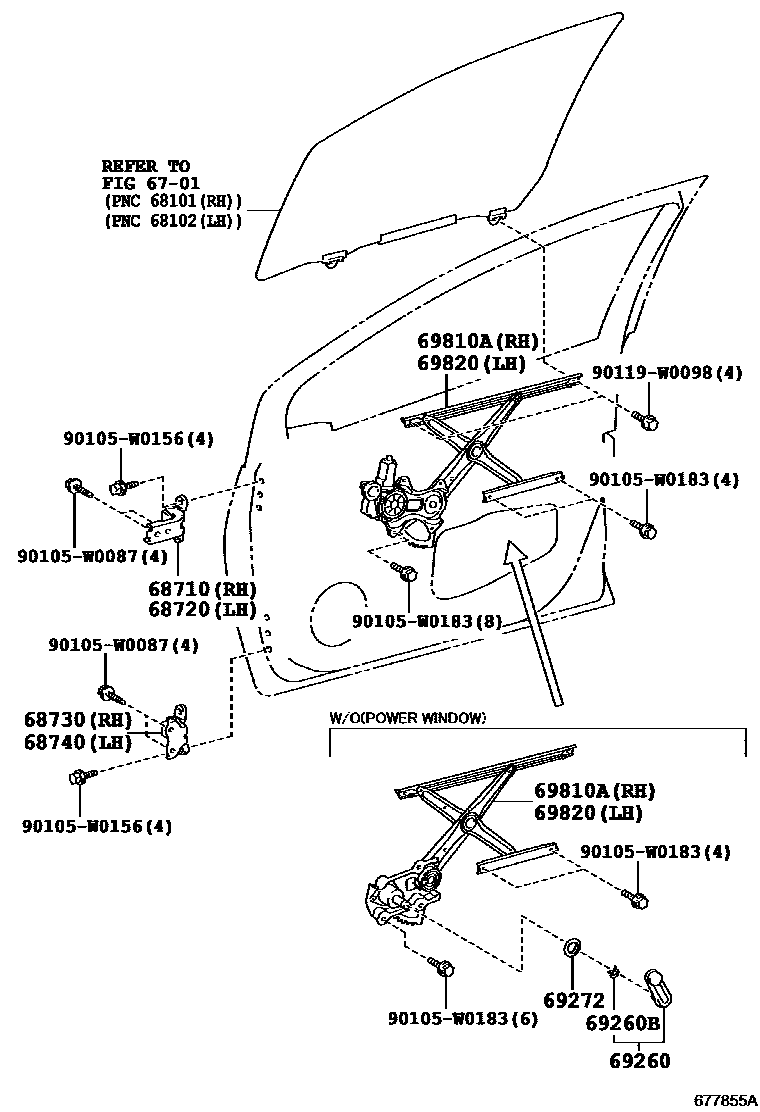

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D091iNCP131201305-201907

sub68710-02060

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D091iNCP131201305-201907

sub68720-02060

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D071iNCP131201305-201907

sub68730-02050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D071iNCP131201305-201907

sub68740-02050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02020-C0iNCP131..5D201305-201407

POWER WINDOW-WITH(FRONT ONLY),BLACK,TRIM1#

sub69260-02020

sub69260-02021

main69260-02020-C0iNCP131201305-201407

BLACK,TRIM1#

sub69260-02020

sub69260-02021

main69260-02020-C0iNCP131201305-201407

POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

sub69260-02020

sub69260-02021

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52100iNCP131201305-201407

POWER WINDOW-WITH(FRONT & REAR)

main90080-52100iNCP131..3D201305-201407

POWER WINDOW-WITH(FRONT ONLY)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-0D030iNCP131..3D201305-201407

POWER WINDOW-WITH(FRONT & REAR)

main69268-0D030iNCP131201305-201407

POWER WINDOW-WITH(FRONT ONLY)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D300iNCP131201407-201907

main69810-0D310iNCP131201305-201407

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D300iNCP131201407-201907

main69820-0D320iNCP131201305-201407

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

90119W0098

main90119-W0098

14 parts on this diagram · 1 diagram in section
