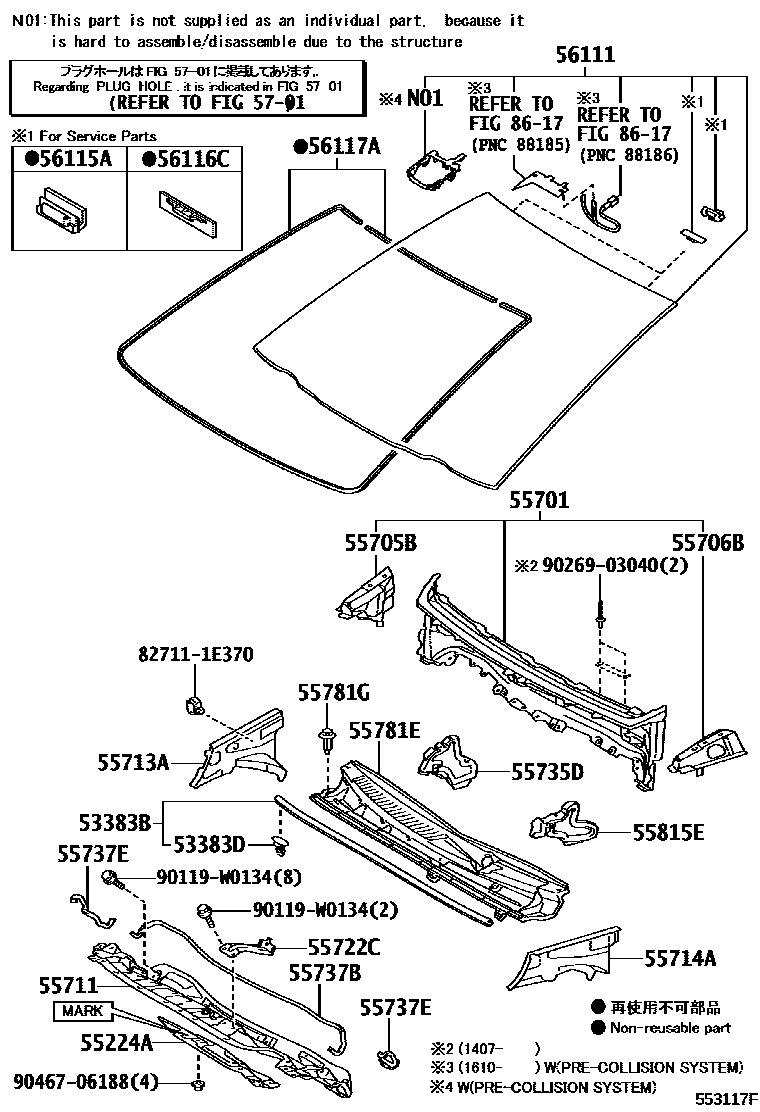

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
MARK=1
MARK=8
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55735DSEAL, FRONT AIR SHUTTER, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
PRE-COLLISION SYSTEM-WITH
PRE-COLLISION SYSTEM-WITHOUT
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3186 OR 606
*D,L=3186 OR 606,PRE-COLLISION SYSTEM-WITH
*D,L=3186 OR 606,PRE-COLLISION SYSTEM-WITHOUT
5701
8617
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
90119W0134
main90119-W0134
9026903040
main90269-03040
9046706188
main90467-06188
26 parts on this diagram · 1 diagram in section
