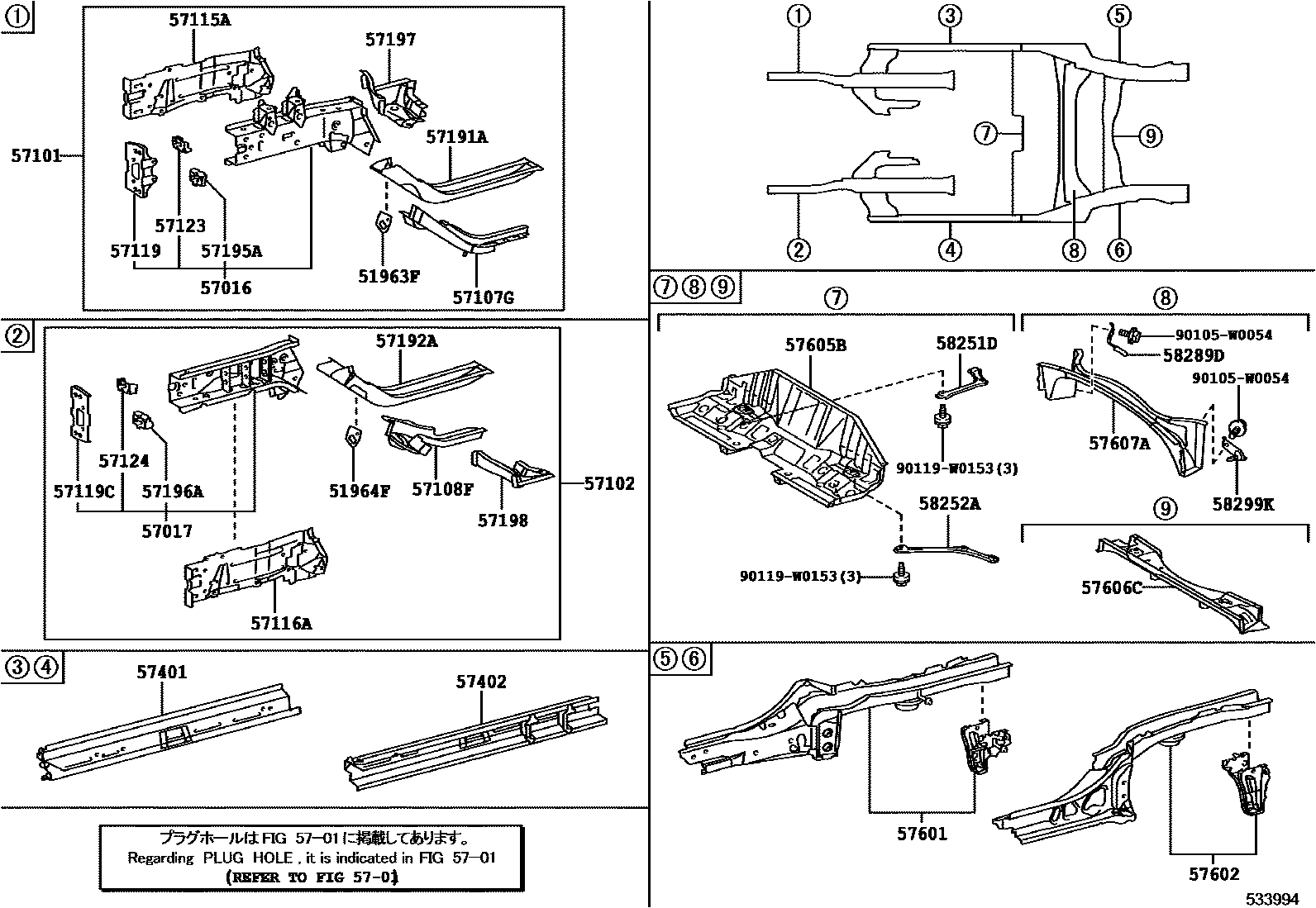

FLOOR SIDE MEMBER
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
5701
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119PLATE, FRONT SIDE MEMBER, FRONT
57119CPLATE, FRONT SIDE MEMBER, FRONT
57123SUPPORT, FRONT SIDE MEMBER, RH
57124SUPPORT, FRONT SIDE MEMBER, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
58251DBRACE, FLOOR PANEL, FRONT
58252ABRACE, FLOOR PANEL, REAR
58289DBRACKET, FLOOR BRAKE HOSE, REAR
58299KBRACKET, FLOOR BRAKE HOSE, REAR LH
90105W0054
main90105-W0054
90119W0153
main90119-W0153
34 parts on this diagram · 1 diagram in section
