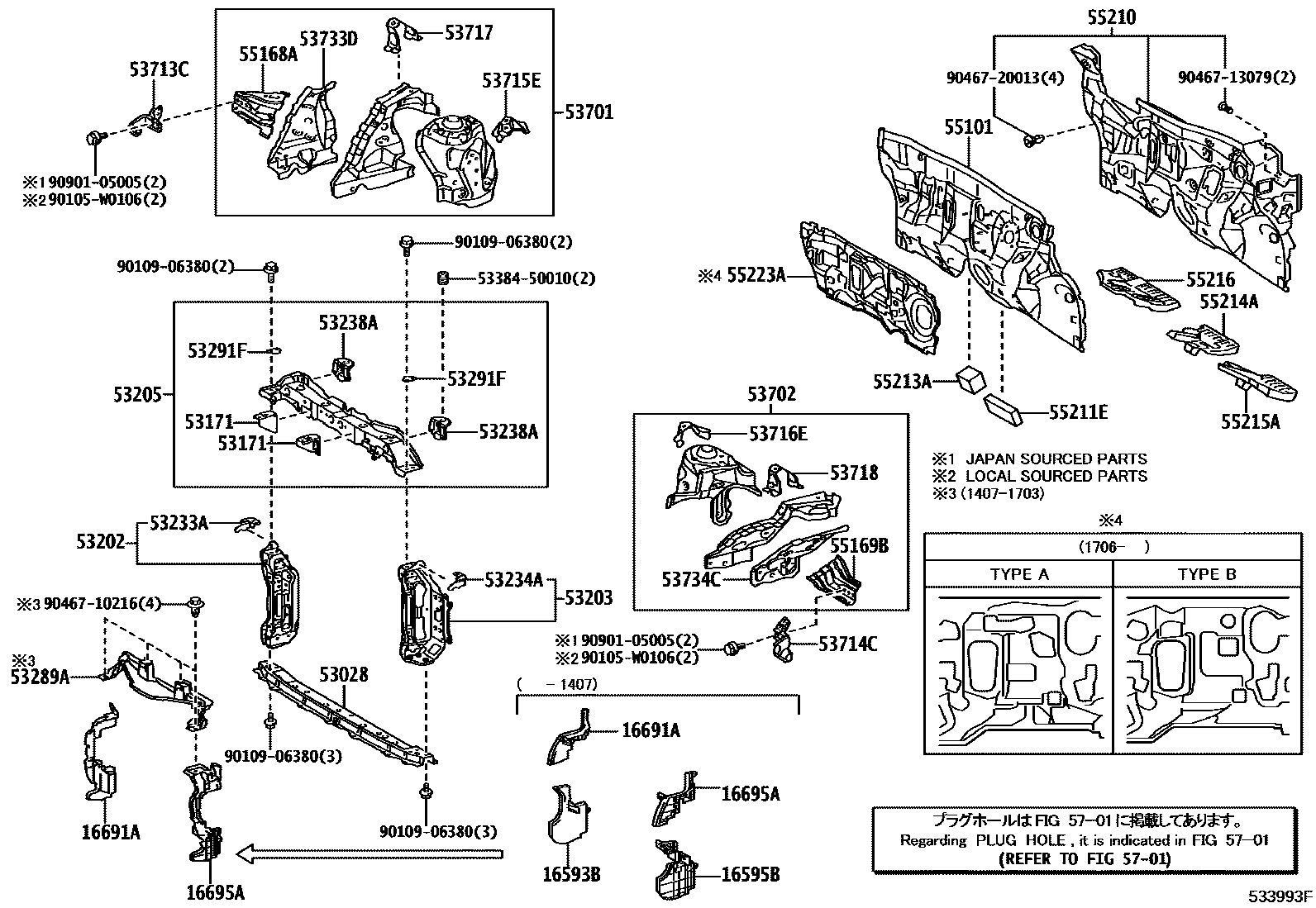

FRONT FENDER APRON & DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main53287-52140iNCP131201305-201407

16595BGUIDE, RADIATOR AIR, NO.1 LH

main53288-52140iNCP131201305-201407

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-0M010i1NZFE..NCP131201703-201907

main53285-0D270iNCP131..R201407-201703

main53285-0D290iNCP131..USA201407-201703

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)

main53285-52360iNCP131201305-201407

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-0M010i1NZFE..NCP131201703-201907

main53286-0D270iNCP131..R201407-201703

main53286-0D290iNCP131..S201407-201703

RADIATOR LOWER GRILL-UNPAINTED(MOULDING=PAINTED TYPE)

main53286-52300iNCP131201305-201407

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D031iNCP131¥9,800201305-201907

53171RETAINER, RADIATOR SUPPORT

main53171-0D040iNCP131201305-201407

RH

main53171-0D050iNCP131201305-201407

LH

main53171-0D060iNCP131¥660201407-201907

RH

main53171-0D070iNCP131¥660201407-201907

LH

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0D906iNCP131¥7,700201305-201907

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0D906iNCP131¥7,700201305-201907

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0D904iNCP131201305-201407

main53205-0D905iNCP131¥10,700201407-201907

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-0D050iNCP131201305-201907

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-0D050iNCP131201305-201907

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-0D050iNCP131201305-201907

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0D110iNCP131201407-201703

53291FPLATE, RADIATOR SUPPORT

main53291-0D010iNCP131¥270201305-201907

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D130iNCP131¥21,300201305-201907

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D120iNCP131201305-201907

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D040iNCP131201305-201907

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D040iNCP131¥1,350201305-201907

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iNCP131¥670201305-201907

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iNCP131¥750201305-201907

53717PLATE, FENDER APRON, RH

main53717-0D040iNCP131201305-201907

53718PLATE, FENDER APRON, LH

main53718-0D040iNCP131201305-201907

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0D010iNCP131¥3,210201305-201907

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0D010iNCP131¥2,750201305-201907

55101PANEL SUB-ASSY, DASH

main55101-0D290iNCP131..5F201305-201907

main55101-0D390iNCP131..4FC201305-201703

main55101-0D391iNCP131..4FC201703-201907

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D040iNCP131¥1,760201305-201907

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D040iNCP131¥1,760201305-201907

55210INSULATOR ASSY, DASH PANEL

main55210-0D330iNCP131201305-201407

main55210-0D620iNCP131201407-201907

55211ESILENCER, FRONT PANEL

main55211-0D150iNCP131¥280201305-201907

55213APAD, DASH PANEL SILENCER

main55213-0D110iNCP131¥280201305-201907

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0D130iNCP131201305-201907

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-0D120iNCP131201305-201907

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0D060iNCP131201305-201907

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D191iNCP131201305-201512

sub55223-0D192

main55223-0D192iNCP131201601-201703

main55223-0D480iNCP131201703-201706

main55223-0D480iNCP131201706-201907

TYPE A:REFER ILLUST.

main55223-52130iNCP131¥6,000201706-201907

TYPE B:REFER ILLUST.

5701

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010¥340

90105W0106

main90105-W0106

9010906380

main90109-06380¥60

9046710216

main90467-10216¥100

9046713079

main90467-13079¥120

9046720013

main90467-20013¥120

9090105005

main90901-05005¥90

42 parts on this diagram · 1 diagram in section
