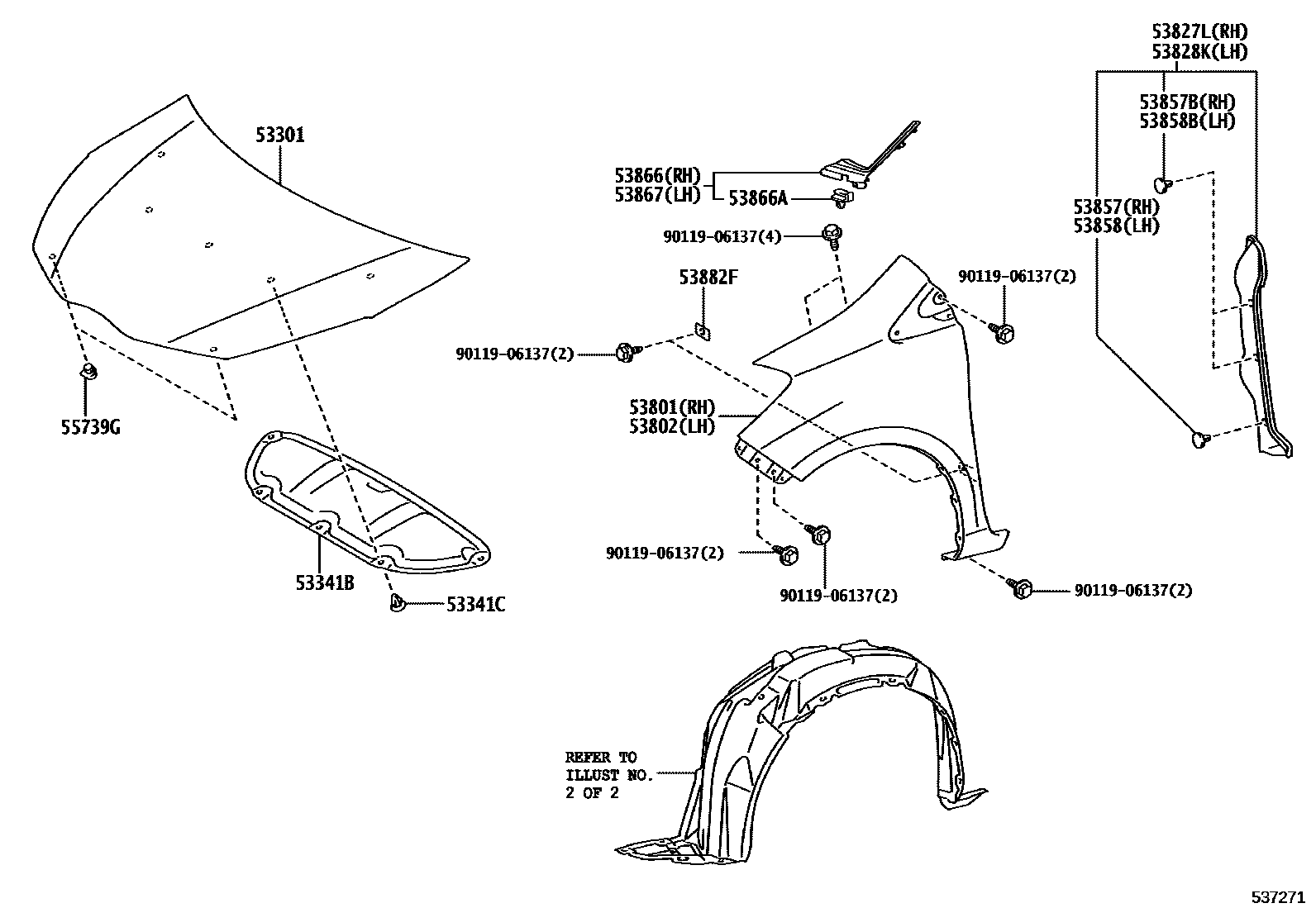

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0D130iNCP131..CND201305-201907

main53301-0D210iNCP131..USA201305-201907

53341BINSULATOR, HOOD

main53341-0D140iNCP131201407-201703

MEXICO SPEC

main53341-0D140iNCP131201305-201706

main53341-0D140iNCP131201706-201907

(L)

main53341-52180iNCP131201706-201907

(J)

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNCP131201407-201703

MEXICO SPEC

main90467-09050iNCP131201305-201907

53801FENDER SUB-ASSY, FRONT RH

main53801-52120iNCP131..USA201305-201607

sub53801-52200

main53801-52200iNCP131..USA201607-201907

main53811-52390iNCP131..CND201305-201907

53802FENDER SUB-ASSY, FRONT LH

main53802-52120iNCP131..USA201305-201607

sub53802-52200

main53802-52200iNCP131..USA201607-201907

main53812-52360iNCP131..CND201305-201907

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D100iNCP131201305-201907

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D100iNCP131201305-201907

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNCP131201305-201907

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47020iNCP131201305-201907

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNCP131201305-201907

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47020iNCP131201305-201907

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D091iNCP131201305-201407

main53866-0D170iNCP131201407-201606

main53866-0D210iNCP131201606-201907

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-52020iNCP131201305-201907

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D091iNCP131201305-201407

main53867-0D170iNCP131201407-201606

main53867-0D210iNCP131201606-201907

53882FSEAL, FRONT FENDER

main53882-16030iNCP131201305-201907

55739GSTOPPER, HOOD

main55738-52060iNCP131201305-201907

9011906137

main90119-06137

17 parts on this diagram · 2 diagrams in section
