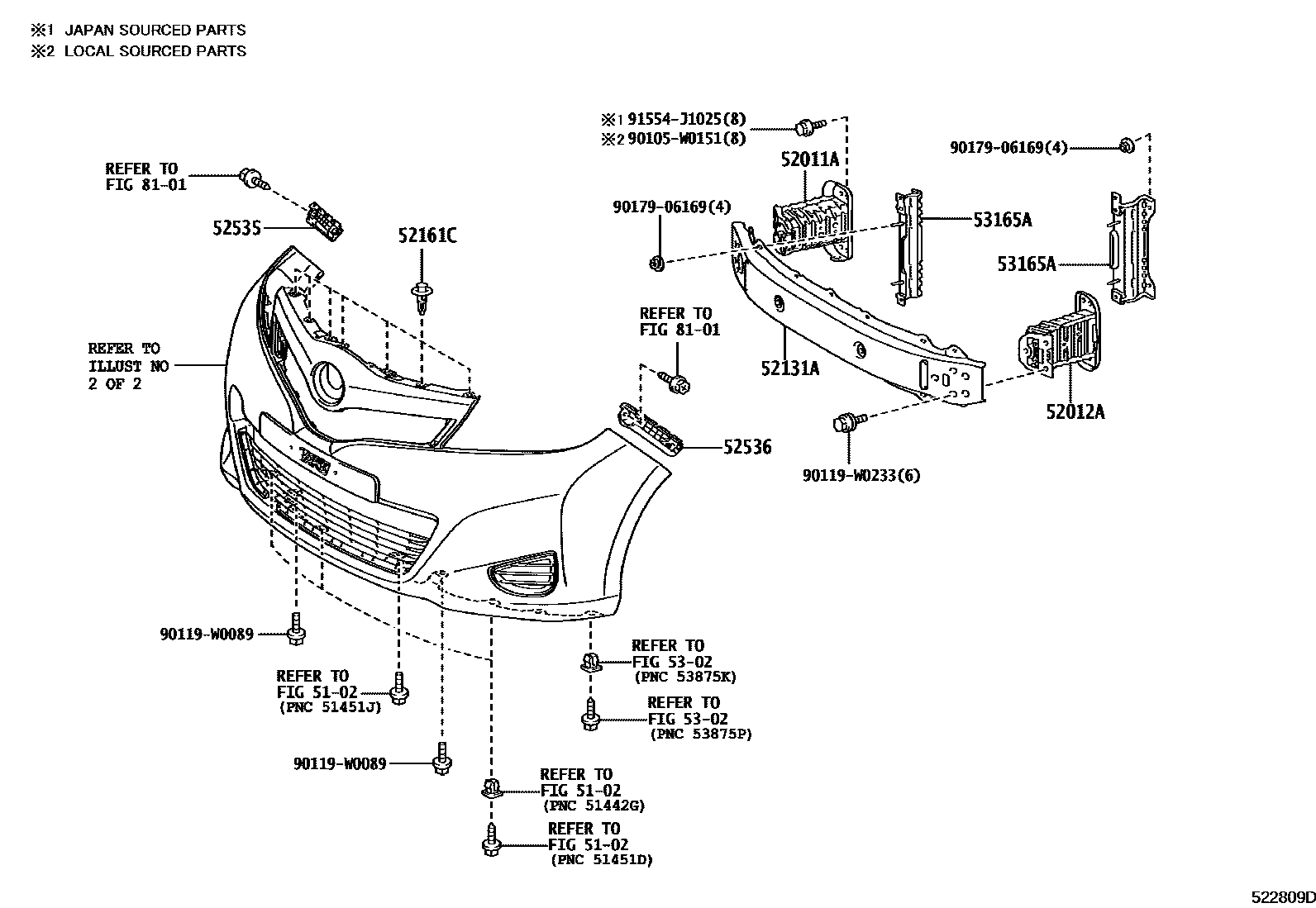

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

5102

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-52021iNCP131201305-201907

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-52020iNCP131201305-201907

52131AREINFORCEMENT, FRONT BUMPER

main52131-0D050iNCP131..CND201305-201407

main52131-52280iNCP131..USA201305-201407

52161CPIECE, FRONT BUMPER

main52161-02030iNCP131201305-201907

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D090iNCP131201305-201907

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D090iNCP131201305-201907

5302

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-0D070iNCP131201305-201907

RH

main53165-0D050iNCP131201305-201907

LH

8101

90105W0151

main90105-W0151

90119W0089

main90119-W0089

90119W0233

main90119-W0233

9017906169

main90179-06169

91554J1025

main91554-J1025

15 parts on this diagram · 6 diagrams in section
