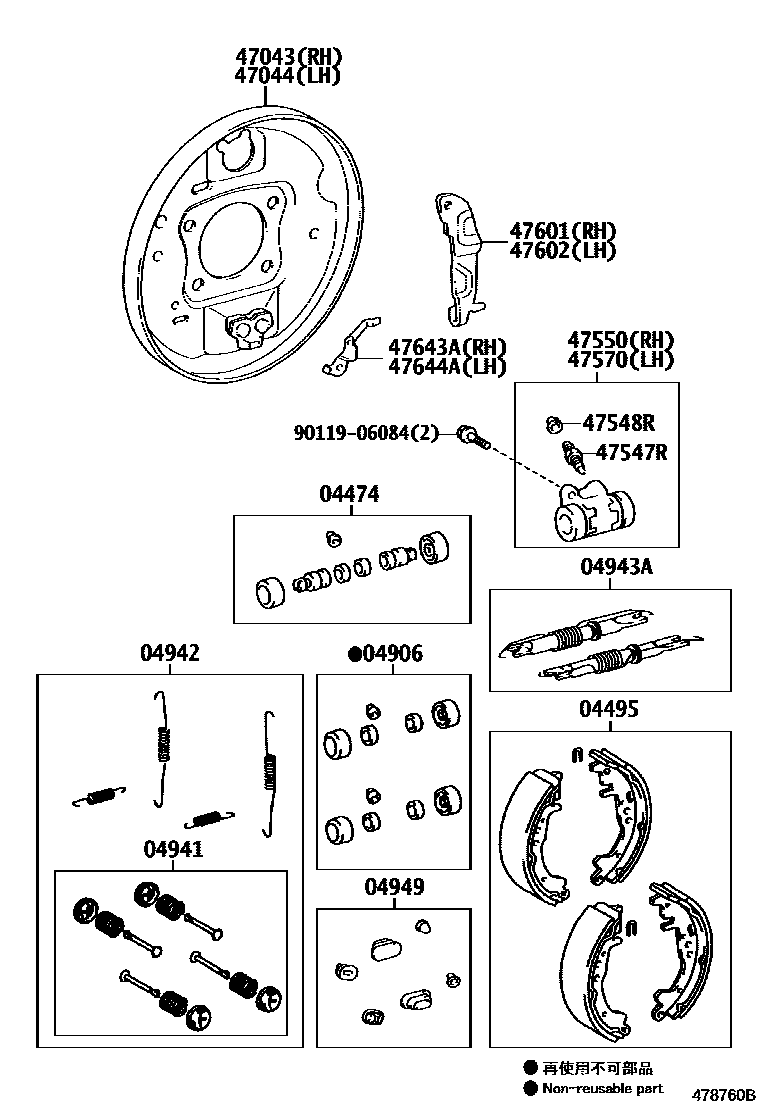

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iNCP131..R201703-201907

04495SHOE KIT, REAR BRAKE

main04495-52100iNCP131201305-201306

MARK NBK LN521

sub04495-52140

main04495-52150iNCP131201306-201404

MARK NBK LN521

main04495-52170iNCP131..R201407-201703

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP131..R201407-201703

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-46010iNCP131..R201407-201703

04942SPRING KIT, REAR BRAKE

main04942-52050iNCP131..R201407-201703

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNCP131..R201407-201703

04949PLUG KIT, REAR BRAKE

main04949-12010iNCP131..R201407-201703

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iNCP131..R201703-201907

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iNCP131..R201407-201703

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNCP131..R201407-201703

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP131..R201407-201703

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP131..R201407-201703

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNCP131..R201407-201703

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52100iNCP131201305-201306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52100iNCP131201305-201306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP131201305-201404

main47643-52102iNCP131..R201703-201907

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP131201305-201404

main47644-52102iNCP131..R201407-201703

9011906084

main90119-06084

18 parts on this diagram · 2 diagrams in section
