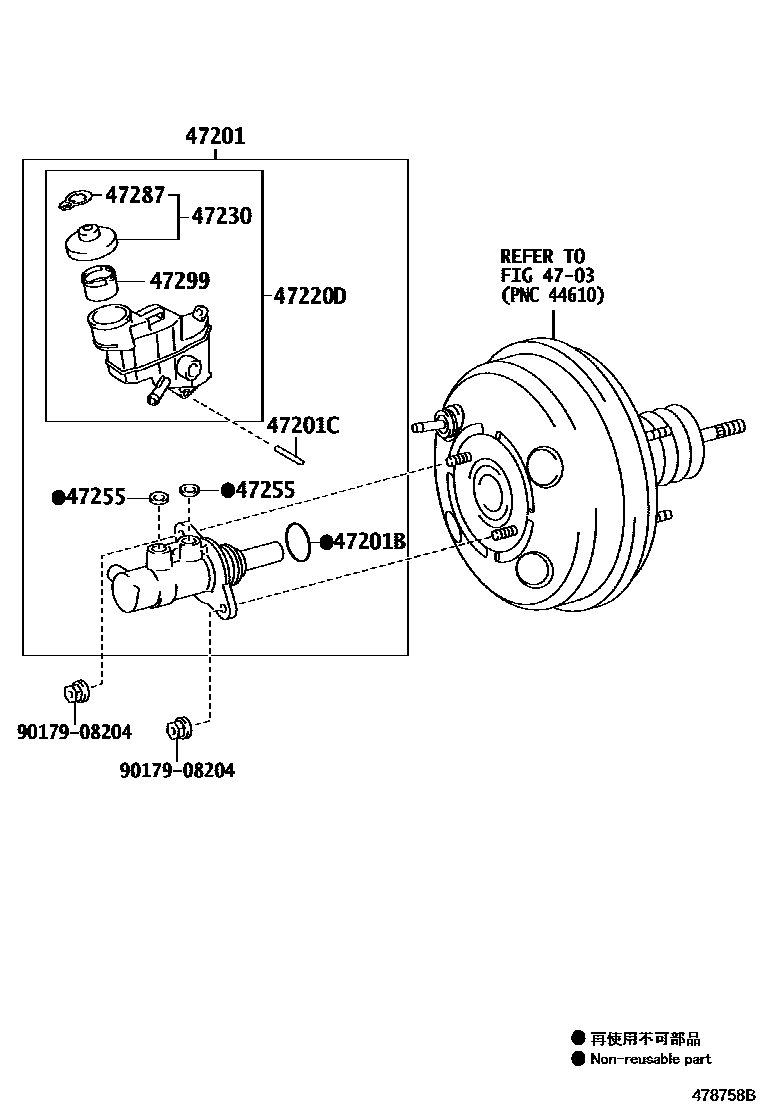

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52600iNCP131..4FC..USA201407-201907

PUERTO RICO SPEC&SE PACKAGE

main47201-52600iNCP131..4FC201305-201407

main47201-52620iNCP131..5F201305-201907

main47201-52620iNCP131..5F..USA201407-201703

PUERTO RICO SPEC&SE PACKAGE

main47201-52642iNCP131..4FC..S201407-201907

SE PACKAGE

main47201-52652iNCP131..5F..USA201407-201703

SE PACKAGE

main47201-52652iNCP131..5F..S201703-201907

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNCP131201305-201907

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNCP131..3D..S201305-201907

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-52270iNCP131..4FC201305-201907

main47220-52280iNCP131..5F201305-201907

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP131201305-201907

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNCP131201305-201907

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP131201305-201907

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP131201305-201907

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
