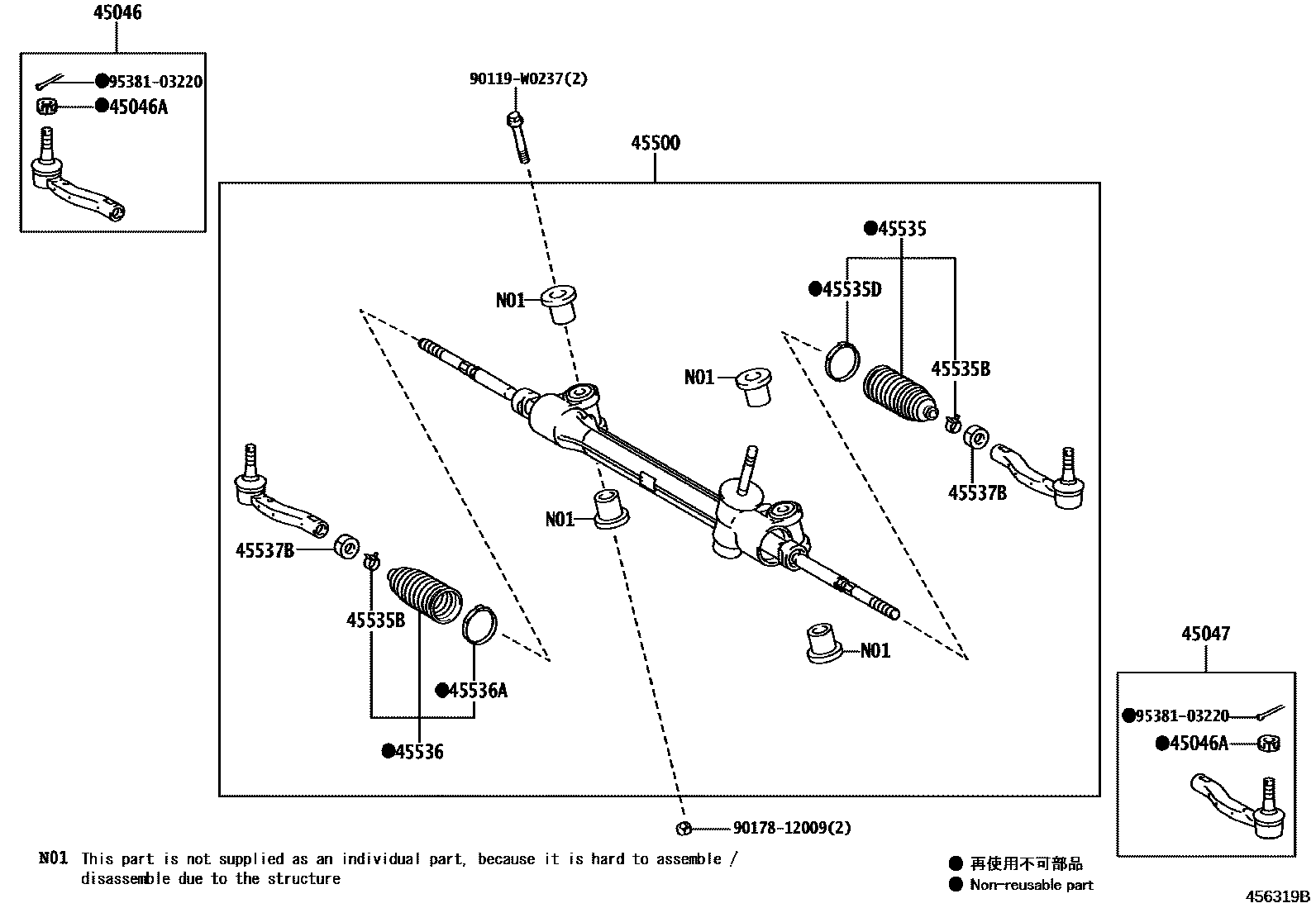

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09480iNCP131201305-201407

main45046-09700iNCP131..S201407-201605

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45046-09860iNCP131..5D..USA;NCP131..3D..5F..USA201703-201907

TIRE & DISC WHEEL-P195/50R16, 6J

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP131201407-201703

45047END SUB-ASSY, TIE ROD, LH

main45046-09700iNCP131..S201407-201605

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45046-09860iNCP131..S201605-201703

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main45047-09220iNCP131..R201407-201703

45500LINK ASSY, STEERING

main45500-0D271iNCP131..R201407-201703

main45500-0D280iNCP131..5D..USA;NCP131..3D..5F..USA201703-201907

TIRE & DISC WHEEL-P195/50R16, 6J

main45500-0D290iNCP131201305-201407

sub45510-52351

sub45046-59255

sub45047-59165

main45500-0D291iNCP131..5F..USA201407-201607

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

45535BOOT, STEERING RACK, NO.1

main45535-09240iNCP131201703-201907

main45535-59035iNCP131201305-201407

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050×2iNCP131201703-201907

main90467-19021×2iNCP131201305-201407

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iNCP131201407-201703

main45538-52010iNCP131201305-201407

45536BOOT, STEERING RACK, NO.2

main45535-09240iNCP131201407-201703

main45535-59035iNCP131201305-201407

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iNCP131201703-201907

main45538-52010iNCP131201305-201407

45537BNUT, RACK END LOCK

main90178-15003×2iNCP131..S201407-201703

TIRE & DISC WHEEL-P195/50R16 ALL SEASON TIRE 6J ALUMINUM

main90179-14019×2iNCP131..R201407-201703

90119W0237

main90119-W0237

9017812009

main90178-12009

9538103220

main95381-03220

13 parts on this diagram · 1 diagram in section
