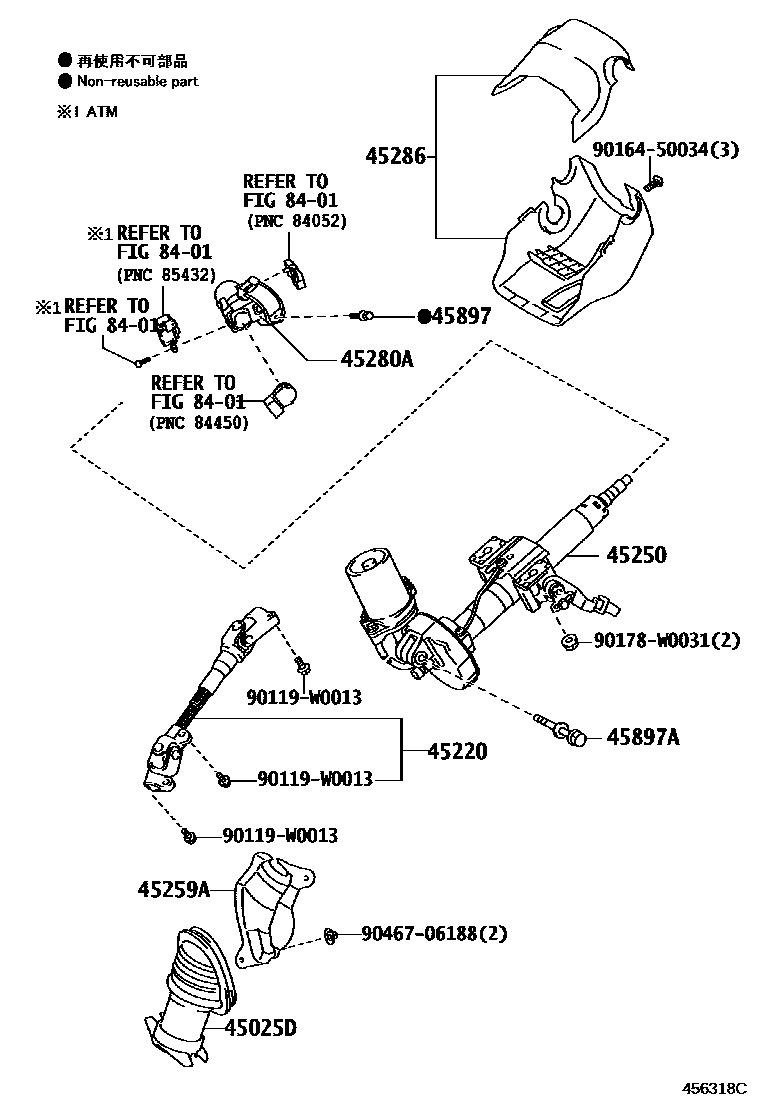

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D062iNCP131201305-201907

sub45025-0D061

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D010iNCP131201305-201907

45250COLUMN ASSY, STEERING

main45250-52764iNCP131201305-201407

45259ASHEET, COLUMN HOLE COVER SILENCER

main45255-0D100iNCP131201305-201907

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52100iNCP131..3D..4FC..S201305-201907

main45280-52110iNCP131..5F201305-201907

45286COVER, STEERING COLUMN

main45286-0D915-C0iNCP131201305-201407

BLACK,TRIM1#

main45286-0D915-C1iNCP131..S201407-201703

EU BLACK,TRIM0#,1#,2#,3#

main45286-0D915-C1iNCP131..S201407-201703

EU BLACK,TRIM1#,2#

main45286-0D915-C1iNCP131..S201407-201703

EU BLACK,TRIM2#,3#

main45286-0D915-C1iNCP131201703-201907

EU BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iNCP131201305-201907

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNCP131201305-201310

main90119-10980iNCP131201311-201907

8401

90119W0013

main90119-W0013

9016450034

main90164-50034

90178W0031

main90178-W0031

9046706188

main90467-06188

13 parts on this diagram · 2 diagrams in section
