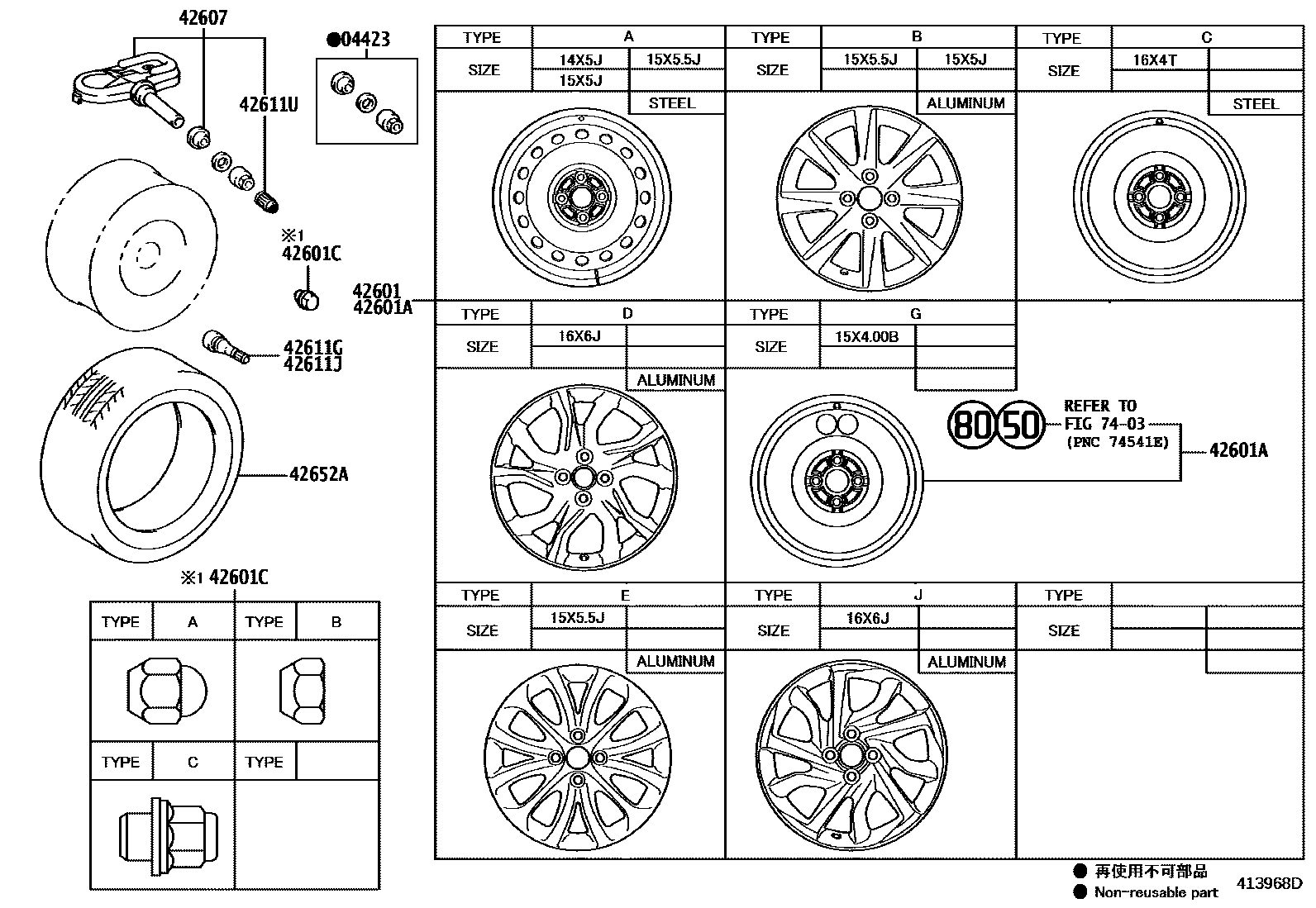

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-02010×4i201407-201703

42601WHEEL, DISC

main42611-0DC70×4i201407-201703

16X6J, #,TYPE D:REFER ILLUST.

main42611-0DG80×4i201703-201907

16X6J, #,TIRE & DISC WHEEL-P195/50R16, 6J,TYPE J:REFER ILLUST.

main42611-0D580×4i201407-201607

14X5J, #,MEXICO SPEC&TIRE & DISC WHEEL-175/65R14 5J ROUGH ROAD SPEC,TYPE A:REFER ILLUST.

main42611-0D610×4supersedes 42611-0D600i201305-201407

15X5J, #,TIRE & DISC WHEEL-P175/65R15 ALL SEASON TIRE 5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-0D620×4supersedes 42611-0D600i201407-201703

15X5.5J, #,TIRE & DISC WHEEL-P175/65R15 ALL SEASON TIRE 5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-0DC80×4i201407-201703

16X6J, #,TIRE & DISC WHEEL-195/50R16 ALL SEASON TIRE ALUMI MACHINED,TYPE D:REFER ILLUST.

main42611-0DG60×4supersedes 42611-0D600i201703-201907

15X5.5J, #,TIRE & DISC WHEEL-P175/65R15 ALL SEASON TIRE, 5.5J ALUMI,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0DC40i201703-201907

16X4T,TYPE C:REFER ILLUST.

main42611-0D231i201407-201607

15X4.00B,MEXICO SPEC&TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×16supersedes 90942-01021i201703-201907

TIRE & DISC WHEEL-P175/65R15 ALL SEASON TIRE, 5.5J ALUMI,TYPE C:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-0D010×4i201305-201407

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i201407-201703

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201407-201703

42611UCAP, TIRE VALVE

main90942-W5001×4i201305-201407

42652ATIRE (FOR SPARE)

main4265A-0D020i201703-201907

T125/70D16,*D/L

main4265A-0D030i201407-201607

T125/70D15,*Y/H,MEXICO SPEC&TIRE & DISC WHEEL-175/65R14 5J ROUGH ROAD SPEC

7403

10 parts on this diagram · 2 diagrams in section
