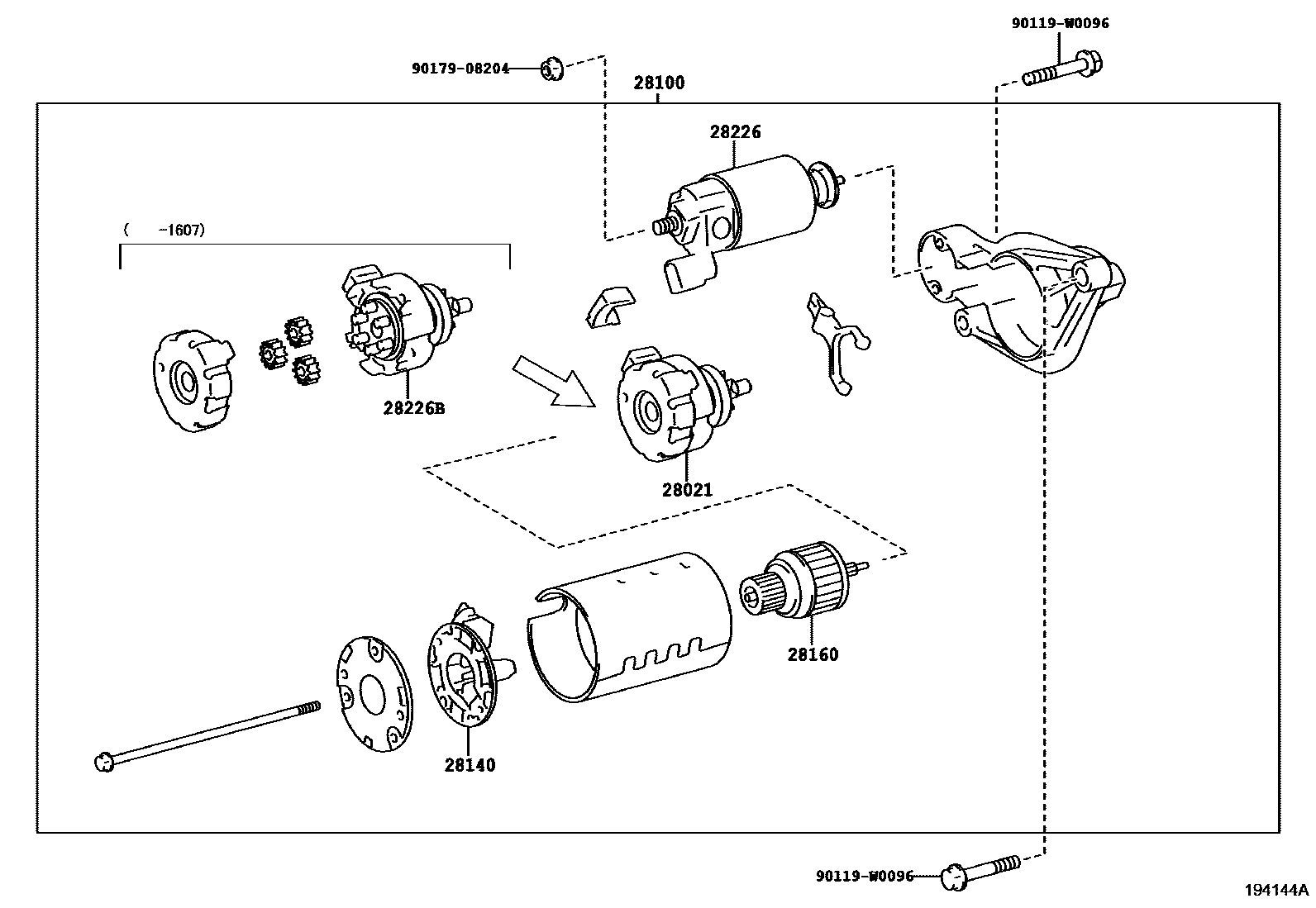

STARTER

0001 112V 1.0KW 0002 112V 1.6KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1NZFE..NCP131..USA201305-201907

COLD AREA SPEC

main28021-21140i1NZFE..NCP131..USA201903-201907

28100STARTER ASSY

main28100-21063i1NZFE..NCP131..USA201305-201907

12V 1.6KW

main28100-21140i1NZFE..NCP131..USA201903-201907

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i1NZFE..NCP131..USA201305-201907

28160ARMATURE ASSY, STARTER

main28160-21060i1NZFE..NCP131..USA201305-201907

COLD AREA SPEC

main28160-47180i1NZFE..NCP131..USA201903-201907

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i1NZFE..NCP131..USA201305-201409

sub28226-21081

main28226-21081i1NZFE..NCP131..USA201409-201903

main28226-47180i1NZFE..NCP131..USA201903-201907

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1NZFE..NCP131..USA201305-201907

COLD AREA SPEC

90119W0096

main90119-W0096

9017908204

main90179-08204

8 parts on this diagram · 2 diagrams in section
