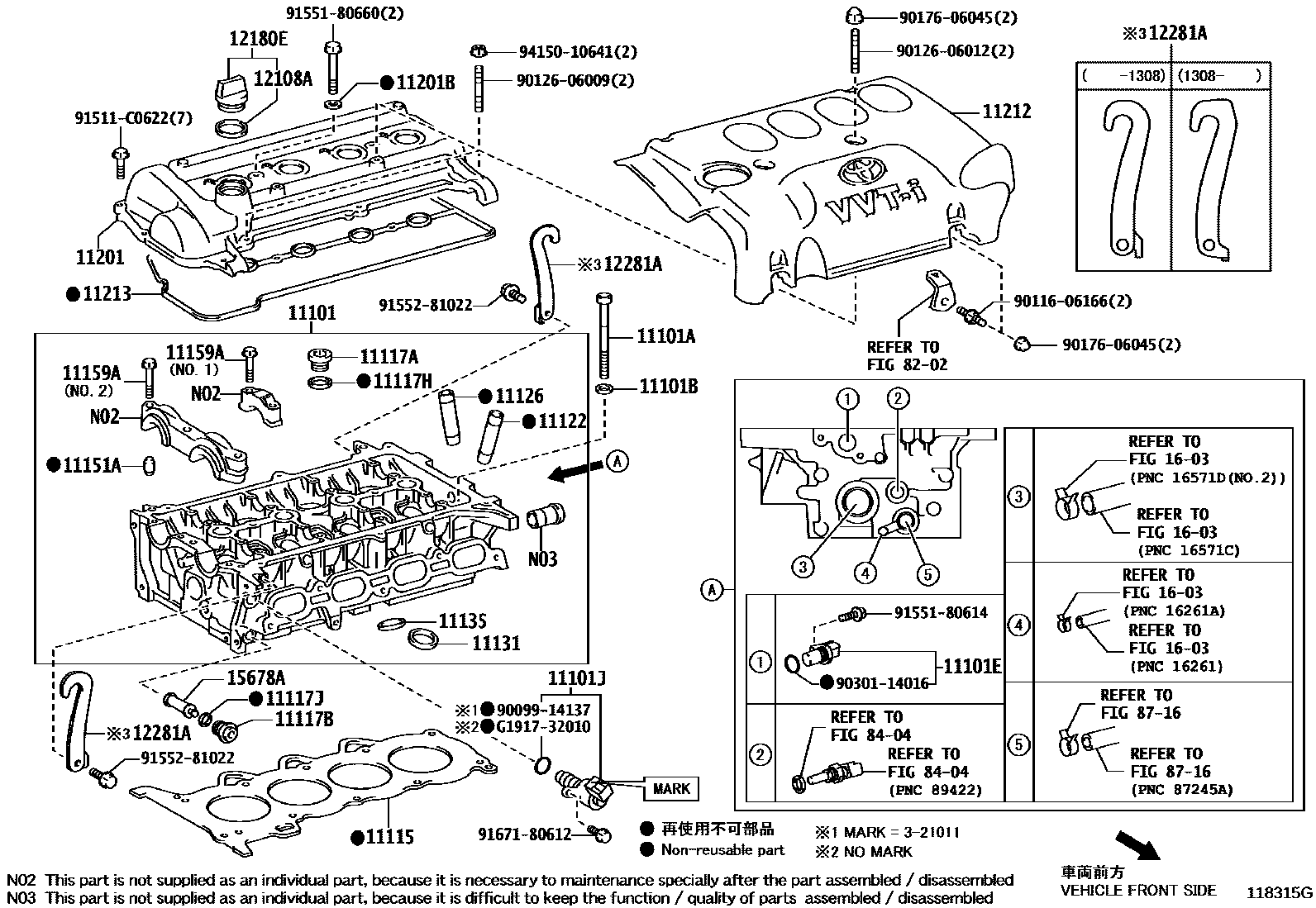

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12281AHANGER, ENGINE, NO.1
15678AFILTER, OIL CONTROL VALVE
1603
8202
8404
8716
9009914137
main90099-14137
9011606166
main90116-06166
9012606009
main90126-06009
9012606012
main90126-06012
9017606045
main90176-06045
9030114016
main90301-14016
91511C0622
main91511-C0622
9155180614
main91551-80614
9155180660
main91551-80660
9155281022
main91552-81022
9167180612
main91671-80612
9415010641
main94150-10641
G191732010
mainG1917-32010
41 parts on this diagram · 1 diagram in section
