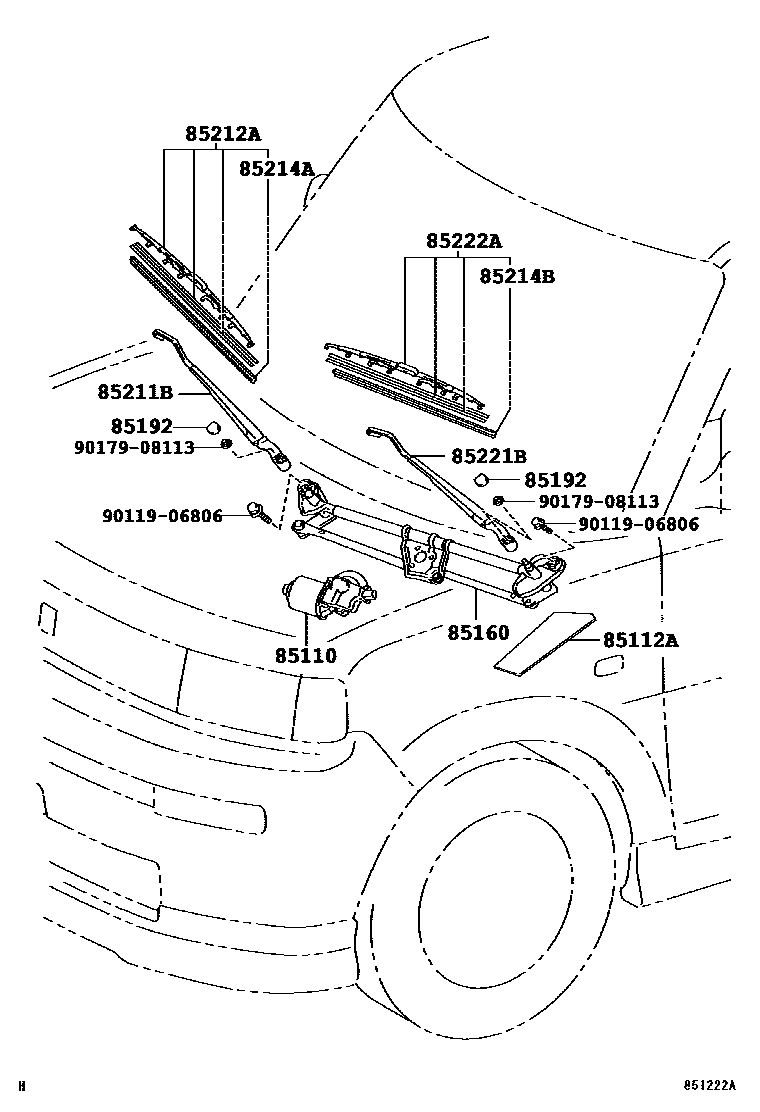

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52240iNCP31200304-200407

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-52060iNCP31200408

85160LINK ASSY, WINDSHIELD WIPER

main85150-52170iNCP31200304-200407

sub85150-52171

main85150-52171iNCP31200408

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP31200304-200612

85211BARM, FRONT WIPER, RH

main85211-52180iNCP31200304-200612

85212ABLADE, FR WIPER, RH

main85212-52140iNCP31200304-200605

sub85212-52141

main85212-52141iNCP31200606-200612

85214ARUBBER, WIPER, RH

main85214-24050iNCP31200304-200605

sub85214-24051

main85214-24051iNCP31200606-200612

85214BRUBBER, WIPER, LH

main85214-24050iNCP31200304-200605

sub85214-24051

main85214-24051iNCP31200606-200612

85221BARM, FRONT WIPER, LH

main85221-52160iNCP31200304-200612

85222ABLADE, FR WIPER, LH

main85222-52130iNCP31200304-200605

sub85222-52131

main85222-52131iNCP31200606-200612

9011906806

main90119-06806

9017908113

main90179-08113

12 parts on this diagram · 1 diagram in section
