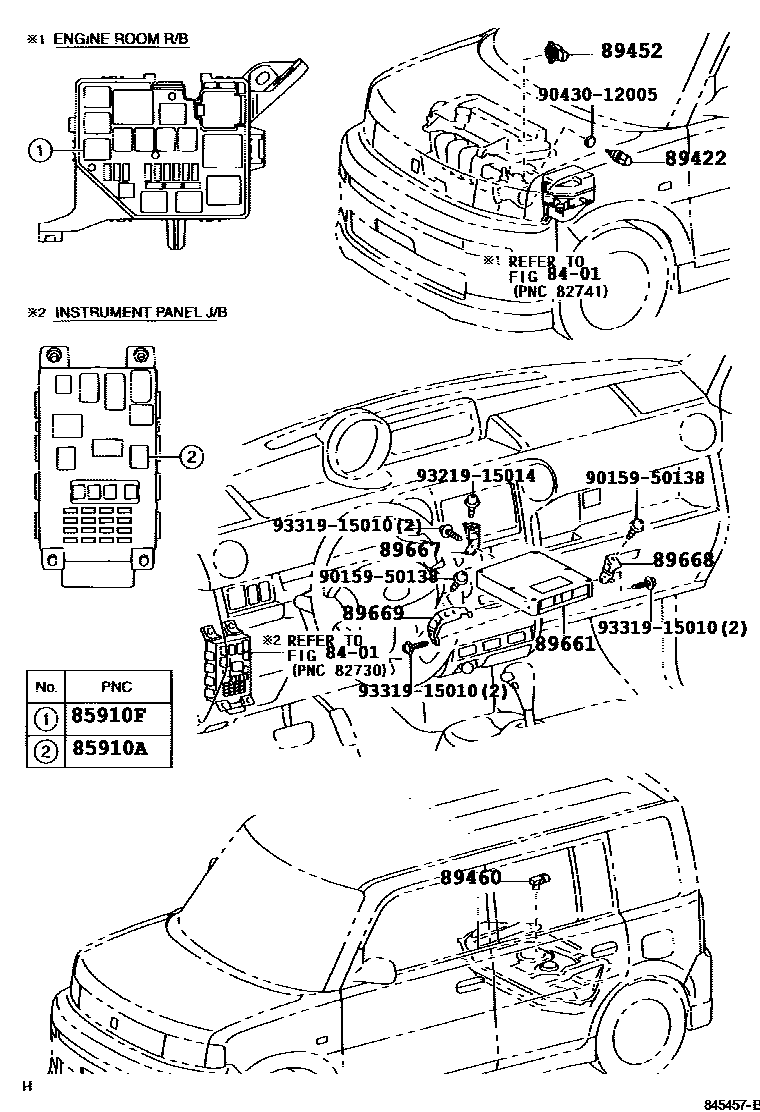

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iNCP31200304

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iNCP31200304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP31200304-200507

MARK 89422-16010*369

main89422-22030iNCP31200304-200507

MARK 89422-22030*369

main89422-33030iNCP31200507-200612

DENSO

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP31200304

89460SENSOR ASSY, VAPOR PRESSURE

main89461-35010iNCP31200304-200507

89661COMPUTER, ENGINE CONTROL

main89661-52E30iNCP31..MTM200507-200612

sub89661-52E31

main89661-52E40iNCP31..ATM200507-200508

sub89661-52E41

main89661-52E41iNCP31..ATM200509-200612

sub89661-52E42

main89666-52280iNCP31..MTM200304-200404

main89666-52290iNCP31..ATM200304-200404

main89666-52370iNCP31..MTM200404-200507

main89666-52380iNCP31..ATM200404-200507

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52120iNCP31200304-200507

main89667-52260iNCP31200507-200612

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52130iNCP31200304-200507

main89668-52280iNCP31200507-200612

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52080iNCP31200304-200507

9015950138

main90159-50138

9043012005

main90430-12005

9321915014

main93219-15014

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
