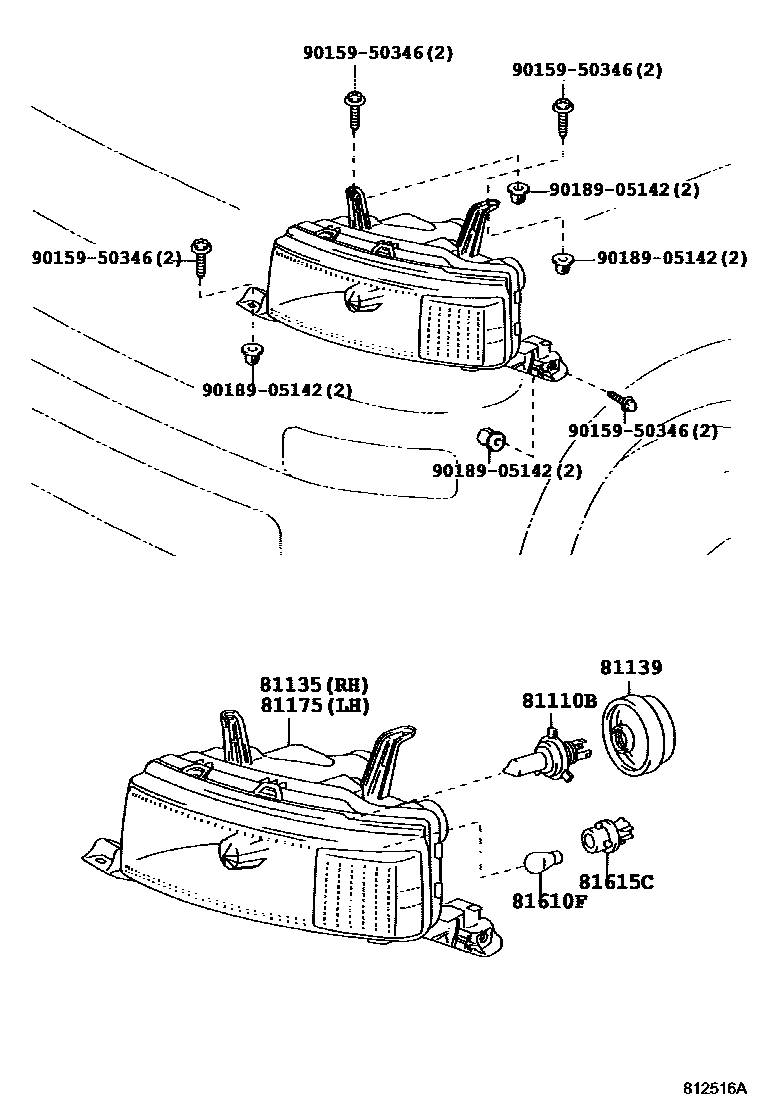

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP31200304-200612

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52440iNCP31200304-200612

81139COVER, HEADLAMP SOCKET

main90075-65002iNCP31200304

81175UNIT ASSY, HEADLAMP, LH

main81170-52440iNCP31200304-200612

81610FBULB(FOR CLEARANCE LAMP)

main90981-12024iNCP31200304

12V 27/8W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-99106iNCP31200304

9015950346

main90159-50346

9018905142

main90189-05142

8 parts on this diagram · 1 diagram in section
