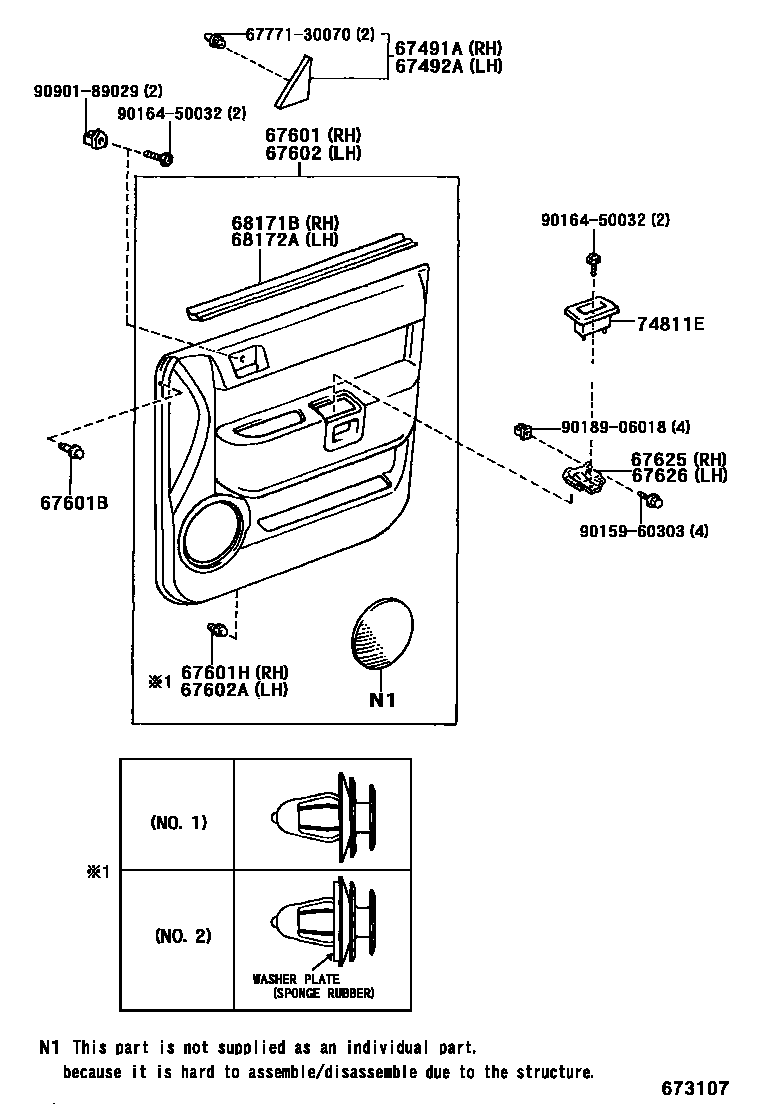

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52040-C0iNCP31200304-200612

BLACK,TRIM9#

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52040-C0iNCP31200304-200612

BLACK,TRIM9#

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-52A00-B0iNCP31200402-200403

SPECIAL EDITION(USA),DK. GRAY,TRIM9#

main67610-5CA70-B0iNCP31200502-200503

SPECIAL EDITION(USA),DK. GRAY,TRIM9#

main67610-5CB10-K1iNCP31200512-200612

DK.GRAY,TRIM9#

sub67610-5CB11

main67650-52420-K0iNCP31200304-200512

DK. GRAY,TRIM9#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B2iNCP31200304-200612

DK.GRAY,TRIM9#

sub90467-07190

67601HRETAINER, DOOR TRIM, RH

main67771-28020iNCP31200304-200511

TYPE B:REFER TO ILLUSTRATION,LOWER

main90467-10161iNCP31200304-200511

TYPE A:REFER TO ILLUSTRATION,FRONT & REAR UPPER

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-52D00-B0iNCP31200402-200403

SPECIAL EDITION(USA),DK. GRAY,TRIM9#

main67620-52S60-B0iNCP31200502-200503

SPECIAL EDITION(USA),DK. GRAY,TRIM9#

main67620-52T00-K1iNCP31200512-200612

DK.GRAY,TRIM9#

main67660-52420-K0iNCP31200304-200512

DK. GRAY,TRIM9#

67602ARETAINER, DOOR TRIM, LH

main67771-28020iNCP31200304-200511

TYPE B:REFER TO ILLUSTRATION,LOWER

main90467-10161iNCP31200304-200511

TYPE A:REFER TO ILLUSTRATION,FRONT & REAR UPPER

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52031iNCP31200304-200612

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52031iNCP31200304-200612

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52060iNCP31200304-200612

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52060iNCP31200304-200612

74811EHANDLE, DOOR PULL

main74811-52010-B0iNCP31200304-200612

DK.GRAY,TRIM9#

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015960303

main90159-60303

9016450032

main90164-50032

9018906018

main90189-06018

9090189029

main90901-89029

17 parts on this diagram · 2 diagrams in section
