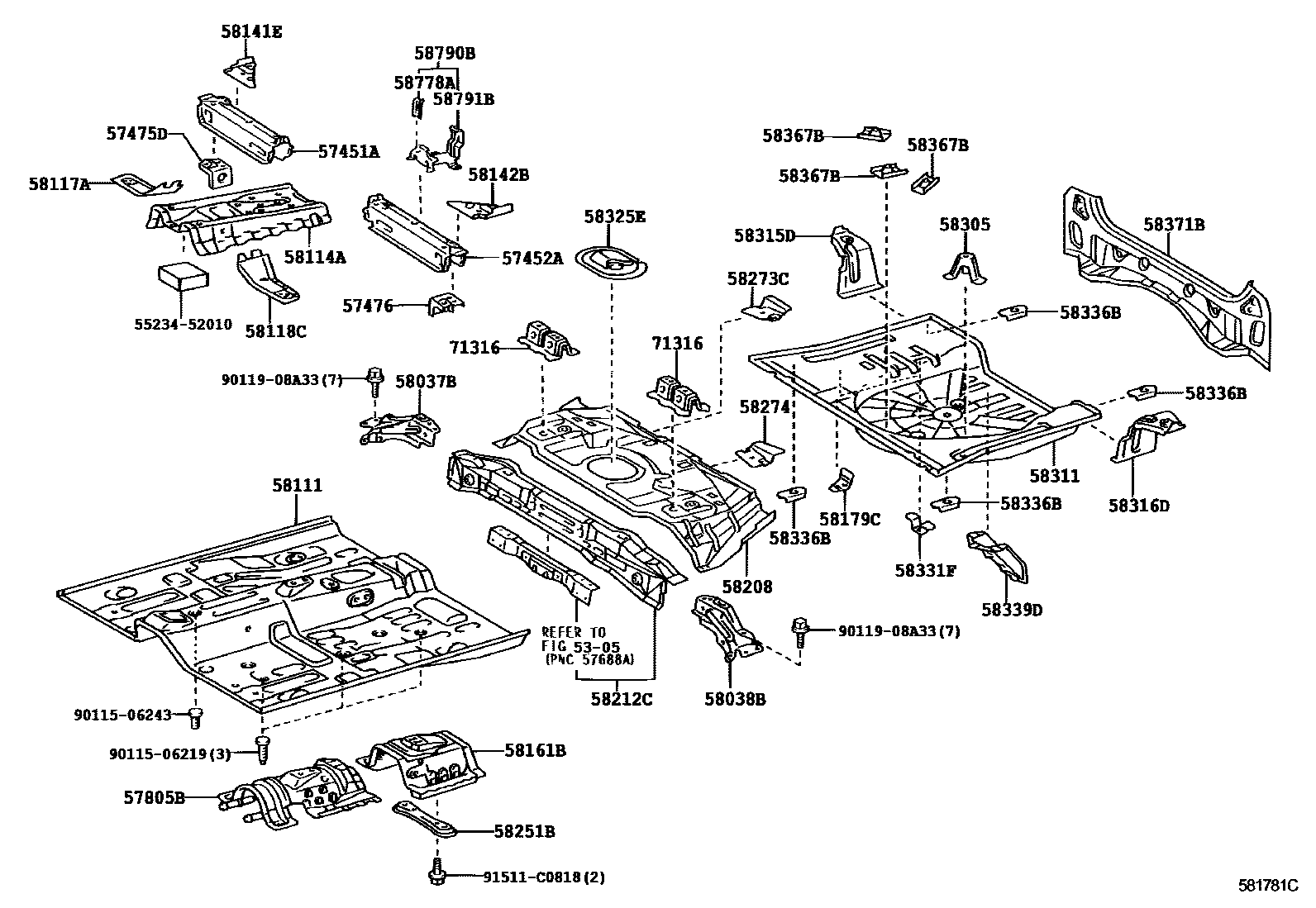

FLOOR PAN & LOWER BACK PANEL
5305
57451AMEMBER, FRONT FLOOR CROSS, RH
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58037BREINFORCE, CENTER PILLAR TO FLOOR, RH
58038BREINFORCE, CENTER PILLAR TO FLOOR, LH
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118CREINFORCEMENT, FRONT FLOOR SIDE, LH
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58179CBRACKET, CLAMP FLOOR
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58274REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58336BREINFORCEMENT, REAR FLOOR PAN
58339DBRACKET, JACK UP
58367BBRACKET, FUEL TUBE
58371BPANEL, BODY LOWER BACK, OUTER
58778ABRACKET, JACK HOLDER, NO.1
71316BRACKET, REAR SEAT SUPPORT
5523452010SHEET, DASH PANEL INSULATOR, NO.2
main55234-52010
9011506219
main90115-06219
9011506243
main90115-06243
9011908A33
main90119-08A33
91511C0818
main91511-C0818
40 parts on this diagram · 2 diagrams in section
