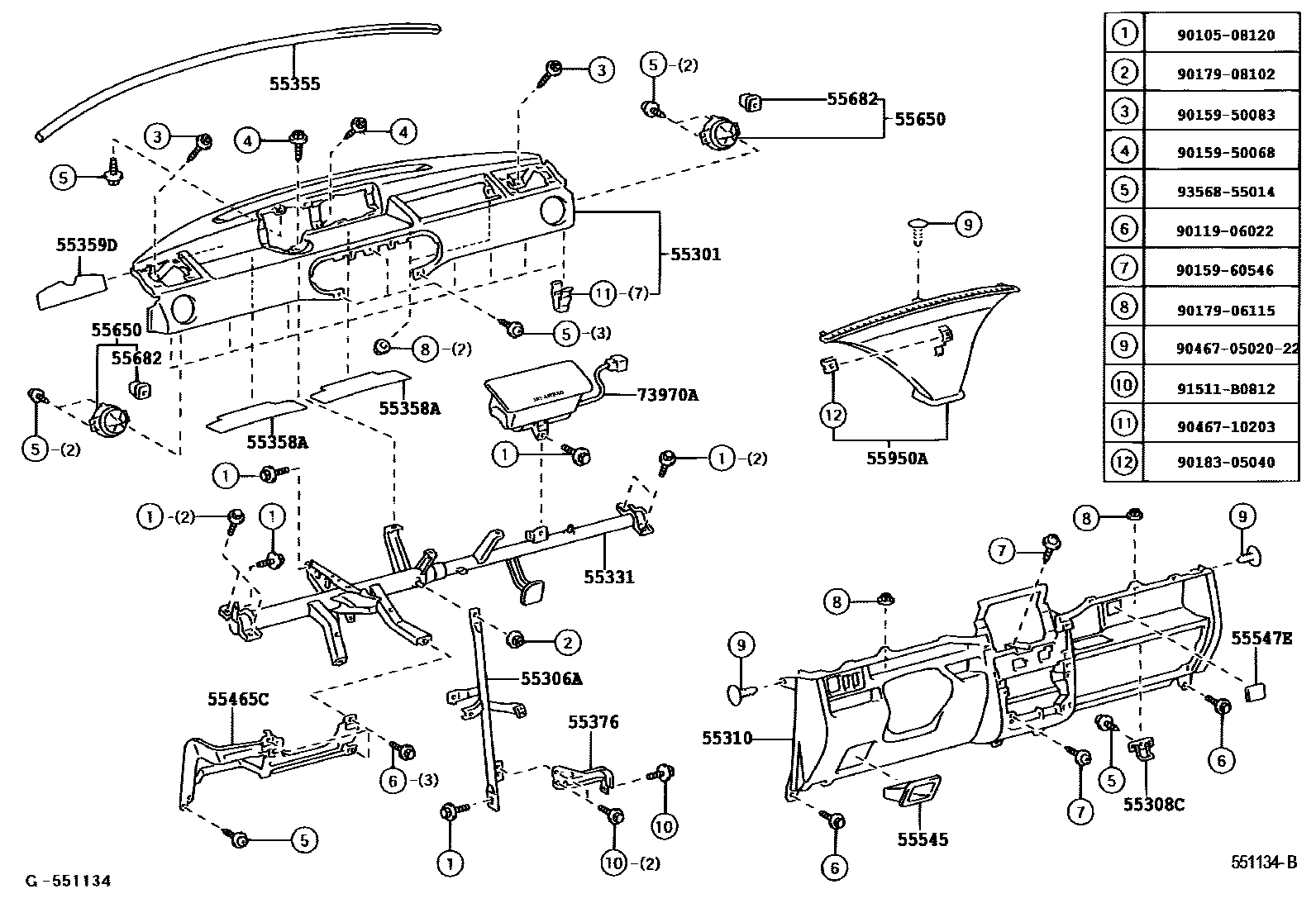

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52200-B0iNCP31200304-200612

DK.GRAY,TRIM9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52130iNCP31200304-200508

sub55306-52131

main55306-52131iNCP31200509

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52020iNCP31200304

55310PANEL ASSY, INSTRUMENT, LOWER

main55312-52040-B0iNCP31200304-200612

DK.GRAY,TRIM9#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52320iNCP31200304-200512

main55330-52321iNCP31200512

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52031iNCP31200304

55358APROTECTOR, EDGE, NO.2

main55358-52010iNCP31200304

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52030iNCP31200304

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52030iNCP31200304

55465CINSERT, INSTRUMENT PANEL LOWER PAD, LH

main55465-52040iNCP31200304-200508

sub55465-52041

main55465-52041iNCP31200509

55545COVER, FUSE BOX OPENING

main55545-52070iNCP31200304-200612

55547ECOVER, INSTRUMENT PANEL HOLE, NO.3

main55547-52010-B0iNCP31200304-200612

DK.GRAY,TRIM9#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-52010-C0iNCP31200304-200612

BLACK,TRIM9#

sub55650-52010

55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT

main55682-52010iNCP31200304

55950ANOZZLE ASSY, DEFROSTER

main55950-52100iNCP31200304

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52200-B0iNCP31200304-200612

DK.GRAY,TRIM9#

9010508120

main90105-08120

9011906022

main90119-06022

9015950068

main90159-50068

9015950083

main90159-50083

9015960546

main90159-60546

9017906115

main90179-06115

9017908102

main90179-08102

9018305040

main90183-05040

904670502022

main90467-0502022

9046710203

main90467-10203

91511B0812

main91511-B0812

9356855014

main93568-55014

28 parts on this diagram · 4 diagrams in section
