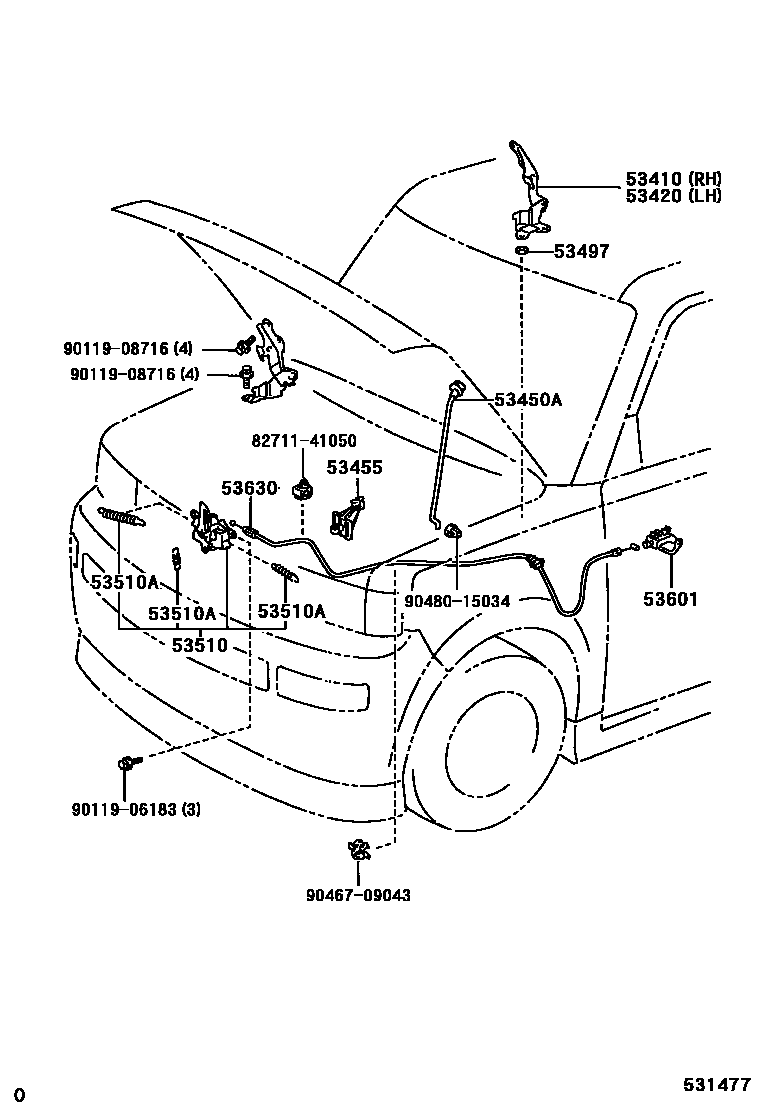

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52040iNCP31200304-200612

53420HINGE ASSY, HOOD, LH

main53420-52040iNCP31200304-200612

53450ASUPPORT ASSY, HOOD, LH

main53440-52030iNCP31200304

53455CLAMP, HOOD SUPPORT ROD

main53455-52050iNCP31200304

53497PAD, HOOD HINGE, NO.1

main53497-10020iNCP31200304

T=1.5

main53497-42010iNCP31200304

T=0.5

53510LOCK ASSY, HOOD

main53510-52250iNCP31200304-200308

main53510-52280iNCP31200308

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP31200304

WD=0.9,CW=21

main90506-12063iNCP31200304

WD=1.2,CW=8.5

main90506-16077iNCP31200304

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP31200304-200612

DK.GRAY,TRIM9#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52090iNCP31200304

8271141050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41050

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

14 parts on this diagram · 1 diagram in section
