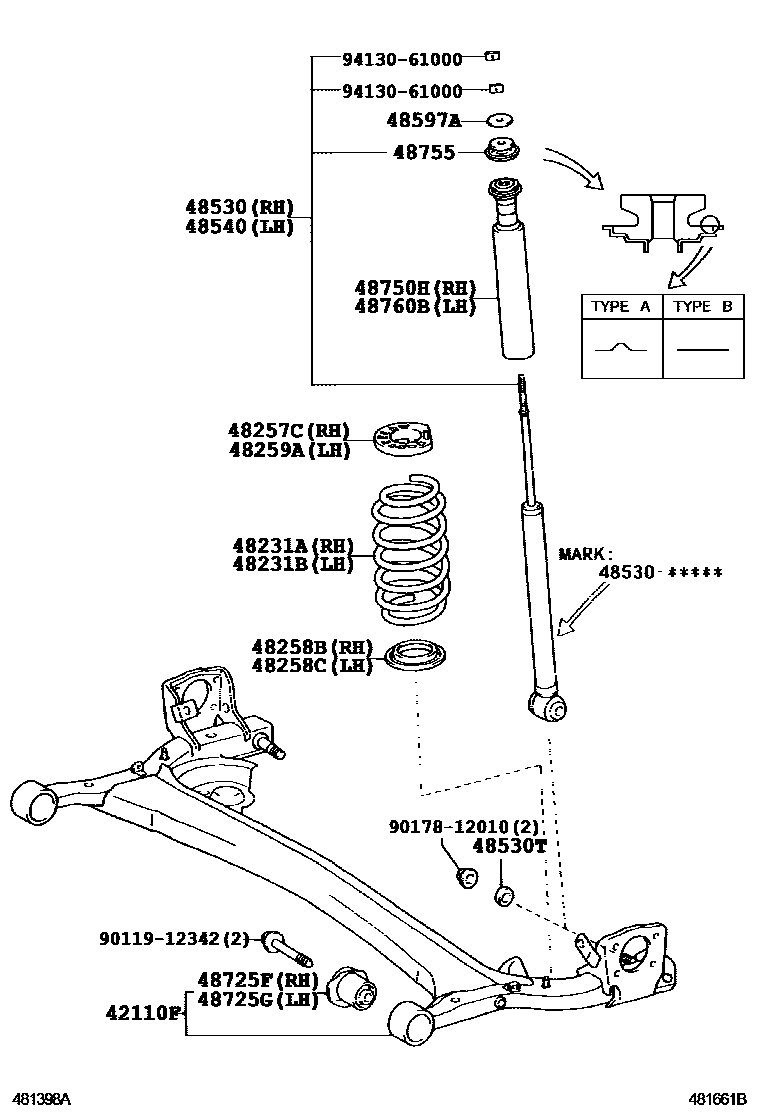

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52630
48530TSPACER(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52630
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
PNC 48755=TYPE A
PNC 48755=TYPE B
48755SUPPORT, REAR SUSPENSION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48760BSUPPORT ASSY REAR SUSPENSION, LH
PNC 48755=TYPE A
PNC 48755=TYPE B
9011912342
main90119-12342
9017812010
main90178-12010
9413061000
main94130-61000
19 parts on this diagram · 1 diagram in section
