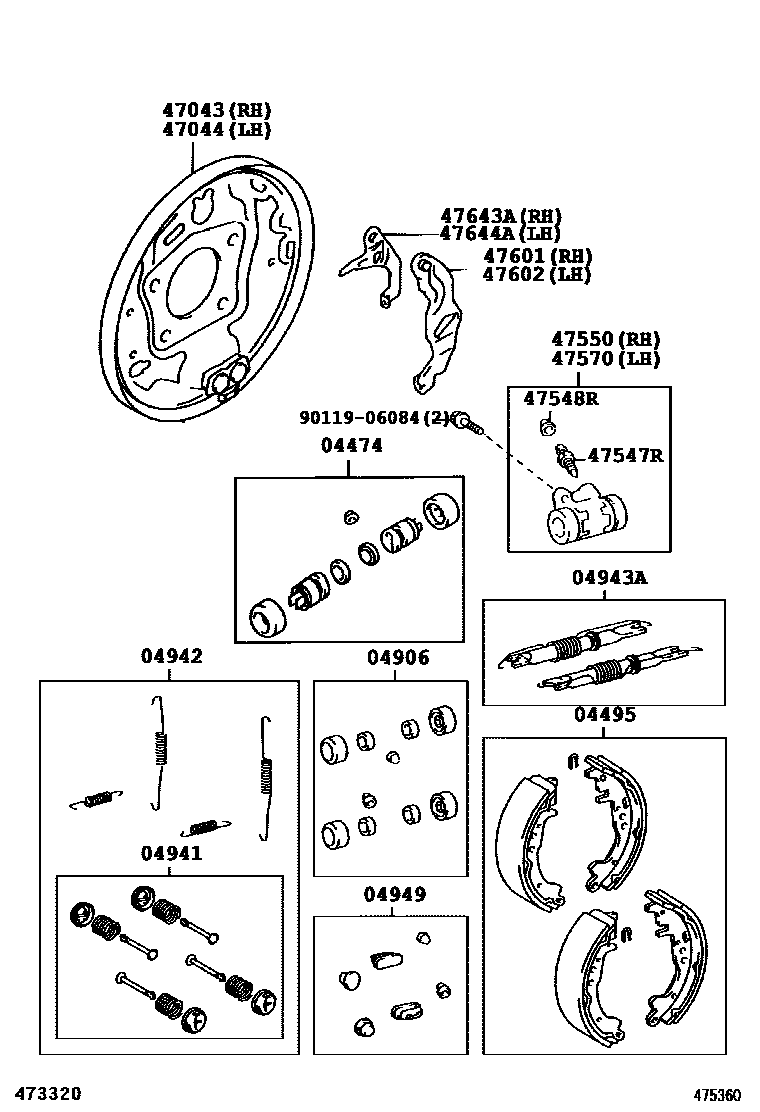

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52020iNCP31200304

04495SHOE KIT, REAR BRAKE

main04495-52040iNCP31200304

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP31200311

main04906-52020iNCP31200304-200311

sub04906-10021

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-12010iNCP31200304-200502

sub04941-46010

main04941-46010iNCP31200502

04942SPRING KIT, REAR BRAKE

main04942-12010iNCP31200304-200502

sub04942-46010

main04942-46010iNCP31200502

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNCP31200304

04949PLUG KIT, REAR BRAKE

main04949-12010iNCP31200304

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52010iNCP31200304

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52010iNCP31200304

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP31200304

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP31200304

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP31200304

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNCP31200304

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNCP31200304-200512

sub47601-52100

main47601-52100iNCP31200512

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNCP31200304-200512

sub47602-52100

main47602-52100iNCP31200512

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP31200304

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP31200304

9011906084

main90119-06084

18 parts on this diagram · 1 diagram in section
