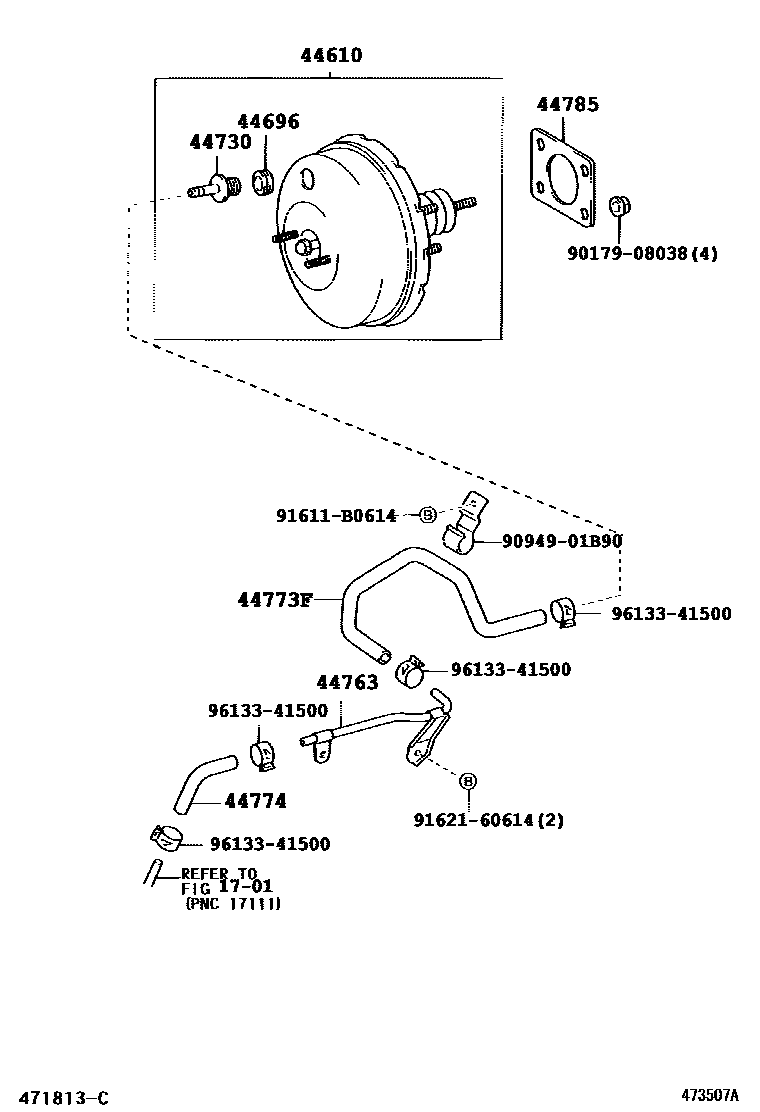

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-52340iNCP31200304-200311

sub44610-52341

main44610-52341iNCP31200311-200612

44696GROMMET, CHECK VALVE

main90480-24015iNCP31200304-200612

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP31200305-200612

main44730-30010iNCP31200304-200305

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP31200304

44773FHOSE, UNION TO CHECK VALVE

main44773-52040iNCP31200304

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP31200304

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP31200304-200612

9017908038

main90179-08038

9094901B90

main90949-01B90

91611B0614

main91611-B0614

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 1 diagram in section
