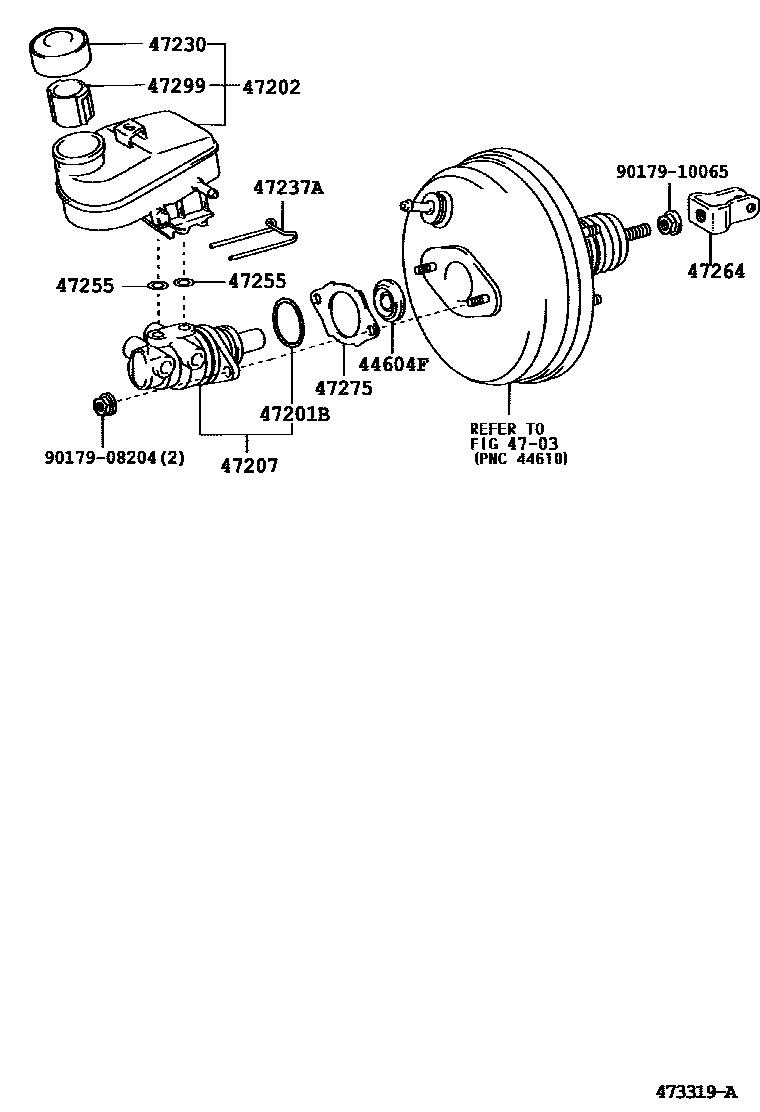

BRAKE MASTER CYLINDER

44604FSEAL, BRAKE BOOSTER BODY

main44605-48010iNCP31200304-200311

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iNCP31200311-200612

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52100iNCP31..MTM200304-200612

main47220-52130iNCP31..ATM200304-200612

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-52040iNCP31200304-200311

main47207-52041iNCP31200311

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-52030iNCP31200304-200612

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-52010iNCP31200304

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iNCP31200304-200612

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP31200304-200612

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iNCP31200304-200311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52010iNCP31200304-200612

9017908204

main90179-08204

9017910065

main90179-10065

13 parts on this diagram · 1 diagram in section
