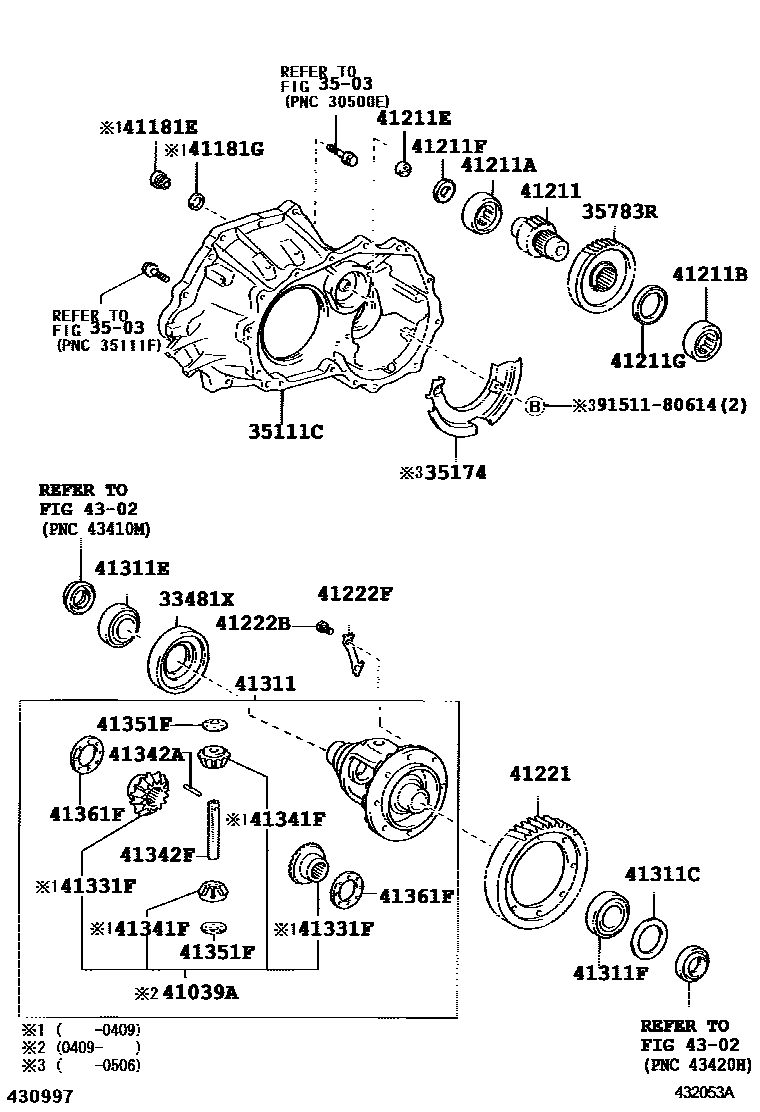

FRONT AXLE HOUSING & DIFFERENTIAL
33481XGEAR, SPEEDOMETER DRIVE
3503
35174SEPARATOR, TRANSAXLE HOUSING OIL
35783RGEAR, COUNTER DRIVEN
41039AGEAR KIT, DIFFERENTIAL
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)
41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.90,MARK 01
T=1.95,MARK 02
T=2.00,MARK 03
T=2.05,MARK 04
T=2.10,MARK 05
T=2.15,MARK 06
T=2.20,MARK 07
T=2.25,MARK 08
T=2.30,MARK 09
T=2.35,MARK 10
T=2.40,MARK 11
T=2.45,MARK 12
T=2.50,MARK 13
T=2.55,MARK 14
T=2.60,MARK 15
T=2.65,MARK 16
T=2.70,MARK 17
T=2.75,MARK 18
T=2.80,MARK 19
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
NACHI
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
4302
9151180614
main91511-80614
29 parts on this diagram · 2 diagrams in section
