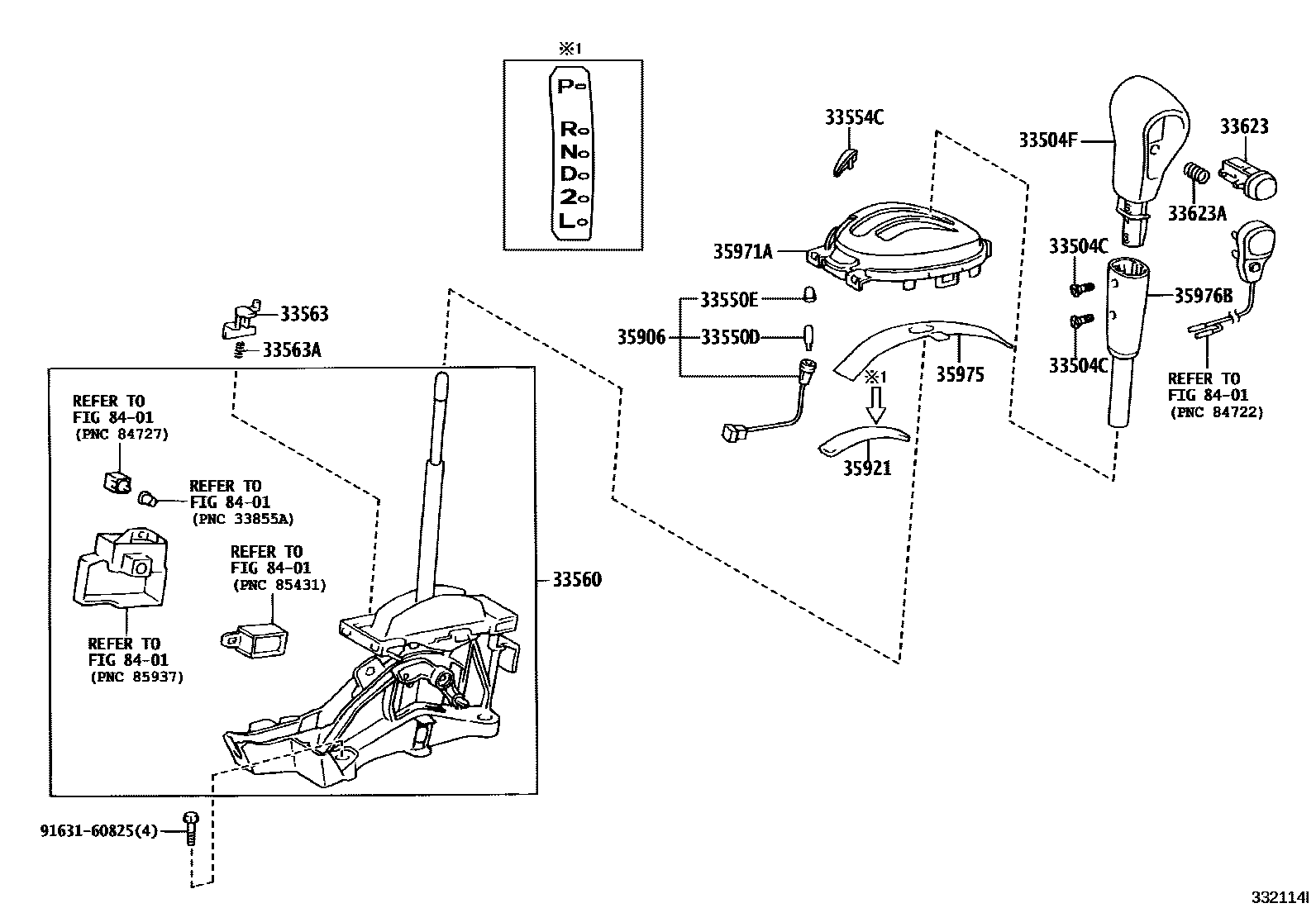

SHIFT LEVER & RETAINER
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM9#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33623BUTTON, SHIFT LEVER KNOB
DK.GRAY,TRIM9#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
DK.GRAY,TRIM9#
8401
9163160825
main91631-60825
17 parts on this diagram · 3 diagrams in section
