AIR CLEANER

1708

17700CLEANER ASSY, AIR

main17700-21050i1NZFE..NCP31200304-200508

main17700-21160i1NZFE..NCP31200508

17705CAP SUB-ASSY, AIR CLEANER

main17705-21030i1NZFE..NCP31200304-200307

sub17705-21031

main17705-21031i1NZFE..NCP31200307-200508

main17705-21070i1NZFE..NCP31200508

17751INLET, AIR CLEANER, NO.1

main17751-21040i1NZFE..NCP31200304

17752INLET, AIR CLEANER, NO.2

main17752-21020i1NZFE..NCP31200304

17754STAY, AIR CLEANER INLET

main17754-21020i1NZFE..NCP31200304

17771ABRACKET, AIR CLEANER

main17771-21010i1NZFE..NCP31200304

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NZFE..NCP31200304

17881HOSE, AIR CLEANER, NO.1

main17880-21060i1NZFE..NCP31200304

sub17880-21061

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i1NZFE..NCP31200304

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NCP31200508

(L)

main22204-22010i1NZFE..NCP31200304-200508

main22204-22010i1NZFE..NCP31200508

(J)

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NCP31200304

9009900289

main90099-00289

9011906859

main90119-06859

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9331315016

main93313-15016

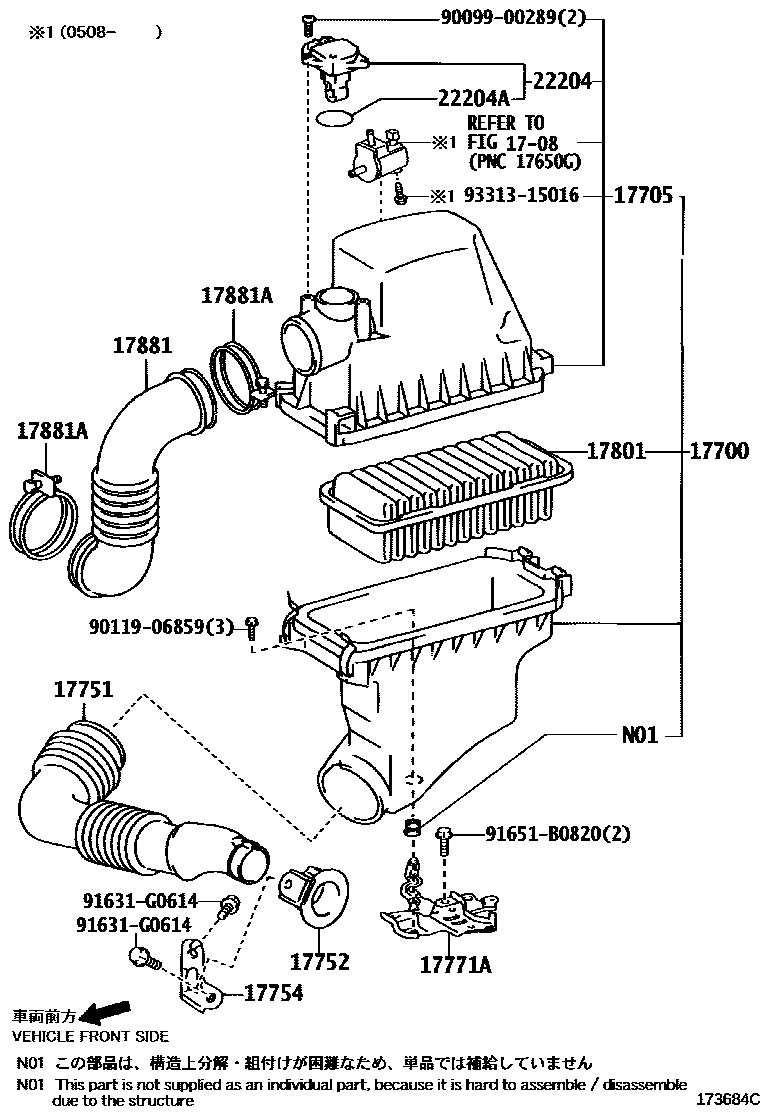

17 parts on this diagram · 1 diagram in section
