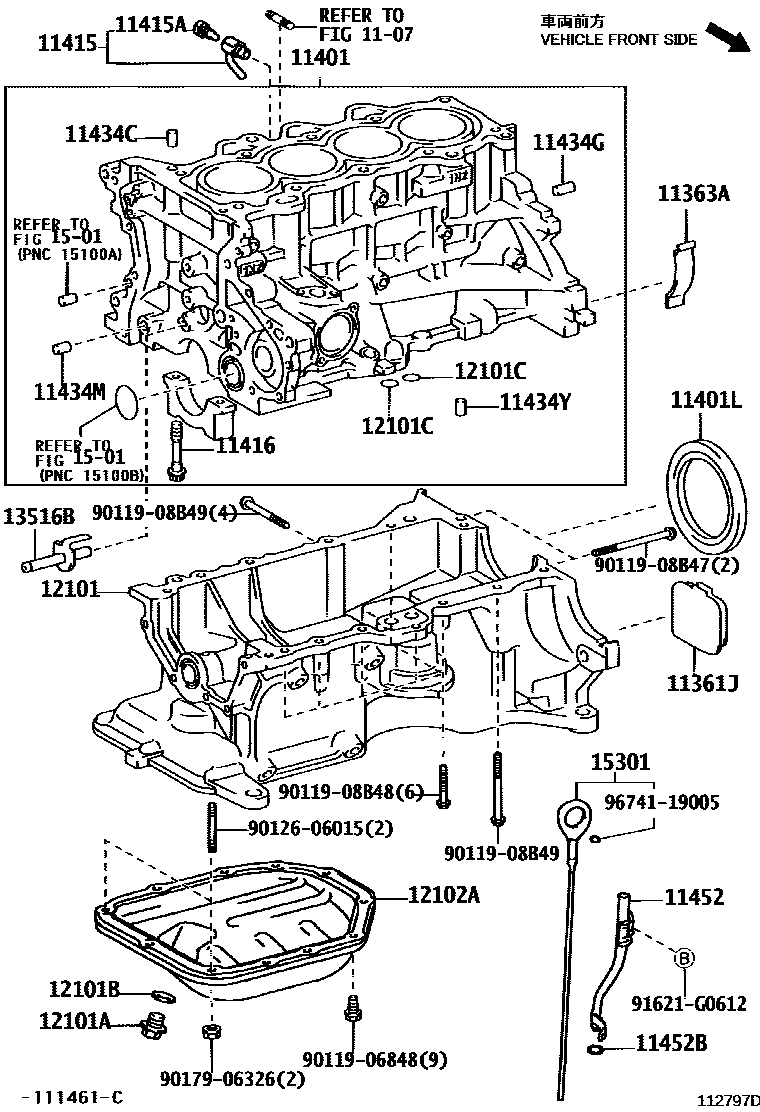

CYLINDER BLOCK

1107

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE..NCP31¥490200304

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFE..NCP31¥350200304

11401BLOCK SUB-ASSY, CYLINDER

main11401-29855i1NZFE..NCP31¥182,000200304

sub11401-29856¥182,000

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFE..NCP31¥1,390200304

sub90311-75019¥1,390

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFE..NCP31¥610200304

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZFE..NCP31¥230200304

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125i1NZFE..NCP31¥220200304

sub90910-02207¥160

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE..NCP31¥140200304

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i1NZFE..NCP31¥120200304

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFE..NCP31¥160200304

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i1NZFE..NCP31¥140200304

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NCP31¥1,300200304

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1NZFE..NCP31¥190200304

12101PAN SUB-ASSY, OIL

main12111-21033i1NZFE..NCP31¥42,200200304

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFE..NCP31¥160200304

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFE..NCP31¥90200304

12101CRING, O(FOR OIL PAN)

main96722-24020i1NZFE..NCP31¥140200304

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFE..NCP31¥3,780200304

13516BJET, OIL

main13516-21010i1NZFE..NCP31¥590200304-200612

sub13516-21011¥360

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE..NCP31¥1,200200304

sub15301-21040¥1,200

9011906848

main90119-06848¥60

9011908B47

main90119-08B47¥190

9011908B48

main90119-08B48¥100

9011908B49

main90119-08B49¥160

9012606015

main90126-06015¥110

9017906326

main90179-06326¥60

91621G0612

main91621-G0612¥120

9674119005

main96741-19005¥140

30 parts on this diagram · 1 diagram in section
