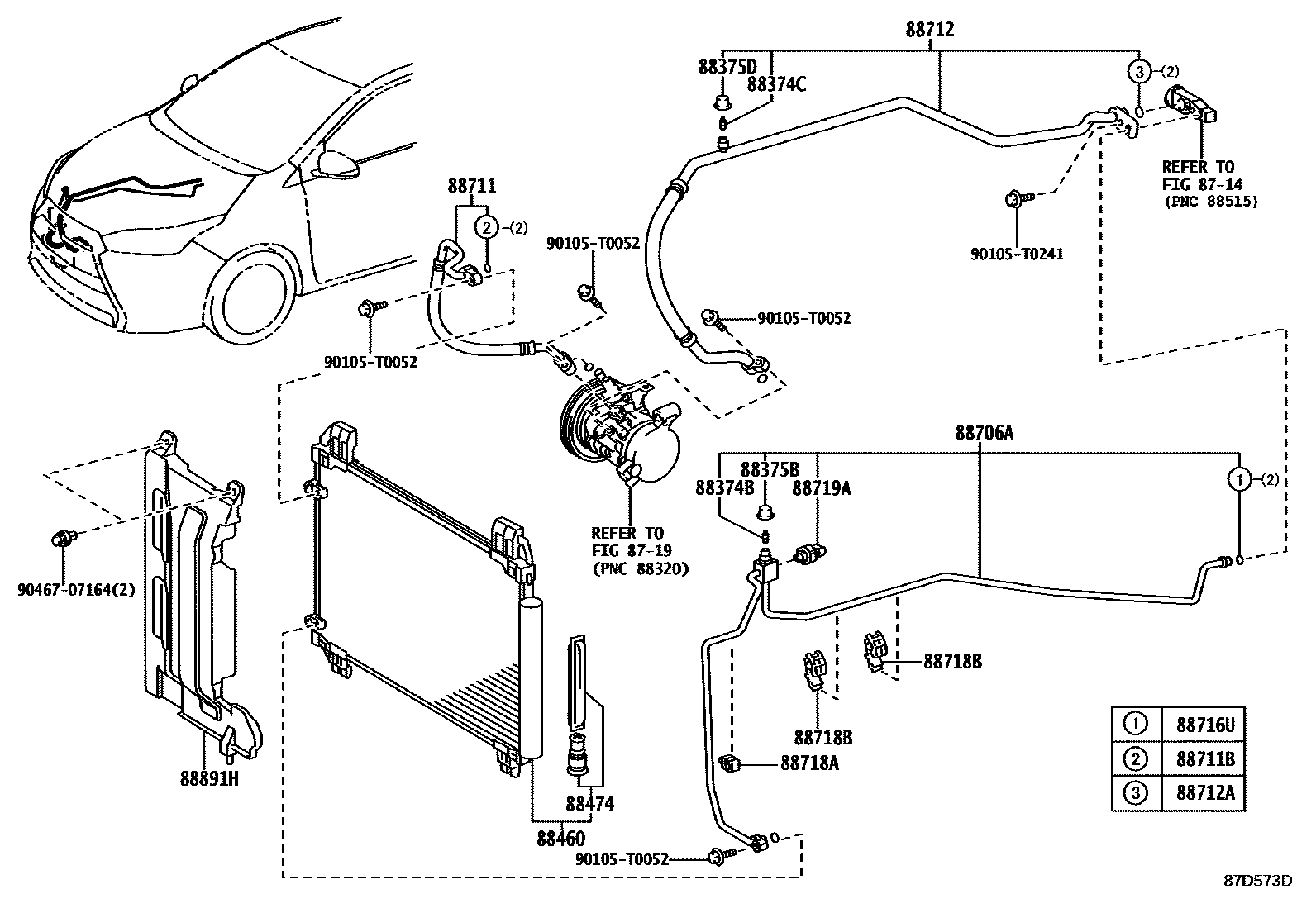

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1DEALER OPTION 0006 1MAKER OPTION 0009 1DEALER OPTION

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02010iNSP150,151..H201806-201910

main88374-30010iNSP151..F201403-202302

main88374-33010iNCP15#,NSP152..GCC,GEN,PH,TH,VN201310-201708

main88374-33070iNSP151..B201904-202011

88374CVALVE, SERVICE, NO.2

main88374-02010iNSP150,151..H201806-201910

main88374-30010iNCP150..C201310-202302

88375BCAP, SERVICE VALVE, NO.1

main88375-02120iNSP150,151..H201806-201910

main88375-30280iNSP151..F201310-202302

88375DCAP, SERVICE VALVE, NO.2

main88375-02130iNSP150,151..H201806-201910

main88375-30290iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201310-202302

88460CONDENSER ASSY, COOLER

main88460-0D290iNSP15#..GEN,PH,TH,VN201310-201708

main88460-0D310iNCP15#..GCC201403-201606

main88460-0D340iNSP151..TAIW201409-201802

main88460-0D370iNCP150..4FC..IDN..(G,R)201403-201609

SINGAPORE & BRUNEI SPEC

main88460-0D370iNCP150..4FC..IDN..(G,R)201403-201712

BRUNEI SPEC

main88460-0D470iNSP150,151..H201806-201910

main88460-0D530iNSP150,151..GCC201607-201708

main88460-0D560iNSP150,151..GCC201710-202302

main88460-0D570iNSP150..LHD..GEN;NSP151,152..(GEN,TH,VN)..A201709-202302

main88460-0D580iNSP151..F201804-202101

main88460-0D600iNSP151..(G,V)..C201802-202109

main88460-0D640iNSP151..B201904-202011

88474DRYER, COOLER

main88474-12010iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

main88474-17010iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN201310-201802

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0D500iNCP151..RHD201403-201606

main88706-0D510iNCP15#..LHD..(GEN,PH,VN)201403-201606

LATIN AMERICA SPEC

main88706-0D520iNSP152201310-201708

main88706-0D530iNCP15#..GCC201403-201606

main88706-0D560iNCP150..TAIW201409-201604

main88706-0D590iNCP150..C201403-201609

main88706-0D740iNSP150..RHD201607-201707

sub88706-0D741

main88706-0D750iNSP150,151..LHD..(GEN,PH,VN)201607-201708

main88706-0D760iNSP151..C201610-201712

main88706-0D780iNSP151..TAIW201605-201802

main88706-0D880iNSP150,151..H201806-201910

main88706-0DA00iNSP150,151..GCC201607-201708

main88706-0DA30iNSP152201709-202302

main88706-0DA80iNSP150,151..GCC201710-202302

main88706-0DA90iNSP150..5F..PH201710-202302

main88706-0DB00iNSP151..SA201710-202207

main88706-0DB10iNSP151..F201804-202101

main88706-0DB20iNSP151..(G,V)..C201802-202109

main88706-0DC10iNSP151..B201904-202011

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D400iNCP15#..GEN,PH,VN201403-201606

LATIN AMERICA SPEC

main88711-0D410iNSP152201310-201708

main88711-0D420iNCP15#..GCC201403-201606

main88711-0D450iNCP150..TAIW201409-201604

main88711-0D480iNCP150..C201403-201609

sub88711-0D400

main88711-0D580iNSP150,151..GEN,PH,VN201607-201708

sub88711-0D581

main88711-0D590iNSP151..C201610-201712

main88711-0D600iNSP151..TAIW201605-201802

main88711-0D700iNSP150,151..H201806-201910

main88711-0D740iNSP150,151..GCC201607-201708

main88711-0D770iNSP152201709-202302

main88711-0D780iNSP150,151..GCC201710-202302

main88711-0D790iNSP150,151..LHD..(GEN,VN)..A201710-202302

main88711-0D800iNSP151..F201804-202101

main88711-0D820iNSP151..CVT..R..C201802-202109

main88711-0D880iNSP151..B201904-202011

88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

main90099-14120iNSP151..B201904-202011

ID=10.8,OD=15.6

main90099-14120iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN201310-202302

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D490iNCP151..RHD201403-201606

main88712-0D500iNCP15#..LHD..(GEN,PH,VN)201403-201606

LATIN AMERICA SPEC

main88712-0D510iNSP152201310-201708

main88712-0D520iNCP15#..GCC201403-201606

main88712-0D550iNCP150..TAIW201409-201604

main88712-0D710iNCP150..C201403-201609

main88712-0D760iNSP151..PH,SA;NSP150..CVT..PH201607-202302

main88712-0D770iNSP151..C201610-201911

main88712-0D780iNSP151..TAIW201605-202101

main88712-0D800iNSP151..B201904-202011

main88712-0D810iNSP151..CVT..R..C201911-202109

main88712-0D820iNSP150,151..GCC201607-202302

main88712-0D860iNSP150,151..H201806-201910

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iNSP151..F201310-202302

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90099-14119iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201310-202302

main90099-14119iNSP151..B,F201804-202101

ID=6.7,OD=10.3

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-0D210iNSP150..RHD;NSP150..5F..PH201310-202302

main88718-0D240iNSP151..TAIW201409-202101

main88718-0D290iNSP151..B201904-202011

main88718-0D460iNSP150,151..H201806-201910

main88718-0D500iNSP151..CVT..R..C201403-202109

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-0D540iNCP15#..GEN,PH,VN201310-201708

main88718-0D550iNCP15#..5F..D201403-201606

LATIN AMERICA SPEC&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER(DOP))

main88718-0D550iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201403-202302

main88718-0D600iNCP150..TAIW201409-201604

main88718-0D640iNCP150..C201403-201609

main88718-0D650iNSP151..5F..R..C201610-202109

main88718-0D790iNSP151..F201605-202101

main88718-0D810iNSP151..B201904-202011

main88718-0DA40iNSP150,151..H201806-201910

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNSP151..F201310-202302

88891HCOVER, COOLER, NO.1

main88891-0D220iNCP15#..GEN,PH,VN201403-201408

sub88891-0D290

main88891-0D260iNCP150..TAIW201409-201604

main88891-0D270iNCP150..C201403-201407

BRUNEI SPEC

sub88891-0D310

main88891-0D270iNCP150..C201403-201407

SINGAPORE & BRUNEI SPEC

sub88891-0D310

main88891-0D290iNCP15#..GEN,PH,VN201310-202302

main88891-0D310iNCP150..4FC..IDN..(G,R)201408-201609

BRUNEI SPEC

main88891-0D310iNCP150..4FC..IDN..(G,R)201408-201609

SINGAPORE & BRUNEI SPEC

main88891-0D320iNSP150,151..LHD..(GEN,VN)..A201607-202302

main88891-0D330iNSP151..CVT..G..C201802

BRUNEI SPEC

main88891-0D330iNSP151..C201610-201712

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88891-0D330iNSP151..C201610-201712

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88891-0D330iNSP151..5F..R..C201802-202109

main88891-0D340iNSP151..F201605-202101

main88891-0D360iNSP151..B201904-202011

main88891-0D440iNSP150,151..H201806-201910

main88891-0D460iNSP150,151..GCC201607-202302

90105T0052

main90105-T0052

90105T0241

main90105-T0241

9046707164

main90467-07164

21 parts on this diagram · 7 diagrams in section
