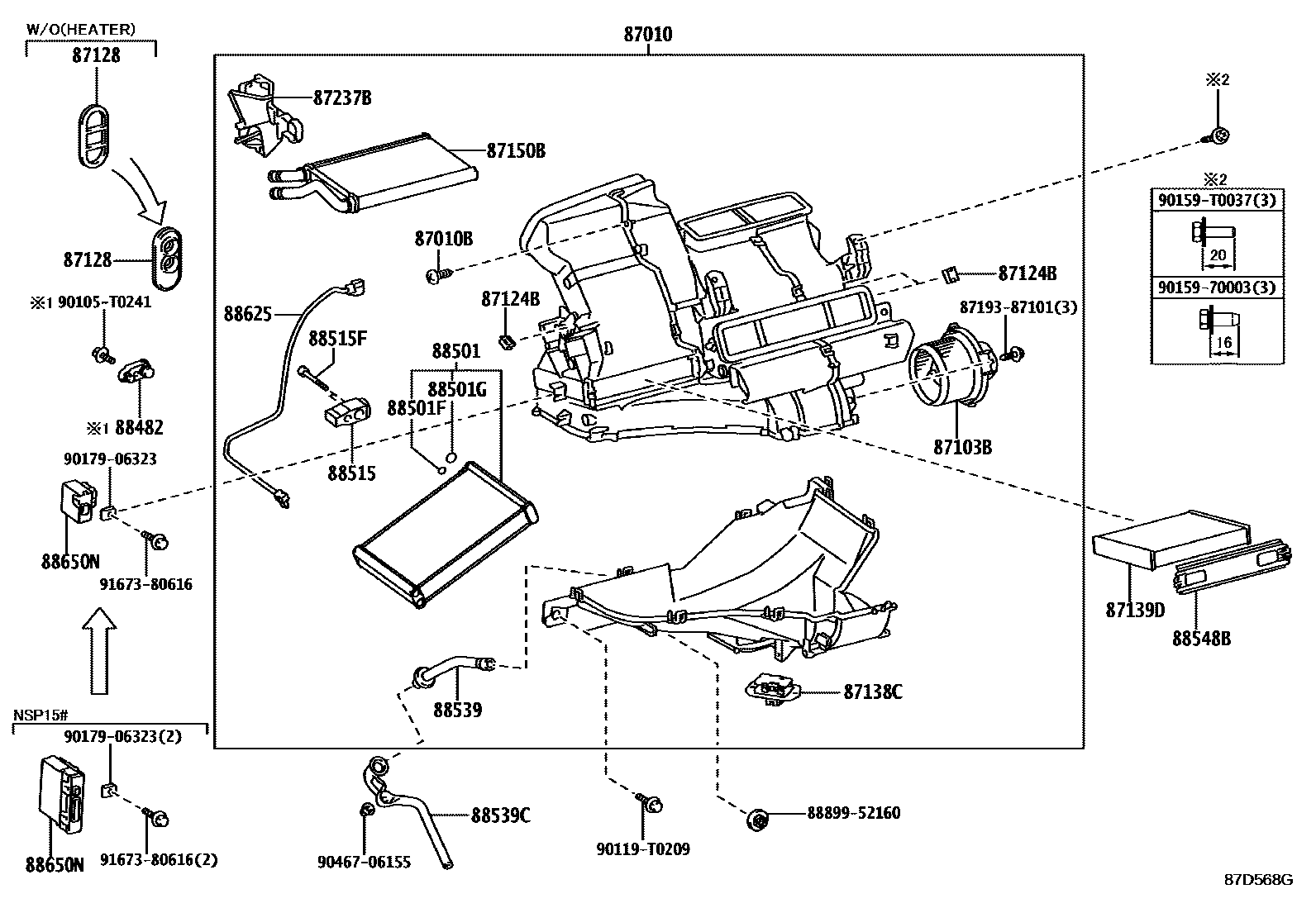

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO BOOST VENTILATOR 0004 1MANUAL BOOST VENTILATOR 0006 1AUTO AIR CONDITIONER 0009 1MANUAL AIR CONDITIONER 0012 1AUTO COOLER 0015 1MANUAL COOLER 0018 1AUTO AIR CONDITIONER 0020 1MANUAL AIR CONDITIONER 0022 1BOOST VENTILATOR 0024 1AUTO AIR CONDITIONER 0027 1AUTO AIR CONDITIONER 0028 1MANUAL AIR CONDITIONER 0031 1MANUAL AIR CONDITIONER 0032 1AUTO COOLER 0034 1MANUAL COOLER 0036 1HEATER ONLY

87010UNIT ASSY, AIR CONDITIONER

main87010-0D770iNCP151..RHD201403-201606

main87010-0D780iNCP15#..LHD..(GEN,VN)..(D,R)201403-201606

main87010-0D800iNCP15#..PH201403-201606

main87010-0D810iNCP151..4FC..(GEN,VN)..G201403-201606

main87010-0D830iNCP15#..GCC201403-201606

main87010-0DA10iNCP150..TAIW201409-201604

main87010-0DB70iNCP150..(G,R)..C201403-201609

main87010-0DB80iNCP150..4FC..IDN..G201403-201609

BRUNEI SPEC

main87010-0DC70iNSP152201310-201708

main87010-0DE70iNSP150..RHD201607-201708

main87010-0DE80iNSP150,151..LHD..(GEN,VN)..(D,R)201607-201708

main87010-0DE90iNSP150,151..CVT..(GEN,VN)..G201607-201708

main87010-0DF00iNSP150,151..GCC201607-201708

main87010-0DF20iNSP150,151..PH201607-201708

main87010-0DF40iNSP151..TAIW201605-201802

main87010-0DF70iNSP151..(G,R)..C201610-201712

main87010-0DF80iNSP151..CVT..G..C201610-201712

BRUNEI SPEC

main87010-0DG40iNSP150..R..H201806-201903

XL-PLUS PACKAGE

sub87010-0DG41

main87010-0DG41iNSP151..(BZ,GEN)..(G,V)201904-201910

XL-PLUS PACKAGE

main87010-0DG60iNSP150,151..(BZ,GEN)..(D,R)..H201806-201903

sub87010-0DG61

main87010-0DG61iNSP150,151..(BZ,GEN)..(D,R)..H201904-201910

main87010-0DJ10iNSP151..PH201710-202207

main87010-0DK50iNSP151..(G,V)..B201904-202011

main87010-0DK60iNSP150,151..LHD..GEN..(D,R)..A201902-202302

main87010-0DK70iNSP150..CVT..GEN..G201902-202302

main87010-0DM10iNSP150,151..RHD..(D,G,R)..A201710-201811

main87010-0DM11iNSP150..RHD201811-202207

main87010-0DM20iNSP150,151..LHD..GEN..(D,R)..A201710-202008

main87010-0DM30iNSP151..VN..G201710-202302

main87010-0DM40iNSP150,151..GCC201710-202302

main87010-0DM80iNSP152201709-202302

main87010-0DN00iNSP151..SA..V201710-201811

main87010-0DN01iNSP151..V..A201811-202207

main87010-0DN80iNSP151..F201804-202101

main87010-0DP20iNSP151..5F..G;NSP151..CVT..(G,R)..C201802-202108

main87010-0DP30iNSP151..V..C201802

BRUNEI SPEC

main87010-0DQ00iNSP151..AGT..(G,V)201806-201903

sub87010-0DQ01

main87010-0DQ01iNSP151..AGT..(G,V)201904-201910

main87010-0DQ10iNSP151..R..H201806-201903

sub87010-0DQ11

main87010-0DQ11iNSP151..R..H201904-201910

main87010-0DQ60iNSP151..(D,R)..B201904-202011

main87010-0DQ70iNSP150..CVT..PH201710-202207

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020iNCP15#..PH201403-201606

G-HIGH PACKAGE

main88718-0A020iNSP152201310-201708

G PACKAGE

main90068-00042iNSP151..PH201710-202302

main90068-00042iNSP152201709-202302

ECO PACKAGE

main90094-90426iNSP150..R..H201806-201910

XL-PLUS PACKAGE

main90099-00317iNSP151..F201804-202101

main90099-00968iNSP151..V..C201403-201712

BRUNEI SPEC

main90099-00968iNSP151..(D,R)..B201802-202108

main90099-00968iNSP150,151..PH201607-201708

G-HIGH PACKAGE

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D280iNSP150,152..RHD201310-202302

main87103-0D290iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-202302

main87103-0D310iNSP151..B201904-202011

main87103-0D330iNSP151..F201409-202101

main87103-0D360iNSP151..C201403-202108

main87103-0D450iNSP150,151..H201806-201910

87124BCLAMP, HEATER

main87124-0D110iNSP150,151..(D,R)..H201806-201910

main87124-0D160iNSP151..SA..(D,R)201310-202302

main87124-0D170iNSP151..(D,R)..B201904-202011

main87124-0D190iNSP151..TAIW201409-202101

main87124-0D310iNSP151..(G,R)..C201403-202108

87128GROMMET, HEATER

main87128-0D090iNCP15#..GCC,GEN,VN201403-201701

sub87128-0D091

main87128-0D091iNSP150..RHD201702-202302

main87128-0D100iNSP15#..PH,TH201310-202302

main87128-0D110iNSP151..B201904-202011

main87128-0D130iNCP150..TAIW201409-201701

sub87128-0D131

main87128-0D131iNSP151..F201702-202101

main87128-0D150iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main87128-0D220iNSP150,151..H201806-201910

87138CRESISTOR, BLOWER

main87138-0D070iNSP151..TAIW201409-202101

main87138-0D150iNCP151..RHD201310-201708

main87138-0D160iNSP150,151..GCC201403-202302

main87138-0D300iNCP150..(G,R)..C201403-201407

sub87138-0D330

main87138-0D330iNCP150..(G,R)..C201408-202108

main87138-0D340iNSP151..(D,R)..B201904-202011

main87138-0D350iNSP150,151..(D,R)..H201806-201910

main87138-0K090iNSP151..VN..R;NSP151..GEN,PH;NSP150..LHD..(GEN,PH)..(D,R)201408-202302

sub87138-0K290

main87138-0K110iNSP151..SA..(D,R)201408-202207

87139DELEMENT, AIR REFINER

main87139-02130iNSP150,151..GCC201904-202302

POLLEN FILTER

main87139-02150iNSP150,151..H201806-201910

DUST FILTER

main87139-02150iNSP150,151..H201904-201910

OE PART

main87139-06070iNSP151..TAIW201409-202101

DUST FILTER

main87139-06080iNSP150..LHD..GEN;NSP151,152..(GEN,TH,VN)..A201310-202302

DUST FILTER

main87139-0D050iNCP150..MA201403-202011

DUST FILTER

main87139-0D130iNSP150,151..CVT..PH201403-202207

DUST FILTER

main87139-0D170iNCP150..IDN201403-202108

DUST FILTER

main87139-50100iNCP150..TAIW201310-202302

*DPF

87150BRADIATOR ASSY, HEATER

main87150-0D140iNSP150..RHD201403-202302

main87150-0D160iNSP151..F201409-202101

main87150-0D210iNSP150,151..(BZ,GEN)..H201806-201910

main87150-0D240iNSP151..AGT201806-201910

87237BCOVER, HEATER PIPING

main87237-0D040iNSP151..SA201403-202207

main87237-0D050iNSP150,151..LHD..(GCC,GEN,VN)..A201403-202302

main87237-0D070iNSP151..F201409-202101

main87237-0D120iNSP150,151..H201806-201910

88482CAP, COOLER

main88482-0K010iNSP151..CVT..R..C202109

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D240iNCP15#..GEN,PH,VN201403-201606

sub88501-0D250

main88501-0D250iNCP15#..GCC201310-201708

main88501-0D280iNCP150..TAIW201409-201604

main88501-0D320iNCP150..C201403-201609

main88501-0D370iNSP150,151..LHD..(GEN,VN)..A201607-202302

main88501-0D380iNSP150,151..GCC201607-202302

main88501-0D400iNSP151..TAIW201605-202101

main88501-0D460iNSP150,151..H201806-201910

main88501-0D510iNSP150,151..CVT..PH201607-202207

main88501-0D520iNSP151..C201610-202108

main88501-0D530iNSP151..B201904-202011

main88501-0D570iNSP152201709-202302

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14044iNSP150..GCC;NSP151..GCC..R;NSP151..(GCC,VN)..G201710-202302

ID=10.2,OD=15.0

main90099-14120iNCP150..C201310-202108

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14043iNSP151..PH201710-202302

ID=13.4,OD=18.2

main90099-14121iNSP150,151..RHD..A201310-202108

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D170iNCP150..TAIW201409-201604

sub88515-02700

main88515-0D240iNSP152201310-201708

main88515-0D300iNCP150..C201403-201609

main88515-0D370iNSP151..C201812-201910

sub88515-0D580

main88515-0D390iNSP151..TAIW201605-201910

sub88515-0D590

main88515-0D400iNSP150,151..H201806-201910

sub88515-0D630

main88515-0D440iNSP151..B201904-201910

sub88515-0D610

main88515-0D490iNSP15#..PH,TH201607-201803

main88515-0D500iNSP151..C201610-201812

main88515-0D570iNSP151..PH,SA;NSP150..CVT..PH201911-202302

main88515-0D580iNSP151..(G,V)..C;NSP151..CVT..R..C201911-202108

main88515-0D590iNSP151..F201911-202101

main88515-0D610iNSP151..B201911-202011

main88515-0K100iNSP15#..PH,TH201607-201910

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04057iNSP150,151..GCC,GEN,PH,VN201607-202302

main90099-04630iNSP151..CVT..R..(B,C);NSP151..(D,G,V)..(B,C,H);NSP150,151..(AGT,BZ)..(D,R)201310-202108

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D290iNSP150..RHD201310-202302

main88539-0D300iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-202302

main88539-0D310iNSP151..B201904-202011

main88539-0D330iNSP151..F201409-202101

main88539-0D420iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main88539-0D560iNSP150,151..H201806-201910

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D160iNSP150,151..H201806-201910

main88539-0D340iNCP151..RHD201310-202302

main88539-0D350iNSP150,151..LHD..(GCC,GEN,VN)..A201403-202302

main88539-0D360iNSP151..B201904-202011

main88539-0D380iNSP151..TAIW201409-202101

main88539-0D440iNSP151..5F..R..C201403-202108

88548BCASE, AIR FILTER

main88548-0D160iNSP150..RHD;NSP150..5F..PH201310-202302

main88548-0D180iNSP151..B201904-202011

main88548-0D200iNSP151..TAIW201409-202101

main88548-0D230iNCP150..C201403-202108

main88548-0D260iNSP150,151..H201806-201910

88625THERMISTOR, COOLER, NO.1

main88620-0D050iNSP150..5F..PH201310-202302

main88620-0D070iNSP151..(D,R)..B201904-202011

main88620-0D090iNSP151..F201409-202101

main88620-0D120iNSP151..(G,R)..C201403-202108

main88620-0D130iNCP150..4FC..IDN..G201403-201609

BRUNEI SPEC

main88620-0D140iNSP151..(G,V)..B201904-202011

main88620-0D170iNSP150,151..(D,R)..H201806-201910

main88620-0D190iNSP152201709-202302

main88620-0D200iNSP150..RHD201710-202302

main88620-0D200iNSP150..RHD;NSP150,151..CVT..(GEN,VN)..G201607-201708

G-HIGH PACKAGE

main88620-0D260iNSP151..CVT..G..C201610-201712

BRUNEI SPEC

main88620-0D360iNSP151..(G,V)..H201806-201910

XL-PLUS PACKAGE

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D430iNCP150..4FC..R..C201403-201609

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D430iNCP15#..PH201403-201606

main88650-0D430iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC

main88650-0D430iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D430iNCP150..(G,R)..C201403-201609

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D430iNCP150..(G,R)..C201403-201609

BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88650-0D440iNSP152201310-201607

main88650-0D450iNCP151..5F..G;NCP151..GCC..G;NCP150..GCC,GEN;NCP151..(GCC,GEN,VN)..(D,R)201403-201606

LATIN AMERICA SPEC

main88650-0D460iNCP150..V..C201403-201609

BRUNEI SPEC

main88650-0D480iNCP151..4FC..(GEN,VN)..G201403-201606

main88650-0D500iNCP150..TAIW201409-201604

main88650-0D650iNSP151..(G,R)..C201607-201712

main88650-0D660iNSP151..CVT..G..C201610-201712

BRUNEI SPEC

main88650-0D670iNSP151..TAIW201605-201802

main88650-0D680iNSP150,151..CVT..(GEN,VN)..G201607-201708

main88650-0D770iNSP151..G..C;NSP151..CVT..(D,R)..(B,C)201710-202207

main88650-0D780iNSP151..F201710-202302

main88650-0D790iNSP151..PH201710-202207

main88650-0D800iNSP150,151..CVT..(GEN,VN)..G..A201710-202302

main88650-0D810iNSP151..SA..V201710-202207

main88650-0D820iNSP151..V..C;NSP152..HTWC;NSP151..(G,V)..B201709

main88650-0D870iNSP150,151..(D,R)..H201806-201910

main88650-0D880iNSP151..(G,V)..H201806-201910

XL-PLUS PACKAGE

main88650-0DB10iNSP152201911-202302

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

90105T0241

main90105-T0241

90119T0209

main90119-T0209

9015970003

main90159-70003

90159T0037

main90159-T0037

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

29 parts on this diagram · 17 diagrams in section
