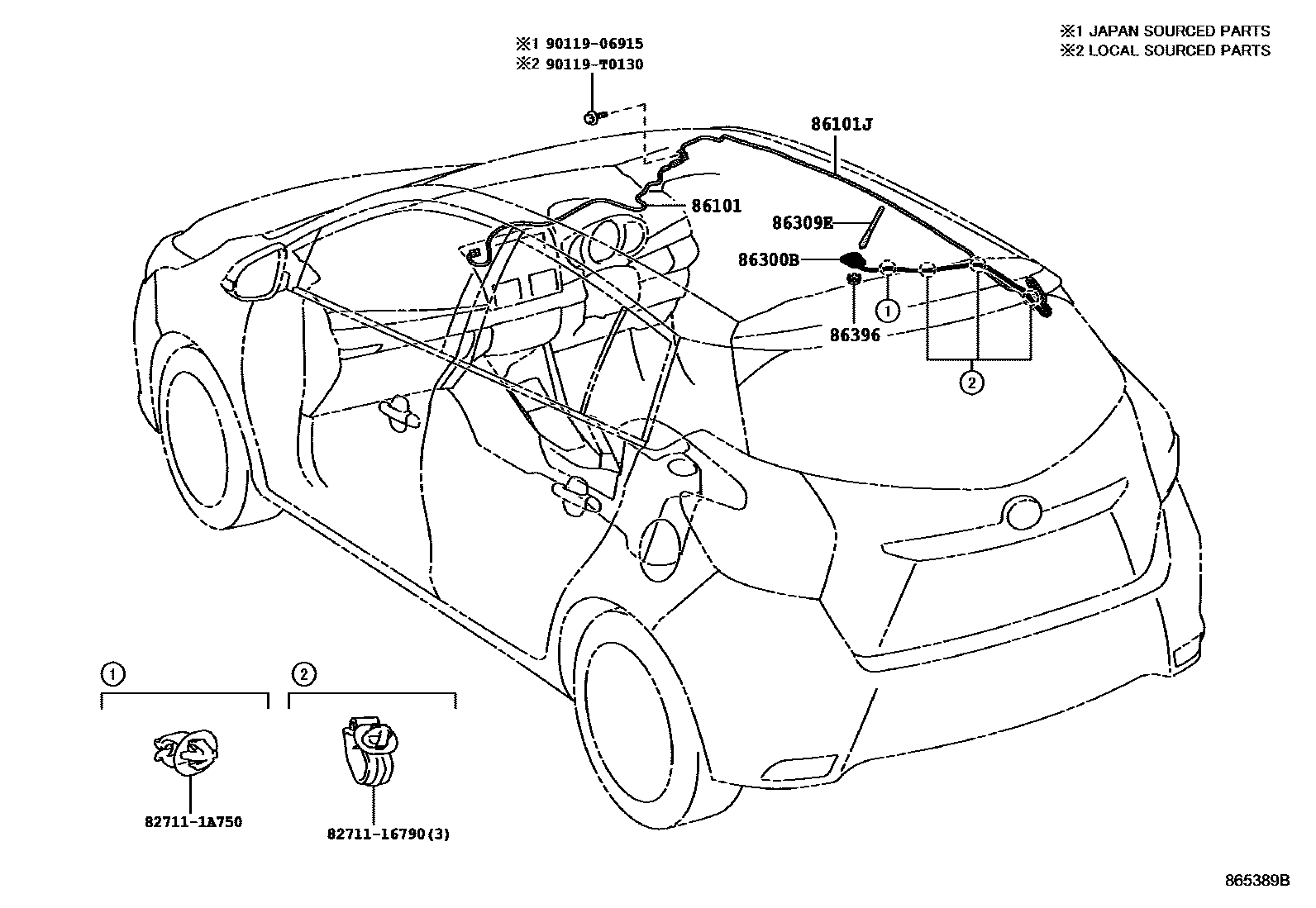

ANTENNA

0001 1 0006 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D510iNSP150,152..RHD201310-201708

main86101-0D520iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-201708

main86101-0D570iNCP150..C201403-201712

main86101-0D580iNCP150..TAIW201409-201802

main86101-0D600iNSP150,151..H201806-201910

main86101-0DA30iNSP150,151..LHD..(GCC,GEN,VN)..A201710-202302

main86101-0DA40iNSP151..F201804-202101

main86101-0DA60iNSP152201709-202302

main86101-0DA70iNSP151..CVT..R..(B,C);NSP151..(D,G,V)..(B,C)201802-202108

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D500iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main86101-0D560iNSP151..C201403-201802

main86101-0D880iNSP150..RHD;NSP150..5F..PH201709-202302

main86101-0DA00iNSP151..5F..R..C201802-202108

main86101-0DA10iNSP150,151..H201806-201910

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D280iNCP15#..GCC,GEN,PH,VN201310-201708

main86300-0D310iNCP150..C201403-201802

main86300-0D390iNSP150..RHD201709-202302

main86300-0D420iNSP151..D..B;NSP150,151..H201806-202011

main86300-0D470iNSP150..5F..GEN..R;NSP150..CVT..GEN..G201710-202009

LAOS SPEC

main86300-0D470iNSP150..5F..GEN..R;NSP150..CVT..GEN..G201710-202009

ASEAN GENERAL SPEC

main86300-0D470iNSP152201810-201910

G OPTION(TH HB)

main86300-0D470iNSP152201709-202009

G PACKAGE

main86300-0D471iNSP150..CVT..G;NSP150..5F..GEN..R202009-202109

ASEAN GENERAL SPEC

main86300-0D471iNSP150..5F..PH202009-202207

main86300-0D471iNSP150..5F..GEN..R202009-202302

LAOS SPEC

main86300-0D471iNSP150,151..GCC,VN202009-202302

G PACKAGE

main86300-0D480iNSP151..(G,R,V)..(B,F)201802-202101

main86300-0D480iNSP151..(G,V)..C;NSP151..CVT..R..C202103-202108

TYPE A:REFER ILLUST.

main86300-0D481iNSP151..C202009-202103

main86300-0D481iNSP151..5F..R..C202103-202108

TYPE B:REFER ILLUST.

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D140iNSP150..LHD..GEN;NSP151,152..(GEN,TH)..A201310-202302

main86309-0D180iNSP151..TAIW201403-201802

main86309-0D220iNSP151..D..B;NSP150,151..H201806-202011

86396NUT, ANTENNA

main86396-47010iNSP151..SA..(D,R)201310-202302

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906915

main90119-06915

90119T0130

main90119-T0130

9 parts on this diagram · 2 diagrams in section
