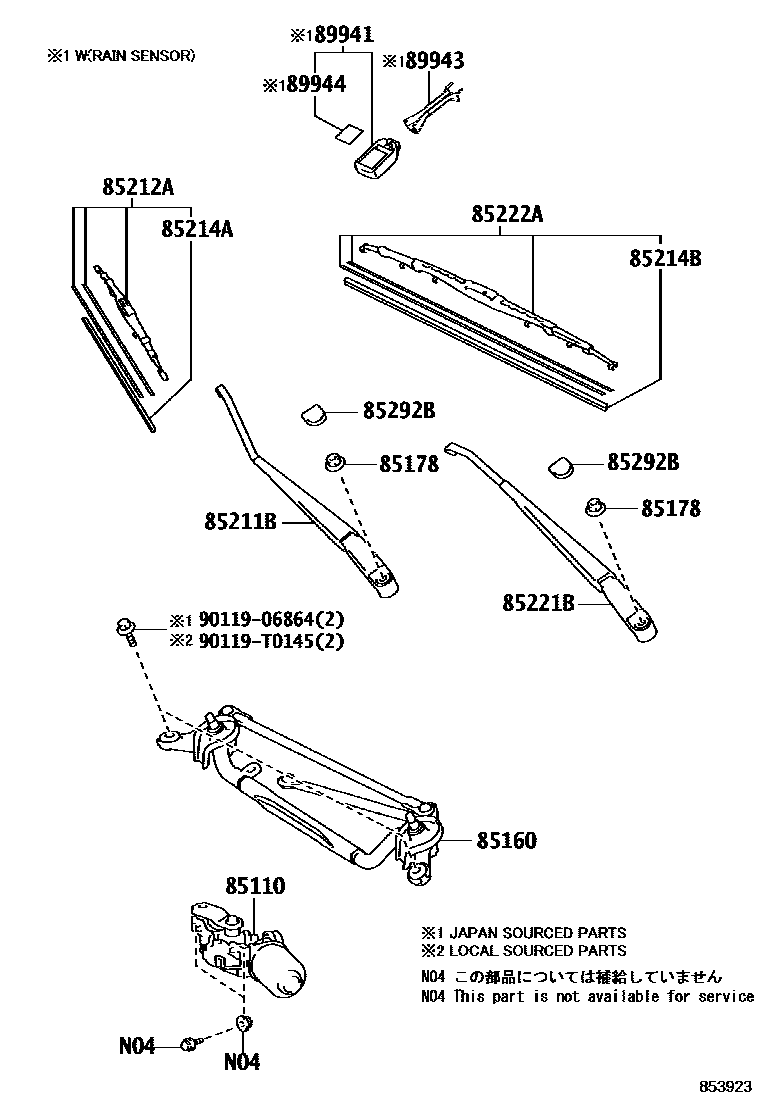

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D150iNSP151..TAIW201409-201811

sub85110-0D151

main85110-0D151iNSP151..F201812-202101

main85110-0D210iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201606

main85110-0D220iNCP151..RHD201310-201609

main85110-0D250iNSP150,151..LHD..(GCC,GEN,PH,VN)..A201607-201911

main85110-0D260iNSP150,151..CVT..PH201911-202302

main85110-0D290iNSP151..C201607-201911

main85110-0D320iNSP150,151..H201806-201910

main85110-0D340iNSP152201911-202302

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D150iNSP151..F201409-202101

main85150-0D200iNCP15#..LHD..(GCC,GEN,PH,VN)201403-202302

main85150-0D210iNSP152..HTWC;NSP151..CVT..R..(B,C);NSP151..(D,G,V)..(B,C)201310-202302

main85150-0D310iNSP150,151..H201806-201910

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iNSP150,151..H201806-201910

(J)

main90182-10006iNCP150..TAIW201409-202101

main90182-T0029iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R201310-202302

main90182-T0029iNSP150,151..H201806-201910

(L)

85211BARM, FRONT WIPER, RH

main85211-0D190iNSP151..TAIW201409-202101

main85211-0D200iNCP15#..LHD..(GCC,GEN,PH,VN)201403-202302

main85211-0D210iNSP152..HTWCB201310-202302

main85211-0D260iNSP150,151..H201806-201910

85212ABLADE, FR WIPER, RH

main85212-0D070iNSP151,152..MA,TH201404-202302

main85212-0D081iNSP150,151..LHD..(AGT,BZ,GCC,GEN,VN)201404-202302

main85212-0D150iNCP15#..LHD201403-201404

main85212-0K050iNSP151..5F..R..C201310-202108

85214ARUBBER, WIPER, RH

main85214-02070iNCP151,NSP152..RHD201310-202108

main85214-02180iNSP150..RHD201404-202302

main85214-0D121iNSP150,151..CVT..PH201404-202302

main85214-0D240iNCP15#..LHD201403-201404

85214BRUBBER, WIPER, LH

main85214-02070iNCP15#..LHD201403-201404

main85214-02180iNCP150..TAIW201404-202302

main85214-0D121iNSP151..SA201404-202302

main85214-0D240iNSP151..C201310-202108

85221BARM, FRONT WIPER, LH

main85221-0D170iNSP151..F201409-202101

main85221-0D180iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-202302

main85221-0D190iNSP151..SA201310-202302

main85221-0D210iNSP150,151..H201806-201910

85222ABLADE, FR WIPER, LH

main85222-0D071iNSP151..SA201404-202302

main85222-0D080iNSP150,151..CVT..PH201404-202302

main85222-0D150iNCP15#..LHD201403-201404

main85222-0D160iNSP151..5F..R..C201310-202108

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNSP15#..GCC,GEN,PH,TH,VN201310-202302

main85292-0D050iNSP151..TAIW201409-202101

89941SENSOR, RAIN

main89941-52010iNSP151..V..H201806-201910

89943COVER, RAIN SENSOR

main89943-47010iNSP151..V..H201806-201910

89944TAPE, RAIN SENSOR

main89944-42010iNSP151..V..H201806-201910

9011906864

main90119-06864

90119T0145

main90119-T0145

15 parts on this diagram · 2 diagrams in section
