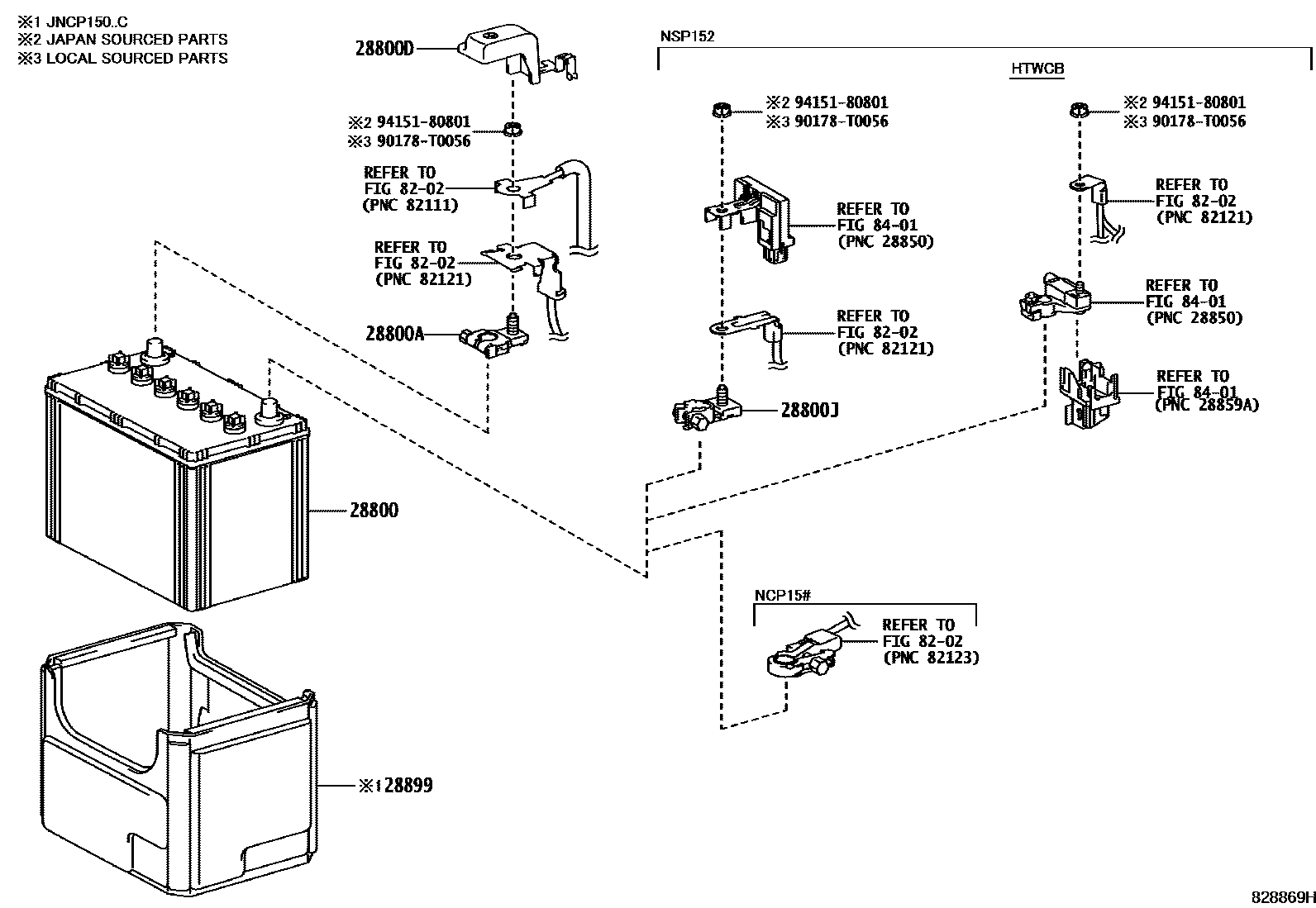

BATTERY & BATTERY CABLE

0001 1 0003 1

28800BATTERY

main28800-0M060i3NRFE..NSP152201310-201701

46B24L(S),GS

sub28800-0M061

main28800-0M061i3NRFE..NSP152201702-201708

46B24L(S),GS

main28800-0M150i1N#,2N#..NCP15#,NSP150,151..GCC,GEN,PH,VN201403-201701

34B19L(S),GS

sub28800-0M151

main28800-0M151i1NRFE,2NRFE..NSP150,151..GCC,GEN,PH,VN201702-201708

34B19L(S),GS

sub28800-0M152

main28800-0M160i1N#,2N#..NCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

34B19L(S),HITACHI

main28800-0M190i2NRFE..NSP151..F201409-202101

34B19L(S),GS

sub28800-0M191

main28800-0M200i1NZFE,2NRFE..NCP150,NSP151..TAIW201409-202101

34B19L(S),YUASA

sub28800-0M201

main28800-0M210i2NRFE..NSP151..C201403-201807

34B19L(S)

sub28800-0M211

main28800-0M211i2NRFE..NSP151..GCC201808-202211

34B19L(S)

sub28800-0M212

main28800-0M212i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C202212-202302

34B19L(S)

main28800-0Y140i1NRFE..NSP150..GCC201310-201810

46B24L(S),HITACHI

main28800-0Y150i3NRFKE..NSP152201911-202211

Q-85

sub28800-0Y151

main28800-0Y151i3NRFKE..NSP152202212-202302

Q-85

main28800-0Y161i1NRFE..NSP150..GCC202009-202211

46B24L(S)

sub28800-0Y162

main28800-0Y162i1NRFE..NSP150..GCC202212-202302

46B24L(S)

main28800-0Y280i2NRFE..NSP151..GCC201810-202009

34B19L

main28800-0Y290i1NRFE..NSP150..GCC201810-202009

46B24L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2NRFE..NSP151..C201310-202302

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-52160i1NRFBE,2NRFBE..NSP150,151201806-201910

main82821-12490i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201310-202302

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i3NRFE..NSP152201310-201910

28899INSULATOR, BATTERY

main28899-0M020i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201406-202108

main28899-21020i1NZFE..NCP150..C201403-201405

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

9 parts on this diagram · 2 diagrams in section
