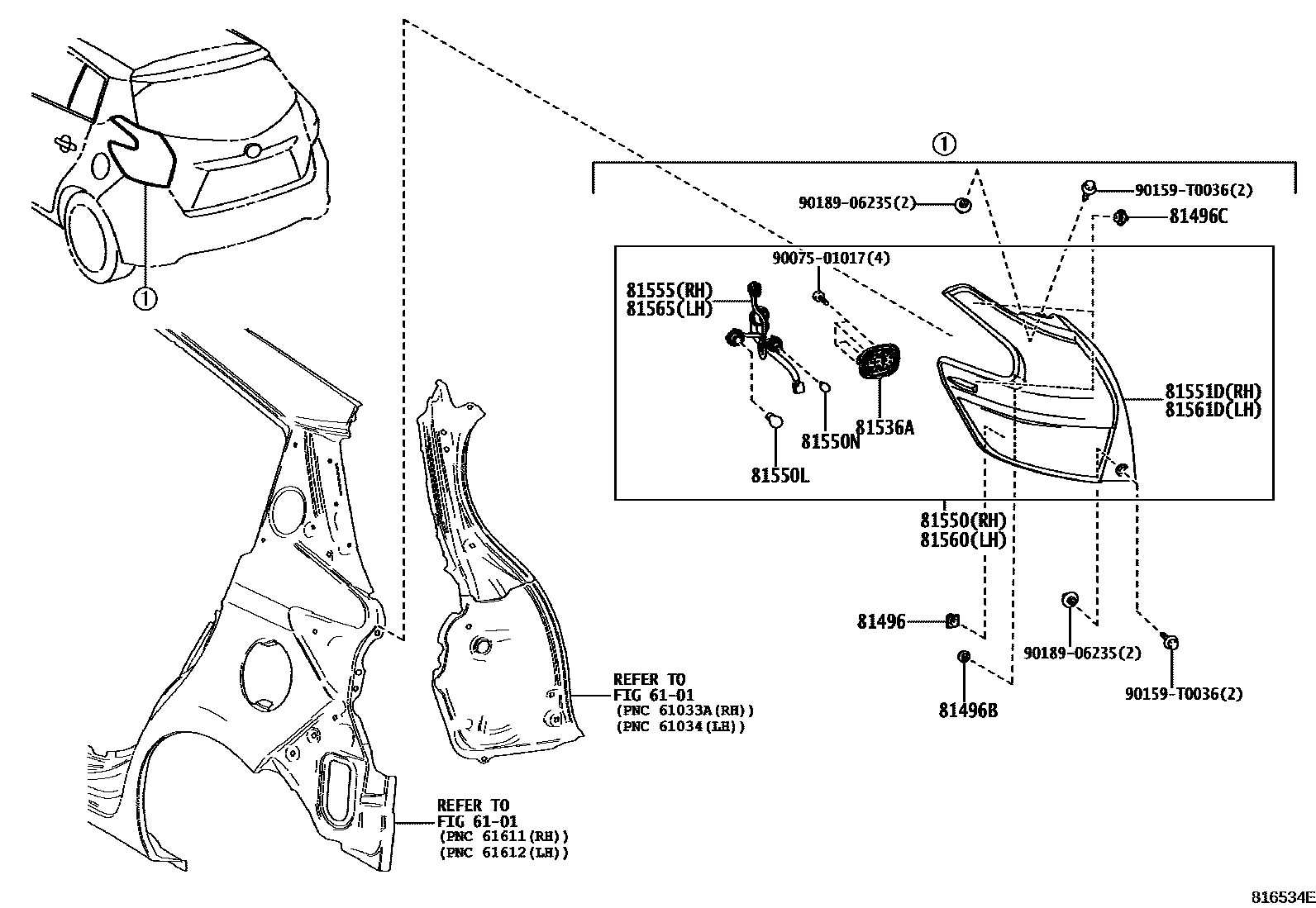

REAR COMBINATION LAMP

0001 1 0002 1 0006 1 0007 1TAIL & STOP LAMP = BULB 0009 1TAIL & STOP LAMP = BULB 0010 1TAIL & STOP LAMP = BULB 0011 1TAIL & STOP LAMP = BULB 0012 1TAIL & STOP LAMP = LED 0014 1TAIL & STOP LAMP = LED 0015 1TAIL & STOP LAMP = LED

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN¥110201310-201802

main81496-0D070iNSP151..5F..R..C201802-202108

main81496-60010iNSP150,151..H;NSP151..(G,R)..F¥100201804-202101

main81497-0D070iNSP151..PH,SA;NSP150..CVT..PH¥90201709-202302

81496BGUIDE, REAR LAMP

main81496-0D040iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main81496-0D060iNCP150,NSP151..C201403-202108

main81496-52020iNCP150,NSP151..TAIW¥70201409-202101

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0D070iNCP150..C201403-201712

main81496-60010iNCP150..TAIW¥100201409-201802

main81497-0D070iNSP15#..GCC,GEN,PH,TH,VN¥90201310-201708

81536ALED, REAR COMBINATION LAMP

main81536-0D480iNSP152201310-201708

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81550-0D480iNSP152201310-201708

main81550-0D510iNCP150,NSP151..TAIW201409-201802

main81550-0D570iNCP150,NSP151..C201403-201712

main81550-0D860iNSP150..R..A;NSP151..D..B;NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN,SA)..(D,G,R)..A201710-201911

main81550-0D861iNSP150..RHD..R;NSP150..5F..PH201912-202302

main81550-0D870iNSP152201709-201912

main81550-0D871iNSP151..(PH,SA)..(G,V)201912-202207

main81550-0D871iNSP151..V..F201912-202101

G-HI PACKAGE, WITH(*CUSA)

main81550-0D871iNSP152;NSP150,151..CVT..(GEN,VN)..G201912-202302

E-SPORT PACKAGE(GRADE MARK(S))

main81550-0D880iNSP151..R..C201802-201911

main81550-0D881iNSP151..CVT..R..C201912-202108

main81550-0D890iNSP151..(G,V)..C201802-201911

main81550-0D891iNSP151..(G,V)..C201912

main81550-0DA20iNSP151..(G,R)..F201804-201911

main81550-0DA21iNSP151..(G,R)..F201912-202101

main81550-0DD00iNSP151..(G,R,V)..B201912-202001

main81550-0DD01iNSP151..(G,R,V)..B202001-202011

main81550-0DE30iNSP151..D..B201912-202001

main81550-0DE31iNSP151..D..B202001-202011

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNSP151..(G,V)..C;NSP151..CVT..R..C¥300201802-202108

12V 21W,AMBER

main90981-15020iNCP150,NSP151..C¥350201403-201712

12V 21W,AMBER

main90981-15021iNSP151..F¥300201709-202302

12V 21W,AMBER

main90981-15028iNCP15#,NSP15#..GCC,GEN,PH,TAIW,TH,VN¥350201310-201802

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNSP152..HTWC;NSP150,151..GCC..G;NSP151..(D,G,V)..(C,H);NSP151..CVT..(IDN,VN)..R;NSP150,151..(AGT,BZ)..(D,R)¥200201310-202302

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81551-0D480iNSP152201310-201708

main81551-0D510iNCP150,NSP151..TAIW201409-201802

main81551-0D570iNCP150,NSP151..C201403-201712

main81551-0D860iNSP150..R..A;NSP151..D..B;NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN,SA)..(D,G,R)..A201710-201912

main81551-0D861iNSP151..VN..R;NSP150..GCC..G;NSP151..GCC,GEN;NSP150..LHD..(GCC,GEN)..R201912-202302

main81551-0D870iNSP151..V..F;NSP151,152..(MA,TH)..R;NSP150,151..(GEN,MA,PH,SA,VN)..(G,V)..(A,B)201709-201912

main81551-0D871iNSP150..5F..G201912-202207

main81551-0D871iNSP151..V..F201912-202101

G-HI PACKAGE, WITH(*CUSA)

main81551-0D871iNSP152;NSP150,151..CVT..(GEN,VN)..G201912-202302

E-SPORT PACKAGE(GRADE MARK(S))

main81551-0D880iNSP151..R..C201802-201912

main81551-0D881iNSP151..5F..R..C201912-202108

main81551-0D890iNSP151..(G,V)..C201802-201912

main81551-0D891iNSP151..(G,V)..C201912

main81551-0DA00iNSP151..R..H;NSP150,151..(BZ,GEN)..(D,G,R)..H201806-201910

main81551-0DA10iNSP151..V..H;NSP151..AGT..G201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

main81551-0DA20iNSP151..(G,R)..F201804-202101

main81551-0DD01iNSP151..(G,R,V)..B202001-202011

main81551-0DE31iNSP151..D..B202001-202011

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81555-0D480iNSP152201310-201708

main81555-0D510iNCP150,NSP151..TAIW201409-201802

main81555-0D570iNCP150,NSP151..C201403-201712

main81555-0D860iNSP150..CVT..PH;NSP151..SA..(D,R)201710-202302

main81555-0D880iNSP151..5F..R..C201802-202108

main81555-0D890iNSP151..(G,V)..C201802

main81555-0DA00iNSP151..R..H;NSP150,151..(BZ,GEN)..(D,G,R)..H201806-201910

main81555-0DA20iNSP151..(G,R)..F201804-201912

main81555-0DA21iNSP151..(G,R)..F201912-202101

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81560-0D480iNSP152201310-201708

main81560-0D520iNCP150,NSP151..TAIW201409-201802

main81560-0D570iNCP150,NSP151..C201403-201712

main81560-0D860iNSP150..R..A;NSP151..D..B;NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN,SA)..(D,G,R)..A201710-201911

main81560-0D861iNSP151..VN..R;NSP150..GCC..G;NSP151..GCC,GEN;NSP150..LHD..(GCC,GEN)..R201912-202302

main81560-0D870iNSP151..R..B;NSP151..V..F;NSP150,151..(GEN,MA,PH,SA,VN)..(G,V)..(A,B)201709-201912

main81560-0D871iNSP151..G..F201912-202101

G-HI PACKAGE, WITH(*CUSA)

main81560-0D871iNSP150..5F..G201912-202207

main81560-0D871iNSP152;NSP150,151..CVT..(GEN,VN)..G201912-202302

E-SPORT PACKAGE(GRADE MARK(S))

main81560-0D880iNSP151..R..C201802-201911

main81560-0D881iNSP151..5F..R..C201912-202108

main81560-0D890iNSP151..(G,V)..C201802-201911

main81560-0D891iNSP151..(G,V)..C201912

main81560-0DA20iNSP151..(G,R)..F201804-201911

main81560-0DA21iNSP151..(G,R)..F201912-202101

main81560-0DD00iNSP151..(G,R,V)..B201912-202001

main81560-0DD01iNSP151..(G,R,V)..B202001-202011

main81560-0DE30iNSP151..D..B201912-202001

main81560-0DE31iNSP151..D..B202001-202011

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81561-0D480iNSP152201310-201708

main81561-0D520iNCP150,NSP151..TAIW201409-201802

main81561-0D570iNCP150,NSP151..C201403-201712

main81561-0D860iNSP150..R..A;NSP151..D..B;NSP151..VN..R;NSP150..GCC..G;NSP151..(GCC,GEN,SA)..(D,G,R)..A201710-201912

main81561-0D861iNSP150..CVT..PH;NSP151..SA..(D,R)201912-202302

main81561-0D870iNSP151..V..F;NSP151,152..(MA,TH)..R;NSP150,151..(GEN,MA,PH,SA,VN)..(G,V)..(A,B)201709-201912

main81561-0D871iNSP151..GCC..R201912-202302

E-SPORT PACKAGE(GRADE MARK(S))

main81561-0D871iNSP151..G..F201912-202101

G-HI PACKAGE, WITH(*CUSA)

main81561-0D871iNSP150..5F..G201912-202207

main81561-0D880iNSP151..R..C201802-201912

main81561-0D881iNSP151..5F..R..C201912-202108

main81561-0D890iNSP151..(G,V)..C201802-201912

main81561-0D891iNSP151..(G,V)..C201912

main81561-0DA00iNSP151..R..H;NSP150,151..(BZ,GEN)..(D,G,R)..H201806-201910

main81561-0DA10iNSP151..(BZ,GEN)..G201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

main81561-0DA20iNSP151..(G,R)..F201804-202101

main81561-0DD01iNSP151..(G,R,V)..B202001-202011

main81561-0DE31iNSP151..D..B202001-202011

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D460iNCP15#,NSP150,151..GCC,GEN,PH,VN201403-201708

main81555-0D480iNSP152201310-201708

main81555-0D570iNCP150,NSP151..C201403-201712

main81555-0D860iNSP151..D..B201710-202302

main81555-0D880iNSP151..CVT..R..C201802-202108

main81555-0D890iNSP151..(G,V)..C201802

main81555-0DA00iNSP151..R..H;NSP150,151..(BZ,GEN)..(D,G,R)..H201806-201910

main81555-0DA20iNSP151..(G,R)..F201804-201912

main81555-0DA21iNSP151..(G,R)..F201912-202101

main81565-0D520iNCP150,NSP151..TAIW201409-201802

9007501017

main90075-01017¥60

90159T0036

main90159-T0036

9018906235

main90189-06235¥70

16 parts on this diagram · 10 diagrams in section
