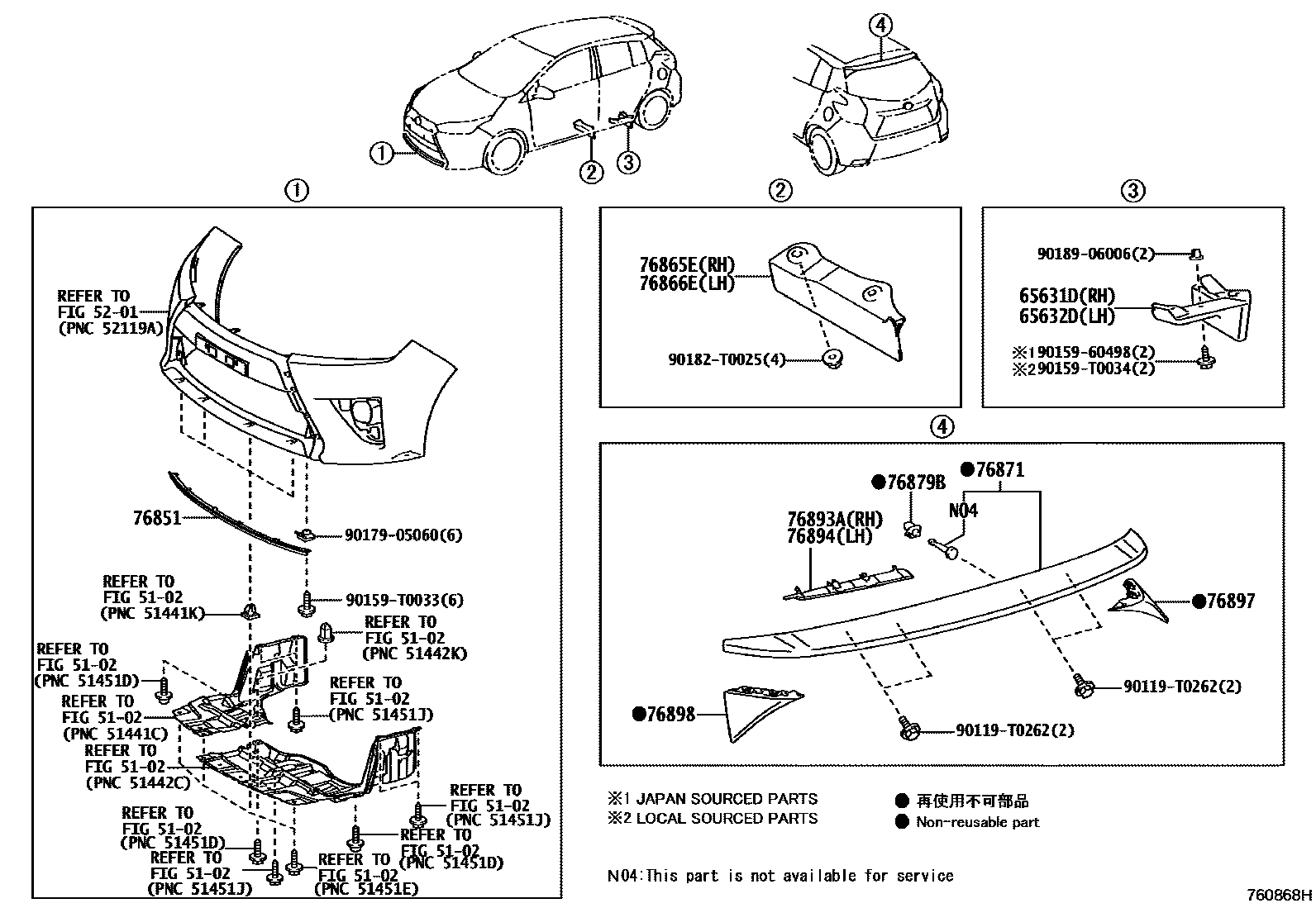

MUDGUARD & SPOILER

0001 1 0002 1 0005 1 0009 1

5102

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0D070iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main65631-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main65631-0D090iNCP150..C201403-202108

main65631-0D100iNCP150..TAIW201409-202101

main65631-0D190iNSP150,151..H201806-201910

main65631-0D200iNSP151..B201904-202011

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0D070iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201310-202302

main65632-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201708

ECO PACKAGE

main65632-0D090iNCP150..C201403-202108

main65632-0D100iNCP150..TAIW201409-202101

main65632-0D190iNSP150,151..H201806-201910

main65632-0D200iNSP151..B201904-202011

76851COVER, FRONT SPOILER

main76851-0D150iNSP152201310-201708

main76851-0D230iNSP152201709-202302

76865EPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-0D030iNSP152201709-202302

main75865-0D030iNSP152201310-201708

ECO PACKAGE

main75865-0D090iNSP150,151..H201806-201910

PARAGUAY SPEC&DUST PROTECTION DEVICE-WITH

main75865-0D090iNSP150,151..BZ..(D,G)201806-201910

PARAGUAY SPEC

76866EPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-0D030iNSP152201709-202302

main75866-0D030iNSP152201310-201708

ECO PACKAGE

main75866-0D090iNSP150,151..BZ..(D,G)201806-201910

PARAGUAY SPEC

main75866-0D090iNSP150,151..BZ..(D,G)201806-201910

PARAGUAY SPEC&DUST PROTECTION DEVICE-WITH

76871SPOILER, REAR

main76085-0D904iNSP152201507-201708

PAINT REQ.

main76085-0D907iNSP150,152..PH,TH;NSP151..(PH,SA)..(G,V)201709-202104

sub76085-0D911

main76085-0D908iNSP151..(G,R,V)..B201904-202011

sub76085-0D912

main76085-0D909iNSP150,151..H201806-201910

sub76085-0D913

main76085-0D911iNSP152202104-202302

PAINT REQ.

main76871-0D912iNSP152201310-201507

PAINT REQ.

sub76085-0D904

76879CLIP, REAR SPOILER, NO.1

main76879-0D070iNSP151..D..H;NSP150,152..BZ,TH;NSP151..(G,R,V)..(B,H)201709-202302

76879BCLIP, REAR SPOILER, NO.2

main76879-0D010iNSP152201310-201708

76893ACOVER, REAR SPOILER, RH

main76893-0D908iNSP152201310-201708

main76893-0D911iNSP150,151..H201806-201910

main76893-0D912iNSP150..CVT..PH;NSP151..(PH,SA)..(G,V)201709-202302

main76893-0D913iNSP151..(G,R,V)..B201904-202011

76894COVER, REAR SPOILER, LH

main76894-0D908iNSP152201310-201708

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-0D050iNSP152201310-201708

main76897-0D080iNSP151..(D,R)..H;NSP150,152..BZ,PH,TH;NSP151..(AGT,BZ,GEN,PH,SA)..(G,V)201709-202103

sub76897-0D081

main76897-0D081iNSP152202104-202302

main76897-0D090iNSP151..(G,R,V)..B201904-202011

sub76897-0D091

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-0D050iNSP152201310-201708

main76898-0D080iNSP151..(D,R)..H;NSP150,152..BZ,PH,TH;NSP151..(AGT,BZ,GEN,PH,SA)..(G,V)201709-202103

sub76898-0D081

main76898-0D081iNSP152202104-202302

main76898-0D090iNSP151..(G,R,V)..B201904-202011

sub76898-0D091

90119T0262

main90119-T0262

9015960498

main90159-60498

90159T0033

main90159-T0033

90159T0034

main90159-T0034

9017905060

main90179-05060

90182T0025

main90182-T0025

9018906006

main90189-06006

21 parts on this diagram · 4 diagrams in section
