E
EPC Data

REAR MOULDING

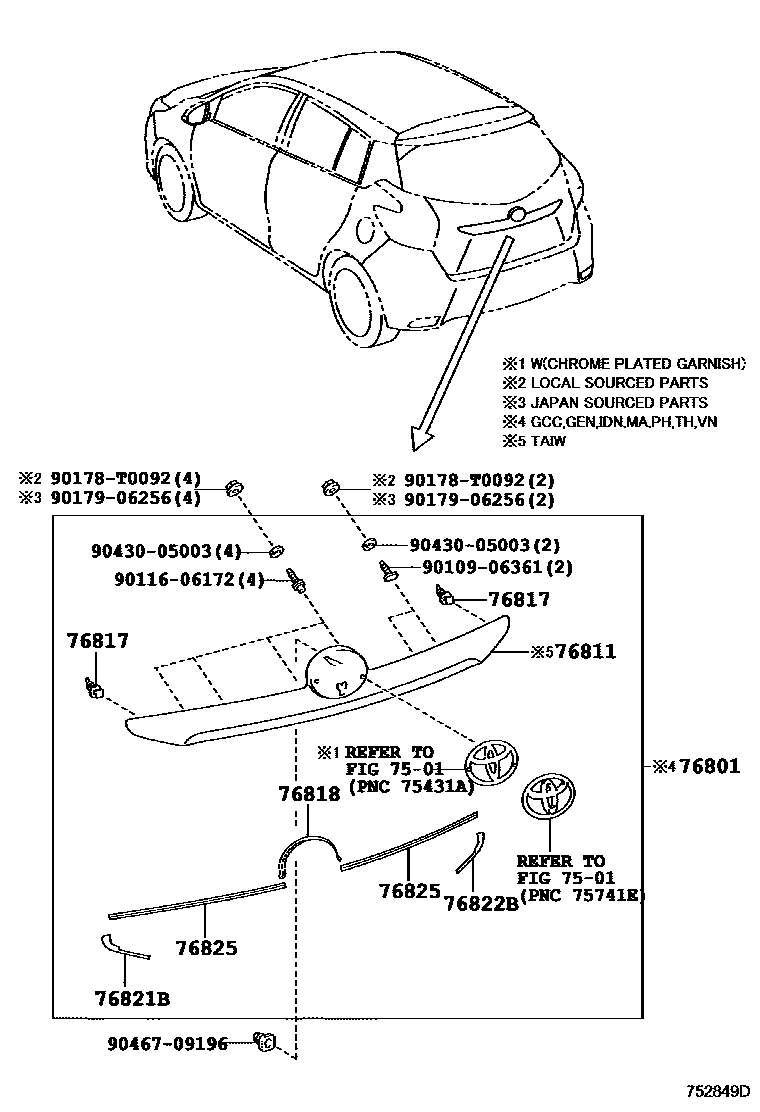

Parts diagram
7501
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-0D390i201310-201708
NO PAINT REQ.
main76801-0D420i201403-201606
PLATED
main76801-0D520i201403-201609
NO PAINT REQ.
main76801-0D530i201403-201609
PLATED
main76801-0DA40i201709-202012
NO PAINT REQ.
main76801-0DA41supersedes 76801-0DB41i202101-202207
NO PAINT REQ.
main76801-0DA60supersedes 76801-0DB50i201802
NO PAINT REQ.
main76801-0DA70i201804-202101
NO PAINT REQ.
main76801-0DA80i201806-201910
NO PAINT REQ.
main76801-0DB40i201710-202012
NO PAINT REQ.
sub76801-0DB41
main76801-0DB60i201804-202101
NO PAINT REQ.
main76801-0DB70i201806-201910
NO PAINT REQ.
main76801-0D410i201310-201708
NO PAINT REQ.,ECO PACKAGE&WIRELESS DOOR LOCK-WITHOUT
76811GARNISH, BACK DOOR, OUTSIDE
main76811-0D400i201409-201510
main76811-0D430i201510-201604
76817CLIP, BACK DOOR OUTSIDE GARNISH
main76817-07010×2i201310-201802
76818PAD, BACK DOOR OUTSIDE GARNISH
main76818-0D010i201310-201708
main76818-0D020i201409-201802
main76818-0D070i201403-201712
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
main76821-0D170i201310-201606
main76821-0D180i201409-201604
main76821-0D230i201403-201609
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
main76822-0D060i201310-201606
main76822-0D070i201409-201802
main76822-0D110i201403-201609
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
main76825-0D080×2i201310-201708
main76825-0D090×2i201409-201802
main76825-0D120×2i201403-201712
main76825-0D130i201709-202108
main76825-0D260i201804-202101
main76825-0D270i201806-201910
main76825-0D280i201802
9010906361
main90109-06361
9011606172
main90116-06172
90178T0092
main90178-T0092
9017906256
main90179-06256
9043005003
main90430-05003
9046709196
main90467-09196

14 parts on this diagram · 2 diagrams in section
