BACK DOOR PANEL & GLASS

0001 1 0004 1

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0D010iNCP15#..GCC,GEN,PH,VN201310-201708

main64818-0D020iNCP150..TAIW201409-201802

main64818-0D050iNCP150..C201403-201712

main64818-0D080iNSP150..RHD;NSP150..5F..PH201709-202302

main64818-0D090iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main64818-0D100iNSP151..F201804-202101

main64818-0D110iNSP150,151..H201806-201910

main64818-0D130iNSP151..B201904-202011

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0D010iNCP15#..GCC,GEN,PH,VN201310-201708

main64819-0D020iNCP150..TAIW201409-201802

main64819-0D040iNSP151..C201403-201712

main64819-0D070iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH,VN)..A201709-202302

main64819-0D080iNSP151..5F..R..C201802-202108

main64819-0D090iNSP151..F201804-202101

main64819-0D100iNSP150,151..H201806-201910

main64819-0D120iNSP151..B201904-202011

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D130iNCP150..TAIW201409-201802

main67005-0D180iNSP152201310-201708

main67005-0D190iNCP15#..GCC,GEN,PH,VN201403-201708

main67005-0D290iNCP150..C201403-201712

sub67005-0D190

main67005-0D460iNSP150..5F..PH201709-202207

main67005-0D480iNSP151..SA..(D,R)201710-202302

main67005-0D490iNSP151..5F..R..C201802-202108

main67005-0D500iNSP151..F201804-202101

main67005-0D510iNSP151..BZ201806-201910

main67005-0D680iNSP150..H201806-201910

main67005-0D730iNSP151..AGT..(G,V)201806-201910

main67005-0D740iNSP151..R..H;NSP151..GEN..H201806-201910

main67005-0D770iNSP152..HTWCB;NSP151..(G,R,V)..B201904-202302

main67005-0D780iNSP150..LHD..GEN..R202009-202302

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

main67005-0D780iNSP151..D..B201904-202302

main67005-0D780iNSP151..VN202009-202302

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER)

main67005-0D780iNSP151..VN202009-202302

LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

main67005-0D780iNSP151..VN202009-202302

LATIN AMERICA SPEC&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER)

main67005-0D780iNSP151..VN202009-202302

LAOS SPEC&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER)

main67005-0D780iNSP151..VN202009-202302

COSTA RICA SPEC&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

main67005-0D830iNSP151..V..C202009

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09125iNSP151..C201310-201802

main90541-09133iNSP151..F201709-202302

67751BOARD, BACK DOOR TRIM

main67750-0D120-C0iNSP15#..GCC,GEN,TH,VN201310-201708

BLACK,TRIM0#,2#

main67750-0D120-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main67750-0D130-C0iNSP151..TAIW..V201409-201802

BLACK,TRIM2#

main67750-0D130-C0iNCP150..TAIW..(G,R)201409-201802

BLACK,TRIM0#,2#

main67750-0D150-C0iNSP151..C201403-201712

BLACK,TRIM2#

main67750-0D150-C0iNCP150..(G,R)..C201403-201609

BLACK,TRIM0#,2#

main67750-0D240iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

main67750-0D250iNSP151..F201804-202101

main67750-0D260iNSP150,151..H201806-201910

main67750-0D270iNSP151..5F..R..C201802-202108

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186-C0iNCP150..C201310-201610

BLACK

sub90467-08186

main90467-08186-C3iNSP151..C201610-201802

BLACK

sub90467-08186

67754GSPACER, BACK DOOR TRIM

main67754-0D050iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main67754-0D060iNSP151..TAIW201409-201802

main67754-0D070iNSP151..C201403-201712

67881AWEATHERSTRIP, BACK DOOR

main67881-0D080iNCP15#..GCC,GEN,PH,VN201310-201708

main67881-0D110iNCP150..TAIW201409-201802

main67881-0D120iNSP151..C201403-201712

main67881-0D170iNSP150..RHD;NSP150..5F..PH201709-202302

main67881-0D180iNSP151..5F..R..C201802-202108

main67881-0D190iNSP151..F201804-202101

main67881-0D200iNSP150,151..H201806-201812

sub67881-0D201

main67881-0D201iNSP150,151..H201901-201910

68131GLASS, BACK DOOR

main68105-0D170iNCP15#..GCC,GEN,PH,VN201403-201708

sub68105-0D251

main68105-0D180iNCP150..TAIW201409-201802

main68105-0D220iNCP150..(G,V)..C201403-201712

BRUNEI SPEC

main68105-0D230iNSP151..R..C201403-201712

main68105-0D250iNSP15#..GCC,TH201310-201708

sub68105-0D251

main68105-0D350iNSP151..F201804-202101

main68105-0D360iNSP150,151..H201806-201910

sub68105-0D361

main68105-0D903iNSP151..5F..R..C201802-202109

main68105-0D904iNSP151..(G,V)..C201802

main68105-0D905iNSP150,151..GCC201710-202302

main68105-0D906iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main68105-0D907iNSP151..B201904-202011

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-0D300iNSP151..TAIW201409-201802

main56117-50140iNSP150,151..H201806-201910

main64813-0D230iNCP15#..GCC,GEN,PH,VN201310-201708

main64813-0D310iNCP150..C201403-201712

main64813-0D380iNSP150..RHD;NSP150..5F..PH201709-202302

main64813-0D390iNSP151..5F..R..C201802-202108

main64813-0D400iNSP151..F201804-202101

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main56117-0D300iNSP151..TAIW201409-201802

main64814-0D080iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main64814-0D160iNCP150..C201403-201712

68695PAD, BACK DOOR WINDOW FRAME

main75955-0D010iNCP15#..GCC,GEN,PH,VN201310-201708

main75955-0D020iNCP150..TAIW201409-201802

main75955-0D040iNSP151..C201403-201712

main75955-0D060iNSP150,151..H201806-201910

main75955-0D070iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main75955-0D080iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main75955-0D090iNSP151..F201804-202101

7401

75129CCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201310-202302

main75129-0D050iNSP151..C201403-202108

main75129-0D110iNSP150,151..H201806-201910

81952DCOVER, REAR LAMP

main81952-0D100-C0iNCP150..R..C201403-201609

BLACK,TRIM0#,2#

main81952-0D100-C0iNSP151..R..C201610-201712

BLACK,TRIM2#

9046710161

main90467-10161

90467T0021

main90467-T0021

9095006125

main90950-06125

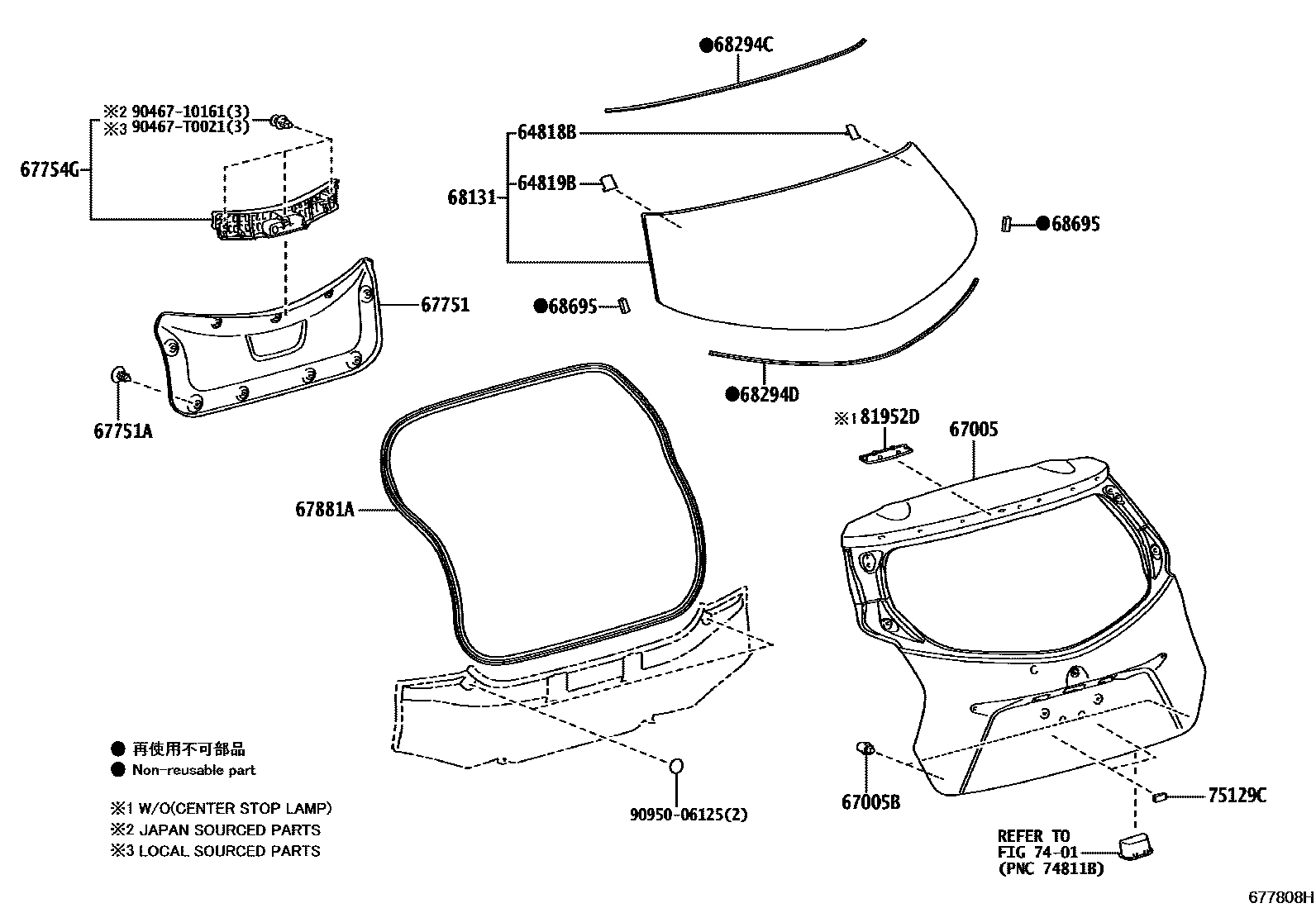

18 parts on this diagram · 2 diagrams in section
